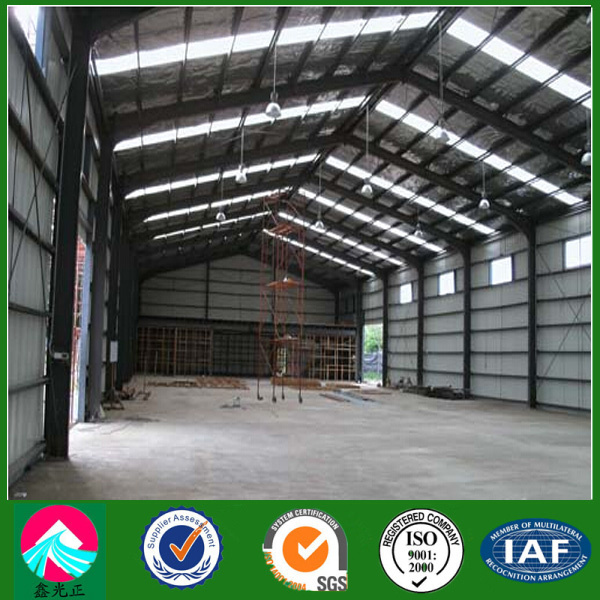

Portal Frame Light Steel Workshop, Warehouse Building (XGZ-SSB156)

Name: Portal Frame Light Steel Workshop, Warehouse Building (XGZ-SSB156)
Brand: china-manufacturer-directory.com
SKU: 698442792
Availability: InStock
Rating: 4.4 (144 reviews)

Supplier:	Qingdao Xinguangzheng Machinery Equipment Group Co., Ltd.
Price:	US $ 36/Square Meter
Min Order:	500/Square Meter
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	XGZ-SSB156
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Steel Structure Building
Certificate:	SGS, ISO, GB, BV
Lifetime:	>50 Years
Service:	Design, Engineering, Erection
Design Code:	Wind Load, Snow Load and Earthquake
Type:	Light Section Steel
Application:	Steel Structure Bridge
Forming:	Hot-Rolled Steel
Standard:	BS
Member:	Steel Column
Trademark:	Carbon Structural Steel
Connection Form:	Bolt Connection
Residential Wall Structure:	Wallboard
Type Of Steel For Building Structure:	High-Strength Steel
Carbon Structural Steel:	Q235, Q245

Product Description

MIAN STEEL FRAME PART
Steel column and beam:Q345B welded H section steel with two coats of red lead paint
Cran beam:Q345B welded H section steel with two coats of red lead paint
Endwall column:Q235B welded H section steel with two coats of red lead paint
Parapet wall column:Q345b welded H section steel with two coats of red lead paint
Purlin:Q235 galvanized C section steel.

Protection Part
Exterior roof sheet:V-760type ,1.2mm / V-900 type, 1.0mm / V-780type, 1.2mm
Roof panel insulation layer:75mm fiber galss sandwich panel with aluminum foil paper
Interior roof:coated wire mesh
Skylight sheet:V-760 type ,1.2mm / V-900 type, 1.0mm / V-780type, 1.2mm
Exterior wall sheet:V-780 type,0.5mm dip aluminum-zinc steel sheet
Roof ridge tile:0.4mm galvanized steel sheet

WINDOW AND DOOR:
Door:EPS sandwich panel sliding door
Window:aluminum alloy window

DETAILED MATERIAL LIST FOR STEEL STRUCTURE WORKSHOP,WAREHOUSE BUILDING

Name	Specification
Length	Single slope, double slope, muti slope
Width	Single span, double-span, Multi-span
Height	single floor, double floors
Column	Q235, Q345 welding H section steel
Beam	Q235, Q345 welding H section steel
Purlin	Q235 C channel or Z channel
Knee brace	Q235 angle steel
Vertical and transversal support	Q235 angle steel, round bar or steel pipe
Tie bar	Q235 steel pipe
Brace	Q235 round bar
Cladding system	sandwich panels (EPS, PU, Fiber glass wool etc.) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze.
Partition wall	sandwich panels (EPS, PU, Fiber glass wool etc.)
Ventilation:	ventilator
Door	sandwich panel sliding door or roller door
Gutter	stainless steel or color steel sheet
Rainspout:	PVC
Live load on roof	In 120kg/Sqm (Color steel panel surrounded)
Wind resistance grade	12
Earthquake-resistance	8degree
Structure usage	Up to 50 years

ALL ACCESSORIES:
Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc

SURFACE:
Two lays of Anti-Rust Paint

PACKING:
Main steel frame without packing load in 40'FT, roof and wall panel load in 40'HQ
You ONLY need you to provide us with the following information:

DESIGN PARAMETERS
1) Live load on roof (KN/M2)
2) Wind speed (KM/H)
3) Snow load (KG/M2) - If Applicable
4) Earthquake load - If Applicable
5) Style of Doors and Windows
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure
7) Size: Width X length X eave height, roof slope
8) Or your idea!

HOPE TO HEARING FROM YOU.

Qingdao Xinguangzheng Group

BASIC INFO

Covers an area of 133, 000 square meters, was founded in 1996, specialized in various of steel structure building, jointly design, manufacture, export and erection of Industrial, Commercial and residential and Agriculture uses. As one of the best company in North China, had aleady exported to more than 90 countries with government and privite projects.

SERVICE

Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer. No matter how big or small your requirement we will do our best to meet your demand. One stop service from design, manufacture, deliver to installation and after-service.

QUALITY

Raw material reserves: Steel bought from major steel mill

Full and advanced equipment: CNC laser cutting machine, vertical machining centers, CNC bending machines, Nc drilling machine CNC continuous mode of production lines etc

Strictly quality control: Manufacture strictly according to drawings, Inspection every link, Pre assembled before delivery.

DESIGN & DELIVERY & PACKING

Sales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you.

With more than 3000tons capacity each month, Quotation+Manufacture time + deliver time+installation time will better than local manufacturer.

Packed in container by sea or by train, with stable package for no damage during transpotation.

CERTIFICATE

We have ISO9001: 2008 certificate, Aisa Inspection, SGS Inspection and other third party Inspection acception.
