Guangzhou Yulian Electronic Technology Co., Ltd. >> POS Dual Screen Touch Terminals /Desktop Touch Computer

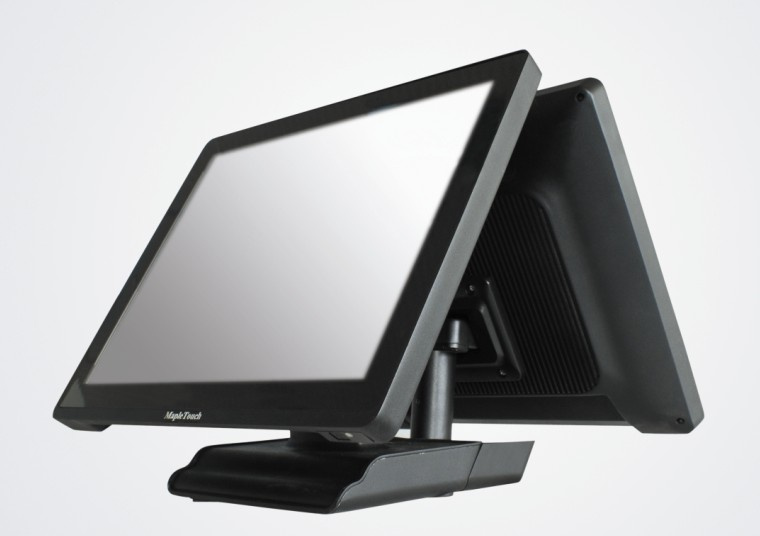

POS Dual Screen Touch Terminals /Desktop Touch Computer

Supplier:	Guangzhou Yulian Electronic Technology Co., Ltd.
Price:	US $ 450/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	pos156ud
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Housing Material:	Rugged Aluminium
Touch Panel:	Muti-Touch Capacitive
Expand Function:	Printer,Cash Drawer ,VFD
Color:	Black, Golden
Certification:	CE, FCC, RoHS, CB,Ustc
Printer:	Thermal
Touch Screen:	Touch Screen
System:	Windows
Type:	Hand Held
CPU:	Intel

Product Description

15" all in one touch pos systems, 1037U 1.8g duo core CPU, 2G Ram

Screen size

Resolution

1024×768

Brightness

250cd/M 2

color resolution

16.7M

contrast ratio

600:1

touch screen

Muti-touch Projected Capacitive touchscreen support 10point/ MapleTouch-J5wire resistive touch screen(single point 35,000,000times)(USB/RS232 touch controller interface optional)

Motherboard

Mini-ITX MP-1037U

CPU

Intel® 1037U Dual Core CPU

Ram

2GB DDR3-1333 SDRAM

Hard disk

1×2.5 " SATA II SSD-32G/ HDD-320G

Chipset

Intel® NM70 Express Chipset

SATA

1×SATA II 3GB/s HDD/SDD

1×SATA III 6GB/s HDD/SDD

1×M-SATA

LAN

1×realtek RTL8111DL (100/1000Mbps)

Audio

Realtek ALC887 HD Audio Codec integrated

I/O

RS232

2×DB-9 RP-SMA MaleRS232 signal interface (can add 2 more )

USB

4×USB 2.0

Audio

1×DB-15 Female head VGA interface

1×LVDS 24-bit/18bit LVDS output

Audio interface

1×Audio Out 1×MIC In

LPT

1×DB-25-pin Female head VGA interface

PS2

1×6-pin PS2 (Keyboard/mouse)

Expansion bus

1× PCI Express x1

1× Mini PCIE

GPIO

1× GPIO (standard no this interface ,but can customize)

Operating temperature

-10~60

Storage temperature

-30~80

humidity

20~85%

earthquake-proof

3 Grms/5~450Hz

Certification

CCC\CB\CE\FCC\ROHS

power input

100-240VAC ~ 50~60HZ 1.5A

power output

12VDC 5A MAX

Material

Alloy\outlet board is stainless steel

Install way

Panel,frame,wall-mounted,desktop,VESA

N.W/G.W

5.65KG/3.9KG

Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
