Guangzhou Yulian Electronic Technology Co., Ltd. >> POS Touch Screen Computers (MP156, MP176)

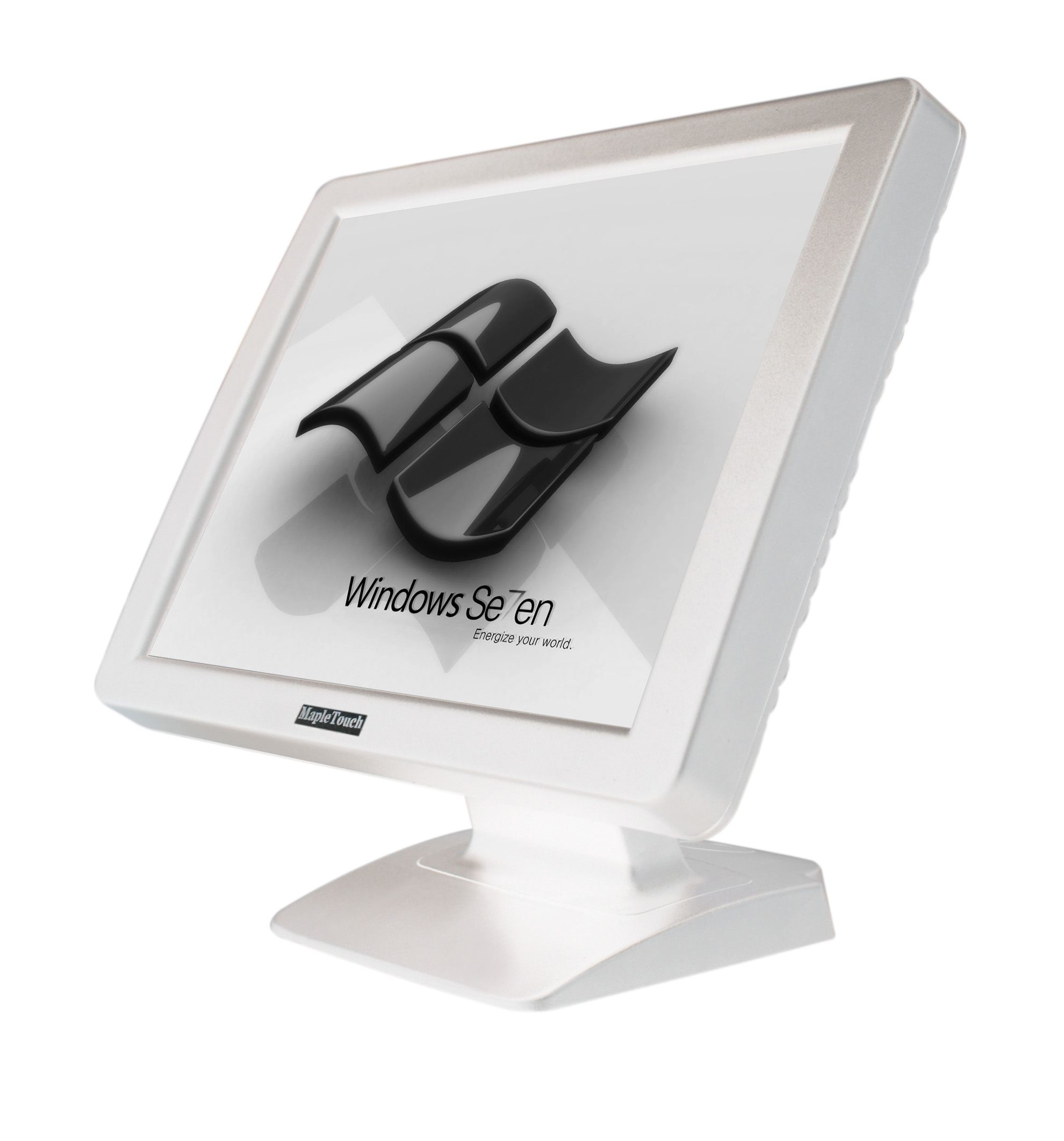

POS Touch Screen Computers (MP156, MP176)

Name: POS Touch Screen Computers (MP156, MP176)
Brand: China-Manufacturer-Directory.com
SKU: 677136785
Availability: InStock
Rating: 4.7 (40 reviews)

Supplier:	Guangzhou Yulian Electronic Technology Co., Ltd.
Price:	US $ 480/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	MP156, MP176
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Display Area15
Display Resolution1280*1024
Brightness250CD/M2
Color Resolution16.7M
Contrast Ratio1000: 1
Touch ScreenMapleTouch-J 5 war of resistance touch screen(Single point 35, 000, 000 times, USB/RS232 Optional)
Maple Touch Capacitive Screen(5-point-touch at same time under Windows 7/8)
MotherboardIntel 1037U
CPUIntel Cerelon dual core 1.8G
RAM2xDDR3 1066 MHz SO-DIMM Max to 4GB
Memory1*2.5 " SATA II HDD-320G/SSD-32G
ChipsIntel NM10 Express Chipset
BIOSAMI 16MB Flash ROM
H/W MonitorCPU voltage/ CPU & System Temperatre
Expansion1X Mini Pcle, 1X Pele X1
IO
IO InterfaceDC 12V Input
1*VGA
4*COM Port (4*RS232)
1*LAN
1*Audio
7*USB
1*LPT
1*PS2 (KB/MS)
Expand SlotPCI-Express X1 Slot
Mini-ITX Mainboard
Circumstance Condition
Operation Temperature-10~60
Store Temperature-30~80
Operation Humidity20~85%
Shockproof performance3 Grms/5~450Hz
HardnessOperating 20G(11ms), Non-operating 80G with HDD
Operating 80G(11ms), Non-operating 320G with SSD

Product Certification
Power Supply
Input100-240VAC ~ 50~60Hz 1.5A
Output12VDC 5A MAX (dual screen 7A)
Outline Dimensions
MaterialMetal ( Aluminum )
InstallationWall mounting(VESA holes), Desktop
Net weight/Gross Weight
Outline Dimension(LWH)403*2330*72MM

Display Area	15
Display Resolution	1280*1024
Brightness	250cd/M 2
Color Resolution	16.7M
Contrast Ratio	1000:1
Touch Screen	MapleTouch-J 5 war of resistance touch screen(Single point 35,000,000 times\USB/RS232 Optional)
	Maple Touch Capacitive Screen(5-point-touch at same time under Windows 7/8)
Motherboard	Intel 1037U
CPU	Intel Cerelon dual core 1.8G
RAM	2xDDR3 1066 MHz SO-DIMM Max to 4GB
Memory	1*2.5 " SATA II HDD-320G/SSD-32G
Chips	Intel NM10 Express Chipset
BIOS	AMI 16Mb Flash ROM
H/W Monitor	CPU voltage/ CPU & System Temperatre
Expansion	1x Mini Pcle,1x Pele x1
IO
IO Interface	DC 12V Input
	1*VGA
	4COM Port (4RS232)
	1*LAN
	1*Audio
	7*usb
	1*LPT
	1*PS2 (KB/MS)
Expand Slot	PCI-Express x1 Slot
	Mini-ITX Mainboard
Circumstance Condition
Operation Temperature	-10~60
Store Temperature	-30~80
Operation Humidity	20~85%
Shockproof performance	3 Grms/5~450Hz
Hardness	Operating 20G(11ms),Non-operating 80G with HDD
	Operating 80G(11ms),Non-operating 320G with SSD

Product Certification
Power Supply
Input	100-240VAC ~ 50~60HZ 1.5A
Output	12VDC 5A MAX (dual screen 7A)
Outline Dimensions
Material	Metal ( Aluminum )
Installation	Wall mounting(VESA holes)\Desktop
Net weight/Gross Weight
Outline Dimension(LWH)	403233072MM

Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
