Product Specifications
| Prod Model: |
WI3006P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RoHS: |
100% |
| Certificate: |
ISO9001, ISO14001, Ts16949 |
| Resistance: |
Variable Resistor |
| Type: |
Rotary Potentiometer |
| Installation: |
DIP Resistor |
| Function For Resistance: |
Load Resistor |
| Material: |
Carbon Film Resistor |
| Package Type: |
Carton, Box |
Product Description
Potentiometer, Precision potentiometer, rotary potentiometers, Trimmer Rotary potentiometer, potentiometers, audio potentiometers
Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

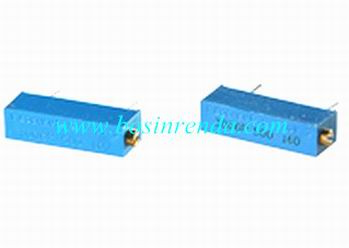

This trimmer potentiometer mainly use on instruments, testers and audio equipments.
Please check below specification.
|
1.Electrical Characteristics for trimmer potentiometer |
1.1 Range of nominal resistance: 10Ω~5MΩ
1.2 Total Resistance Tolerance: ± 10%
1.3 Terminal resistance: ≤±1%R or 2Ω
1.4 Contact resistance variation : ≤±1%R or 3Ω
1.5 Insulation resistance: ≥ 1GΩ (100V AC)
1.6 Withstand voltage: 500V DC or AC peak value
1.7 Effective electrical travel: ≥200° |
|
2.Mechanical Characteristics |
2.1 Total Rotational Angle: 260°±10°
2.2 Rotational Stopper Strength: ≥50mN.m
2.3 Rotational Torque: ≤20mN.m |
|
3.Endurance Characteristics |
3.1 Rated power: 0.25W ( 300V max)
3.2 Temperature Range:-55°C~+125°C
3.3 Soldering conditions: 260°C ±5°C,5Sec.
3.4 Electrical endurance (0.25W, 1000h): ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
3.5 Mechanical endurance (200 cycles): ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
3.6 Steady damp heat (IEC68-2-3, Ca, 96h):ΔR≤± (5%R+0.1Ω),
Insulation Resistance≥100MΩ
3.7 Temperature Coefficient:±250ppm/°C |
