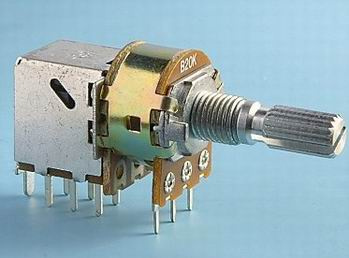

Potentiometer with Push Pull Switch (RP1704)

Name: Potentiometer with Push Pull Switch (RP1704)
Brand: China-Manufacturer-Directory.com
SKU: 720900225
Availability: InStock
Rating: 4.3 (74 reviews)

Supplier:	Bosin Holdings Limited
Price:	US $ 0.1/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	RP1704
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Resistance:	Variable Resistor
Type:	Rotary Potentiometer
Installation:	DIP Resistor
Function For Resistance:	Load Resistor
Material:	Carbon Film Resistor
Package Type:	Throught Hole

Product Description

Potentiometer, rotary potentiometers, Rotary potentiometer with pull-push switch, metal shaft potentiometers, audio potentiometers

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

Please check below specification.

1.Mechanical characteristics for rotary potentiometer
1.1 Total Rotational Angle:	300°±10°
1.2 Rotational Torque:	20~300 gf.cm
1.3 Stopper Strength:	5.0Kgf.cm Max
1.4 Push-Pull Strength:	Pull: 8Kgf Max; Push: 6Kgf Max
1.5 Residual resistance:	Max 10 ohm
2.Electrical characteristics
2.1 Total Resistance:	500Ω~1MΩ
2.2 Resistance Tolerance:	±20%
2.3 Resistance Taper:	A,B,C,D
2.4 Max. operating Voltage:	AC 200V
2.5 Rated Power:	0.2W
2.6 Rotational Noise:	less than 47 MV
2.7 Insulation Resistance:	100M ohm or more
2.8 Withstand Voltage:	1 minute at AC 300V
2.9 Residual Resistance:	50Ω Max
3.0 Gang error:	40db~0db±3db
3.Durability
3.1 Rotational Life:	15,000 Cycles Min.
3.2 Cold Test:	_20±2°C for 96 hours
3.3 Dry Heat:	70±2°C for 96 hours
3.4 Temperature Cycle:	_20~+70°C, 5 cycles
3.5 Soldering Condition:	Wave Soldering: 260°C±5°C,5 Sec. Max
	Manual Soldering: 350°C±10°C 3 Sec Max.
4. Push Switch Characteristics
4.1 Rated Power:	50V AC 0.3A
4.2 Switch Travel:	3.2mm
4.3 Switch working torque:	400±100 gf.cm Max

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
