Product Specifications
| Prod Model: |
RV17P2S-XD1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
17mm |
| Type: |
Rotary Potentiometer |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Carbon Film Resistor |
| Resistance: |
Variable Resistor |
Product Description

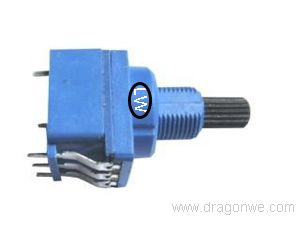

17mm rotary potentiometer with metal shaft and with switch,
Resistance range: 1K-1MΩ
Tolerance of resistance: ± 20%
Resistance taper: A B
Power rating: 0.2W
Terminal resistance: 20Ω Max.
Rotational noise: ≤ 100mv
Insulated resistance: More than 100M at DC 250V
Withstanding Voltage: For 1 minute or more at DC 500V
Total Rotational Angle: 270± 5°
Operating force: 10-100gf. Cm
Click position; 0 detent/16 detent.
Click torque: 30~100gf. Cm
Pull-Push Strength: 3.5Kgf. Cm min
Shaft Stopper Strength: 8Kgf min
Switch Rating: 250VAC 10A
Switch Action: 50~300gf. Cm
Switch working Angle: ≤ 50°
Rotational life: 15000 cycles.
Dragonwell Eletronics Limited company is a professional manufacturer producing Potentiometers Switches and Encoders. Up till now, our company, which has profound production experience, we use major raw matreials directly import from Japan, Taiwan, Europe Country. After years of hard work, has set up a complete system for development manufacture, assembly, sale, and after-sale service. The quality of all our products is complied with Japan'S JIS and international standards.
With the continuous products development, the new products are widely applicable in the field of telecommunication, video, game, medical and other electronic products. The products are exported to Europe, and most of South East Asia countries.
For cooperating with the production requirements of customer, welcome offer drawing and samples to develop new products together, Also welcome to requiring any question of products through our website or telephone.
