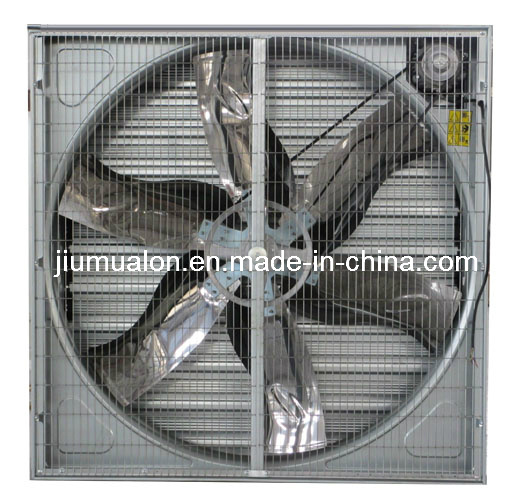

Fan size: 1000mm× 1000mm× 450mm
Frame: Hot galvanized sheet, high anti-corrosive durability, sheet thickness0.8mm, zinkthickness 180g/sq. M
Motor: Chinese motor, Other motor accordingly,
Motor technical data: 0.4 Kw 380 V 50 Hz three phase
Motor RPM: 1440r/min
Noise: Not less than64dB
Blade diameter: φ 91 0mm
Blade No.: 6
Blade material: German-imported Mirror face stainless steel, avoid dust accumulation
Blade RPM: 566r/min
Blade instruction: Weight difference between blades is less than 0.5k, blades will go through
Balance test after assembled which can assure steady running and even airflow.
Shutter: Centrifugal system opening, spring close system, shutter can be opened at 90 degree.
Shutter No.: 8
Thickness of upper frame: 1.5mm, others 0.8 mm
Belt: Mistuboshi belt,
Housing: Galvanized
Airflow: 20800m3/h
| Model | Diameter blade/mm | Frequency/ HZ | Air volume/ m3/h | Power/kw | Noise(db) | Voltage/v | Size (mm) | Motor Speed(r/min) |
| SHM-1000 | 910(36in) | 50 | 20800 | 0.4 | ≤ 64 | 380 or 220 | 1000x1000x450 |
≥ 1400
|
