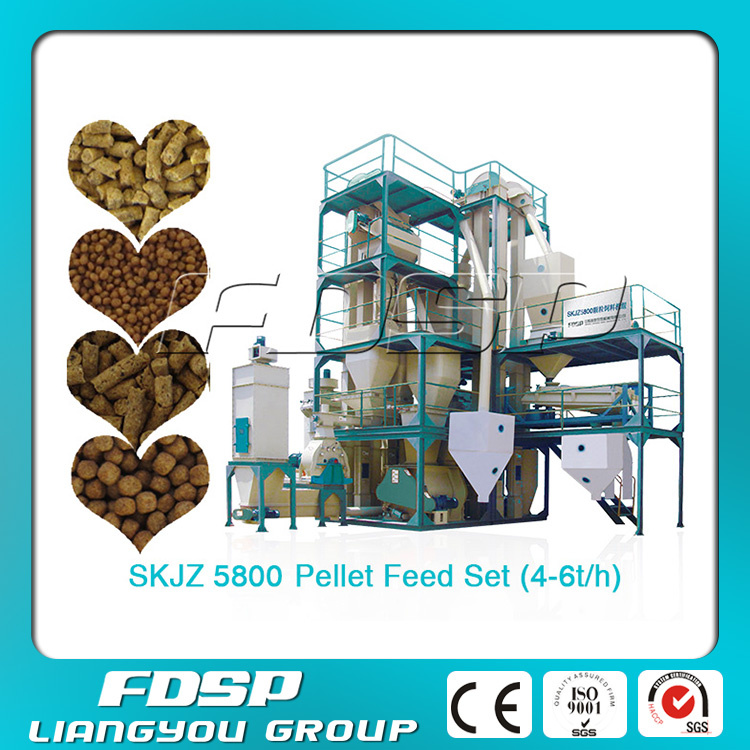

Poultry Feed Complete Poultry Feed Production Line for Sale (SKJZ5800)
Product Specifications
| Prod Model: |
SKJZ5800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
4-6t/H |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Conditioner: |
Stainless Steel |
| Pellet Mill: |
Szlh350 |
| Pelleted Feed Size: |
1.5-18mm |
| Shaping Rate: |
97% |
| Bearing Brand: |
SKF/NSK |
| Warranty: |
1 Year |
| Processing Raw Material: |
Maize,Corn,Wheat,Grain,Soyabean,etc |
| Voltage: |
380V-440V 50Hz/60Hz |
| Processing Object: |
Animal-Derived Feed |
| Processing Technics: |
Crushing-before-Mixing |
| Type: |
Poultry Feed Production Line |
| Applicable Materials Shape: |
Granular and Powder |
Product Description
This line is for production of poultry feed like chicken, duck, geese feed, but
also livestock feed such as cattle, cow, horse, rabbit, pig feed etc, it is
applicable for various small poultry farms, feed factory or home use. Specifications1.Applicable for Medium and Small Sized Feed Mills and Breeding Farms;
2.Capacity: 4-5t/hFeature of SKJZ5800 Poultry Feed Production Line1.Advanced technology
With reasonable technology, high capacity and low energy consumption. It can produce 4000-12000 tons mash and pellet feed per shift annually;
2.Modular Structure
The plant is compact, occupies less floor space and has low requirement on the mill tower, and needs low investment in civil works. The containerized modular structure is convenient for assembly and disassembly, facilitates the shipment and installation;
3.Automatic and Centralized control
The analogue panel is adopted. All machines can be interlocked and safety, alarm device is available. The operation is simple and convenient;
4.Wide applicable scope
The plant can produce both poultry & livestock feed and fish feed and is applicable for medium and small sized feed mills and breeding farms.Technical parameters:
Model |
Total Power
(kw) |
Output
(t/h) |
Floor Area(m)
(L*W*H) |
Main Machines
model |
SKJZ1800 |
55 |
0.5-2 |
6*4*8 |
SFSP50.SLHY0.4,SZLH25.SNSZ80 |
SKJZ3000 |
80 |
1-3 |
8*6*8 |
SFSP568 (22kw),
SLHY0.6,SZLH25,SNSZ80 |
SKJZ3800 |
136 |
2-4 |
8.5*7.5*11 |
SFSP568 (30kw),
SLHY1,SZLH32,SKLN2.5,
SSLG15*80,SFJH80*2C |
SKJZ4800 |
145 |
3-5 |
9.5*8.5*12 |
SFSP568( 37kw), SHSJ1
SZLH320( 37kw), SKLN2.5
SSLG15*100, SFJH80*2C |
SKJZ5800 |
191 |
4-5 |
10 × 9× 13 |
SFSP668( 55kw),SHSJ1,
SZLH350( 55kw),SKLN2.5,
SSLG15×100,SFJH100×2C |
Note: We can equip the suitable main machine according to customer's requirements and can specially design the size of a factory and technical format, etc. |
Besides the small modual feed pellet plant, we can customize large feed pellet plant .All the main machines and equipment are manufactured by our factory.
Main procedures of modular poultry& livestock feed production line
1.Grinding:
Before making pellet, the raw materials should be grinded. The hammer mill can grind the raw material ingredients to the required size.
2. Mixing:
Mixing is considered to be one of the essential operations in feed pellet processing, using mixer to mix the grinded raw materials. There are three types of our mixer: single shaft mixer, double shaft paddle mixer and ribbon mixer. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.
3.Pelleting:
Feed pellet mill is the main equipment of the whole production line. Our pellet mills are equipped with full stainless steel feeder and conditioner to make high quality pellet. We can supply chicken feed pellet mill, duck feed pellet mill, cattle feed pellet mill, pig feed pellet mill and other poultry and livestock pellet machinery.
4.Cooling:
The feed pellets pressed out by the feed pellet mill are hot and moist, they can't be crushed, screened or packed immediately. The counter flow cooler is adopted to cool the pellets with high temperature and moisture.
5.Crumbling:
Crumbling section is optional. It is special purpose equipment to crumble big pellets into small pellets.
6.Sieving:
The crushed feed pellets are with different sizes, and there may be some powder. The screener can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.
7. Packing:
The feed pellets will be packed for transporting, storing or selling by packing machine.

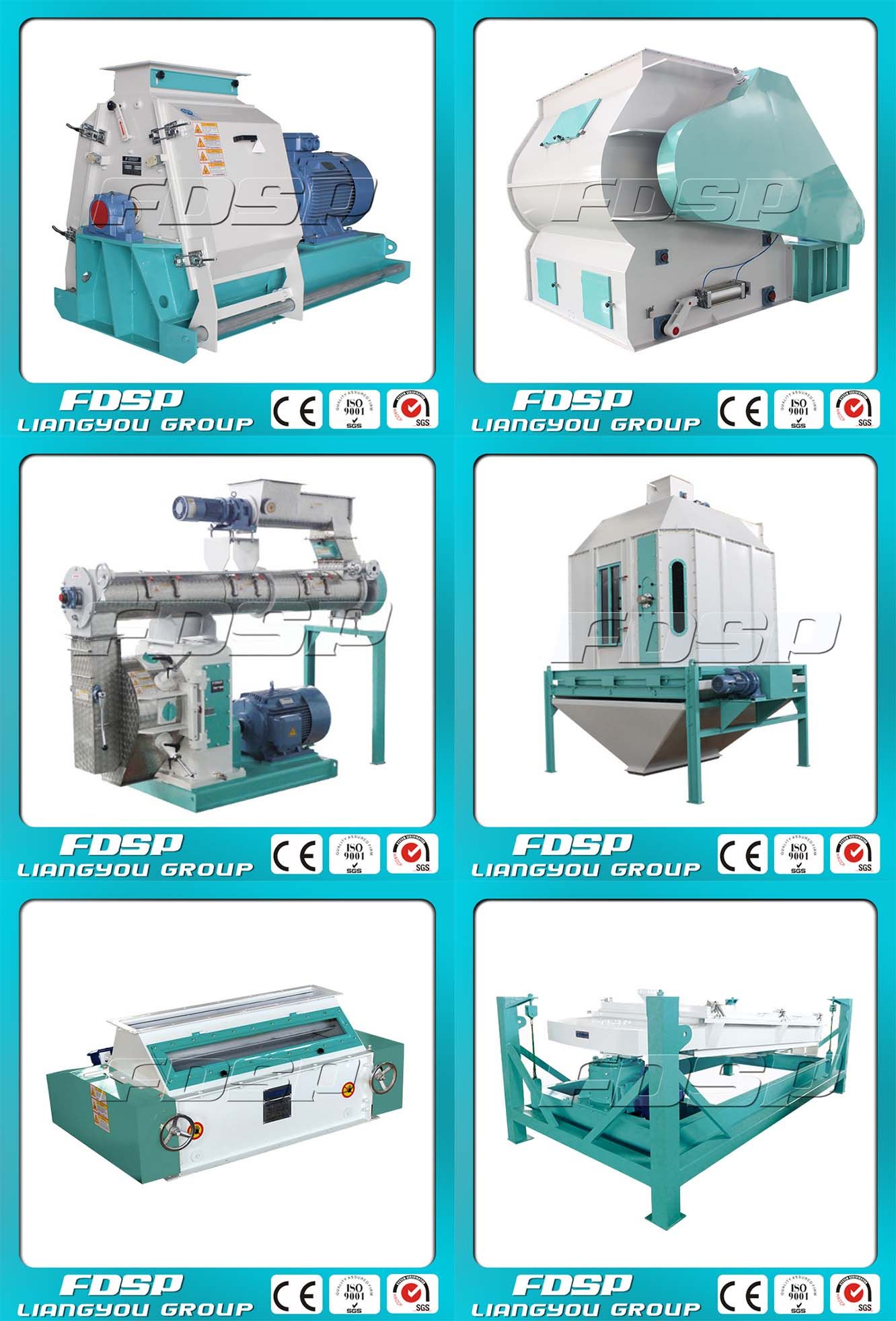

Main Equipment Related to Complete Feed Pellet Production Line:
Hammer Mill - Mixer - Pellet Mill - Cooler- Crumbler - Rotary Screener - Bagging Scale - Control Center

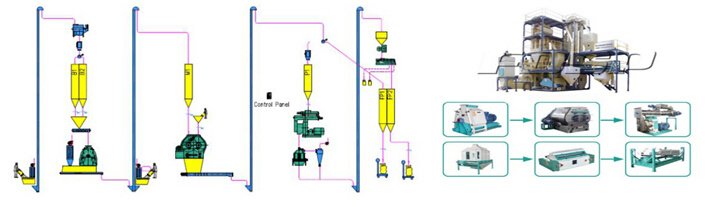

Flow diagram:

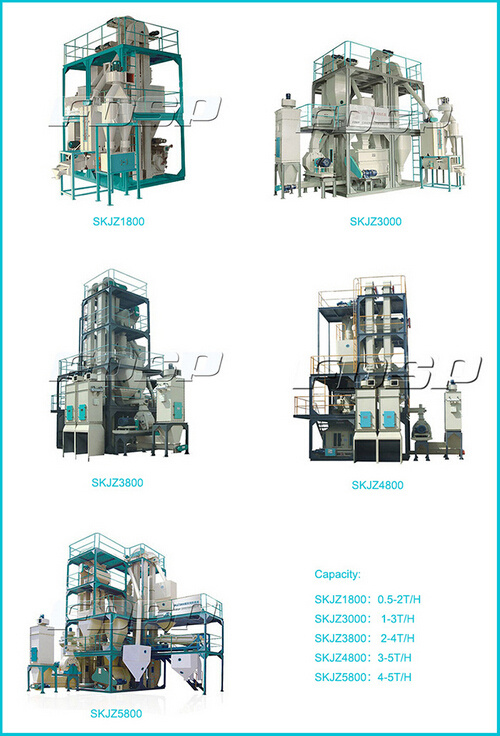

Other SKJZ Series modular feed pellet production line:
