Product Specifications
Product Description
Feature & Function:

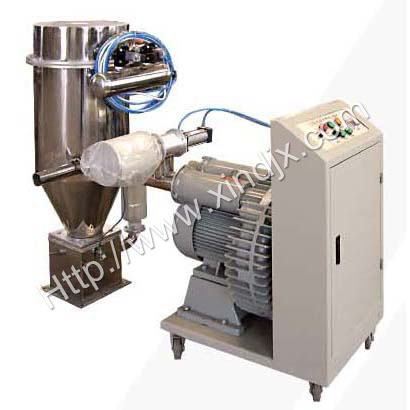

This machine can be used for all kinds of extruders. It can automatically convey plastic power into the hopper of extruder by means of a controller of material level.
It can save the labor and realize the safety and reliability.
| Model and specification | ZJF100 | ZJF300 | ZJF700 |
| Registered transfer capacity(kg/h) | 100 | 300 | 700 |
| Hopper vacuum(kg) | 100 | 120 | 150 |
| Spring diameter(mm) | Φ30 | Φ36 | Φ59 |
| Max transfer capacity(kg/h) | 200 | 450 | 1000 |
| Length transfer pipe and spring(m) | 3 | 3-5 | 3-5 |
| Storage tank(kg) | 120 | 150 | 200 |
| Motor power(kw) | 1.1 | 1.1 | 1.2 |
| Diamension(mm) | Φ650×980 | Φ650χ1162 | Φ820χ1550 |
| | 850χ620χ740 | 905χ655χ840 | 950χ950χ960 |
| Weight(kg) | 120 | 150 | 250 |
ZHANGJIAGANG XINDONG MACHINERY Co., Ltd is a high-tech entrreprise that specialized in researching, developing and manufacturing plastic extrusion equipments, various of pipes productiong line. It bears complete and advanced systems in developing, manufacturing and testing etc.
XINDONG MACHINERY COMPANY always insists on its business polity: " quality is life, science and technology is leading force, and customers' satisfaction is ultimate target", making effort to promote the technology and build up the world's first class brand name. The high quality single screw extrusion technology, newly parallel twin-screw extrusion technology; PVC PP-R PE(large diameter) pipe extrusion technology; HDPE winding forming technology; PVC PE double-wall corrugated pipe technology; PVC plastic sheet extrusion technology; PVC mixing system etc are all widely welcomed and accepted by domestic and overseas customer.
We consider " Exloring the highest technology in machinery industory; Creating a brilliant future in this field" as our company police. And we deeply believe that the tomorrow of XINDONG machinery will be much more brilliant.
