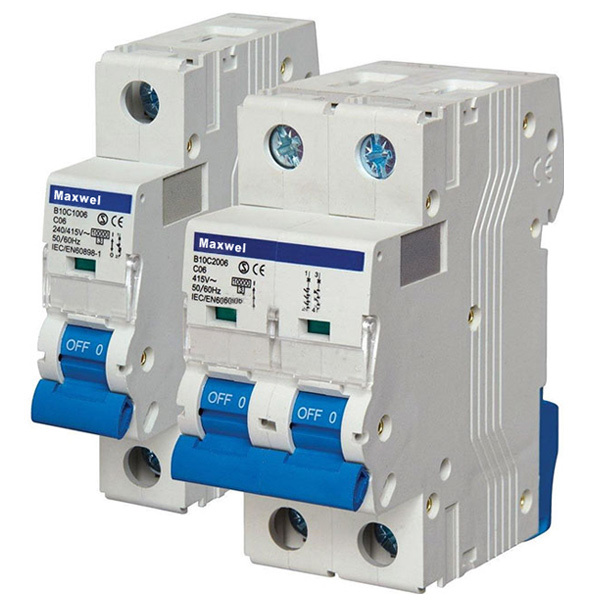

Power Circuit Breaker Is Used in Motor Distribution System

Name: Power Circuit Breaker Is Used in Motor Distribution System
Brand: china-manufacturer-directory.com
SKU: 743859035
Availability: InStock
Rating: 4.4 (41 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Specifications

Circuit breaker for protecting low voltage circuit
All parts inside made by ourself
CE approval, SGS tested.
Surprising pri

CDSB1 sreies circuitbreaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuitin the system. The product is novei in structure. Light in weight reliable and excellent in performance. It has hight breaking capacity can trip quickly and its installation uses with guide. Its cae and items are adopted with high fire-resistant and shockproof plastics. The product, with long life is mainly used in AC50hz/60hz single-ole 240v or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for in frequent on -and -off switching electri equipment and lighting circuit in normal case. This product comply with GB10963, IEC898, BS3871.

Rated temperature 40 C

Rated voltage 240V/415V AC

Rated current(C):1,2,4,6,10,15,16,20,25,32,40,5,60,63A
(D):1,2,4,6,10,15,16,20,25,32,40A

Eletric endurance not lower than 6000 times

Mechanical endurance lower than 20000 times

Standard	Rated current (A)	Pole	Voltage (V)	Breaking capacity (A)
Standard	Rated current (A)	Pole	Voltage (V)	Breaking capacity (A)
BS3871-1 IEC898	1 to 40	1	240	4000
BS3871-1 IEC898	1 to 40	2,3,4	415	4000
IEC157-1	1 to 40	1	220/240	6000
		2,3,4	220/240	12000
		2,3,4	380/415	6000

1P	2P	3P	4P
102g	208g	308g	408g

Prod Model:	CDSB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Poles:	1 Pole,2pole,3pole,4pole
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	4
Certification:	UL
Operation:	Electric Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.
