Product Specifications

Prod Model:	JXF-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Power
Structure:	Protection

Product Description

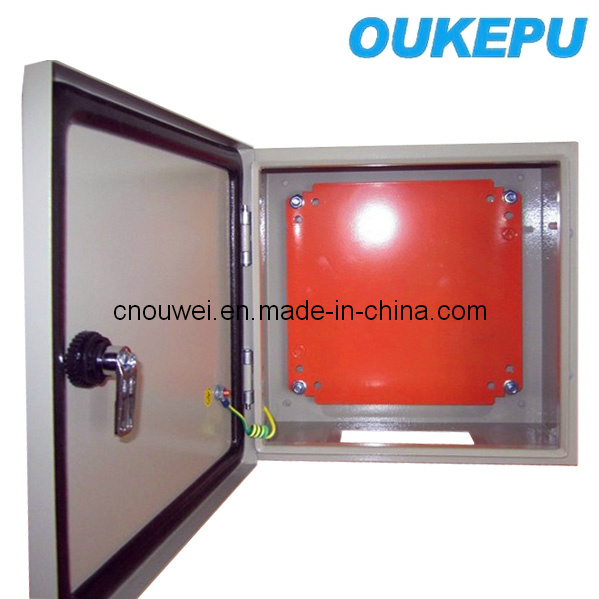

Features: Power Power distribution box \Electric Wall box \Switch Box\Junction Box
(1)Body and door manufactured in 1.2/1.5mm sheet steel.
(2)Mounting Plate with folded edge in 2.0mm sheet steel.
(3)Finished with thermosetting epoxy polyester powder coating.
(4)Mounting Plate in smooth finish.
(5)IP65 Protection
(6)Dimensions of products(only part, for more details you can contact with us)

PACKING of Power distribution box \Electric Wall box \Switch Box\Junction Box
Boxes are complete with:
-2 zinc passivated rails to be fixed on the door
-Mounting plate
-Gland plate and gasket
-package with hardware for earth connection and screws to mount all components
-Locking system with 3mm double-bar key

Yueqing City Ouwei Electric Co., Ltd
Yueqing City Ouwei Electric Co., Ltd
PACKINGLIST OF WALL MOUNTING ENCLOSURE

Items	H	W	D	Thickness			G.W (KG)	N.W(KG)
Items	mm	mm	mm	Door/mm	Body/mm	M.P/mm	G.W (KG)	N.W(KG)
1	200	200	150	1.2	1.2	2.0	3.30	3.1
2	250	200	150	1.2	1.2	2.0	3.50	3.3
3	300	200	150	1.2	1.2	2.0	4.00	3.7
4	300	200	200	1.2	1.2	2.0	4.50	4.2
5	300	250	150	1.2	1.2	2.0	5.00	4.7
6	300	250	200	1.2	1.2	2.0	5.40	5
7	300	250	250	1.2	1.2	2.0	5.90	5.5
8	300	300	150	1.2	1.2	2.0	5.40	5
9	300	300	200	1.2	1.2	2.0	6.40	6
10	300	300	250	1.2	1.2	2.0	7.00	6.5
11	400	300	150	1.2	1.2	2.0	7.70	7.2
12	400	300	200	1.2	1.2	2.0	8.50	8
13	400	300	250	1.2	1.2	2.0	9.20	8.7
14	400	300	300	1.2	1.2	2.0	9.80	9.3
15	400	400	150	1.2	1.2	2.0	9.50	9
16	400	400	200	1.2	1.2	2.0	10.40	9.9
17	400	400	250	1.2	1.2	2.0	11.20	10.7
18	400	400	300	1.2	1.2	2.0	11.90	11.4
19	500	300	150	1.2	1.2	2.0	9.30	8.9
20	500	300	200	1.2	1.2	2.0	10.00	9.5
21	500	300	250	1.2	1.2	2.0	10.90	10.4
22	500	300	300	1.2	1.2	2.0	11.70	11.2
23	500	400	150	1.2	1.2	2.0	12.00	11.5
24	500	400	200	1.2	1.2	2.0	12.50	12
25	500	400	250	1.2	1.2	2.0	13.20	12.6
26	500	400	300	1.2	1.2	2.0	14.30	13.7
27	500	500	150	1.2	1.2	2.0	13.80	13.2
28	500	500	200	1.2	1.2	2.0	14.90	14.3
29	500	500	250	1.2	1.2	2.0	15.90	15.3
30	500	500	300	1.2	1.2	2.0	17.00	16.3
31	600	400	150	1.2	1.2	2.0	13.30	12.7
32	600	400	200	1.2	1.2	2.0	14.30	13.7
33	600	400	250	1.2	1.2	2.0	15.40	14.7
34	600	400	300	1.2	1.2	2.0	16.50	15.8
35	600	500	150	1.2	1.2	2.0	16.30	15.7
36	600	500	200	1.2	1.2	2.0	17.50	16.8
37	600	500	250	1.2	1.2	2.0	18.60	17.9
38	600	500	300	1.2	1.2	2.0	19.70	19
39	600	600	150	1.2	1.2	2.0	19.00	18.3
40	600	600	200	1.2	1.2	2.0	20.20	19.5
41	600	600	250	1.2	1.2	2.0	21.50	20.8
42	600	600	300	1.2	1.2	2.0	22.70	22
43	700	400	200	1.2	1.2	2.0	16.30	15.6
44	700	400	300	1.2	1.2	2.0	18.50	17.8
45	700	500	150	1.2	1.2	2.0	18.30	17.6
46	700	500	200	1.2	1.2	2.0	19.50	18.7
47	700	500	250	1.2	1.2	2.0	20.80	20
48	700	500	300	1.2	1.2	2.0	22.00	21.2
49	700	600	200	1.2	1.2	2.0	22.60	21.8
50	700	600	250	1.2	1.2	2.0	24.00	23.2
51	700	600	300	1.2	1.2	2.0	25.30	24.5

52	800	600	200	1.5	1.5	2.0	27.10	26.3
53	800	600	250	1.5	1.5	2.0	31.80	31
54	800	600	300	1.5	1.5	2.0	33.70	32.9
55	800	600	400	1.5	1.5	2.0	37.30	36.5
56	800	800	200	1.5	1.5	2.0	38.10	37.3
57	800	800	250	1.5	1.5	2.0	40.30	39.5
58	800	800	300	1.5	1.5	2.0	42.50	41.7
59	1000	600	200	1.5	1.5	2.0	36.50	35.7
60	1000	600	250	1.5	1.5	2.0	38.70	37.9
61	1000	600	300	1.5	1.5	2.0	40.70	39.8
62	1000	700	200	1.5	1.5	2.0	41.40	40.5
63	1000	800	200	1.5	1.5	2.0	46.40	45.5
64	1000	800	250	1.5	1.5	2.0	48.70	47.8
65	1000	800	300	1.5	1.5	2.0	51.00	50.1
66	1000	800	400	1.5	1.5	2.0	55.70	54.7
67	1000	1000	250	1.5	1.5	2.0	58.90	57.9
68	1000	1000	300	1.5	1.5	2.0	61.40	60.4

69	1200	600	200	1.5	1.5	2.0	43.00	42
70	1200	600	250	1.5	1.5	2.0	45.32	44.3
71	1200	600	300	1.5	1.5	2.0	47.80	46.8
72	1200	800	200	1.5	1.5	2.0	54.70	53.7
73	1200	800	250	1.5	1.5	2.0	57.40	56.4
74	1200	800	300	1.5	1.5	2.0	60.00	59
75	1200	1000	250	1.5	1.5	2.0	69.10	68
76	1200	1000	300	1.5	1.5	2.0	72.00	70.8
77	1200	1000	400	1.5	1.5	2.0	77.60	76.3
78	1200	1200	250	1.5	1.5	2.0	80.80	79.4
79	1200	1200	300	1.5	1.5	2.0	84.20	82.7
81	1400	600	300	1.5	1.5	2.0	64.50	63
82	1400	800	300	1.5	1.5	2.0	68.50	67
83	1400	800	400	1.5	1.5	2.0	74.20	72.5
84	1400	1000	300	1.5	1.5	2.0	82.20	80.4
85	1400	1000	400	1.5	1.5	2.0	88.50	86.6
86	1400	1200	300	1.5	1.5	2.0	96.00	94
