Product Specifications
| Prod Model: |
215941 (Type A, BLue) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Power Distribution Spring Cage Terminal Block |
| Model Number: |
215941 (Type a, Blue) |
| Wire Range: |
0.2-1.5mm2/24-16AWG |
| Rated Voltage: |
600-800V |
| Rated Current: |
10-18A |
| Application: |
Wer Supply |
| Environmental Protection: |
General |
| Connection Mode: |
Threaded Connection |
| Shape: |
Rectangle |
| Contact Termination Form: |
Screws Fixed |
| Brand: |
OEM/Fato |
Product Description
Product Detail

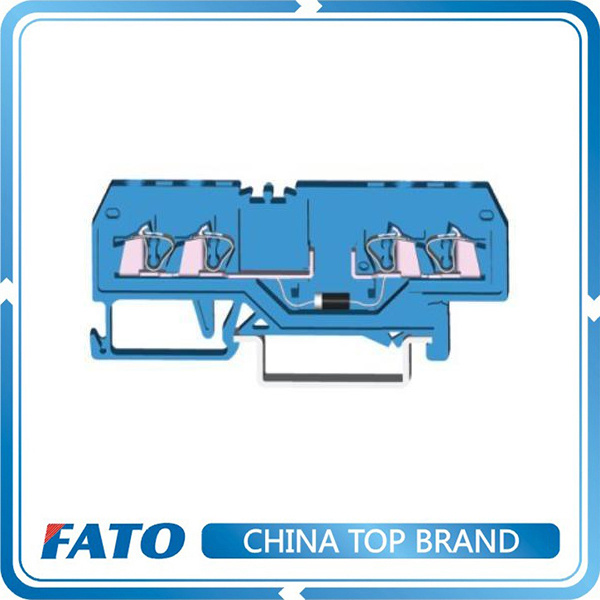

800V 18A Power Distribution Spring Cage Terminal Block , Front-Entry Type.
Quick details
1*2 Conductor Through Terminal Block
Wire Range 0.2-1.5mm2/24-16AWG
800V 18A 600V 10A
Front-entry type
Order No.:215941 (Type A, BLue).
Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
Operate easily, only need a screw driver.
Print marker card as customer's requests.
Mounted on SP35 standard rail (steel or aluminum)
Specifications:
Article: |
1*2 Conductor Through Terminal Block |
Wire Range: |
0.2-1.5mm2/24-16AWG |
|
IEC |
UL |
CSA |
EN |
Rated Voltage: |
800V |
600V |
600V |
800V |
Rated Current: |
18A |
10A |
10A |
18A |
Size (mm/in): |
4×73×27mm/0.157×2.87×1.06 in |
Strip length (mm/in): |
8-9 mm/0.33 in |
Wires: |
Applied for any kind of wires |
Connect Ways: |
spring-clipping |
Entry Type: |
Front-entry |
Peak Voltage: |
8KV |
Weight: |
|
Pollution Severity: |
3 |
UL94 Insulation Material: |
V 0 or V 2 |
Insulation Material: |
PA66 |
Color: |
Blue |
Packing: |
100PCS |
