Foshan Shunde VETRON Electronic Industrial Co., Ltd. >> Power Electronic Applications Capacitor

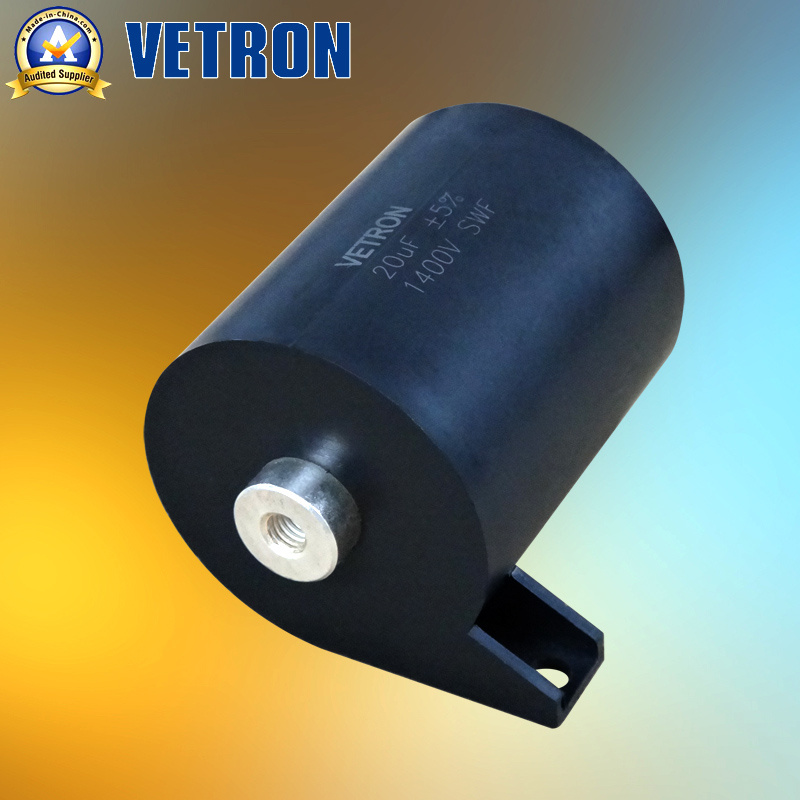

Power Electronic Applications Capacitor

Name: Power Electronic Applications Capacitor
Brand: China-Manufacturer-Directory.com
SKU: 743624285
Availability: InStock
Rating: 4.6 (100 reviews)

Supplier:	Foshan Shunde VETRON Electronic Industrial Co., Ltd.
Price:	US $ 1/Piece
Min Order:	150/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SWF-20uF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rate Voltage:	1400V.DC
Capacitance Tolerance:	-5% to +5%
Type:	Polypropylene Capacitor
Application:	Power
Capacitance:	1-50uf

Product Description

Inverters Unit Capacitor Features (1) Adopt Polypropylene metallized film construction; (2) Used metallized PP material, with self-healing property, it has long life time (>=100,000h); small inherent temperature rise. (3) Non-inductive structure, Low ESR and ESL. (4) Tinned copper nut terminal, plate case fills with UL94V-0 resin. (5) Film capacitor performance is stable and reliable. Applications 1) Used for industry inverters welding machine. Technical Specification

Temperature Range	-40°C~+85°C
Capacity Range	4/5/6uF
Capacitance deviation	±5%(J),±10%(K)
Voltage	500VDC
Over Voltage Terminals	1.2Un/60S
Dissipation factor	tgδ≤0.0020(at 1KHz 25°C)
Insulation resistance	C*Rs≥5000S(at25°C 100V.DC)
Flame-retardant	UL94V-0
Stray inductance	≤50nH
I_rms Current	28~41A
Failure rate	<30 fit
Reference Standard	Enterprise standards in line with IEC61071, IEC60068, IEC60384
Case components	Plastic cover
Terminals form	Double copper line
Installation type	Mounting support.

VETRON is a manufacturer of film capacitors for the power electronics market, short delivery time, and competitive prices, innovative product technologies with engineering expertise to provide reliable solutions for renewable energy, power supplies, inverter, welding, induction heating and UPS systems; As well as solar power and wind power and DC link capacitors for electric vehicles.

Capacitor including:

1. DC-link film capacitors: SAL, SBL, SDL, SEL, SFL Series

2. IGBT snubber film capacitors: SCF/R, SCR, SCP, SCN Series

3. Welding machine film capacitors: SWF, SKP, STP, STR, Series

4. Induction heating machine capacitors: SKR, SJR, SIL Series

5. GTO snubber capacitors: SIR, SVR Series

6. AC power supply capacitors: SAF, SBF, SCW Series

7. DC-blocking & coupling capacitors: SCL Series

We are proud of the excellent quality products and the best service. And we also have distributor to serve customers in time.
