| Supplier: | Fujian Xingxin Mechanical & Electrical Co., Ltd. |
|---|---|
| Price: | US $ 25000/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | GF2-400kw |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gf2-400kw: | 400kw |
| Type: | Self-Starting Diesel Generator |
| Installation Method: | Fixed |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
| Stroke: | 19 |

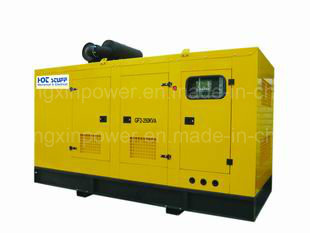

Big power generator brushles open type/silent type perkins engine/wei fang engine, deutz engine. Lovol engine. Cummins engine,| MODEL | GF2-400KW/500KVA |
| Powered by Cummins Engine | |
| Prime Power (50HZ/60HZ) | 360KW/450KVA |
| Standby Power (50HZ/60HZ) | 400kw/500KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
| Engine Model | KTA19-G3 |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 159X 159 |
| Compression Ratio | 13.9:1 |
| Speed | 1500rpm/1800rpm |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 97 |
| Engine Displacement (L) | 19 |
| Inspiration (L) | Turbocharged Intercooled |
| Lube Volume (L) | 50 |
| Coolant Volume (L) | 95 |
| Noise (Db) | ≤ 80 |
| Alternator Model | Stamford Copy HCI544C |
| Alternator Power | 360KW/450KVA |
| Voltage | 220/380 V |
| Protection | IP23 |
| Voltage Regulation | ±1% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 6300 |
| Dimensions (L x W x H) mm | 5000*1500*1900 (S) |
| Optional | ATS (auto transfer switch) |
