Sinnor Instruments, Inc., >> Power Supply Board for Multi -Parameter Patient Monitor (AC-005)

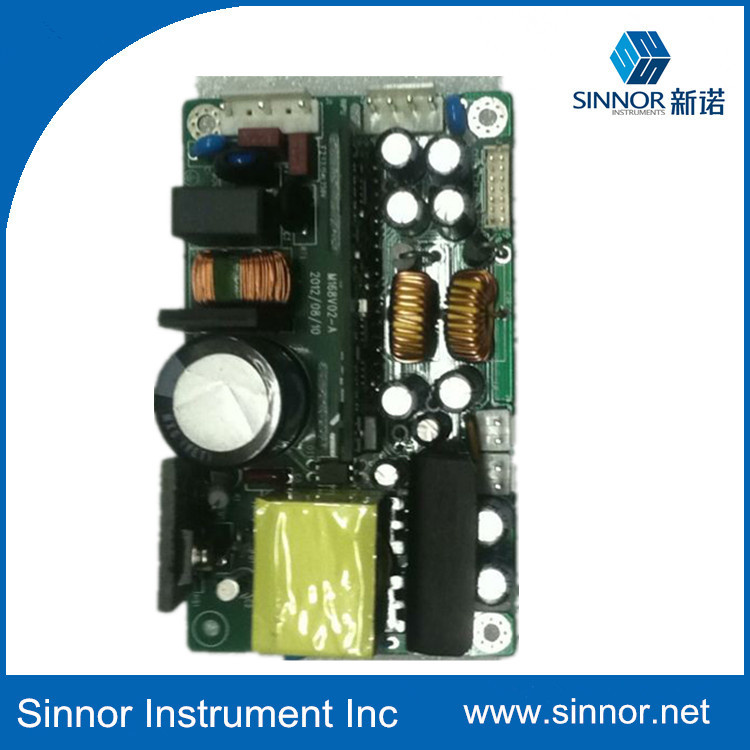

Power Supply Board for Multi -Parameter Patient Monitor (AC-005)

Power Supply Board for Multi -Parameter Patient Monitor (AC-005)
Supplier: Sinnor Instruments, Inc.,
Price: US $ 100-500/Piece
Min Order: 100/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: AC-005
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Use in Patient Monitor
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient/Fetal/Maternal Monitor
Certification: ISO13485

Product Description

Lead mode:                                5 –lead(R, L, F, N, C) (3/12 lead ECG for optional)
Lead selection:                          I, II, III, avR, avL, avF, V
Waveform:                          3 and 7 channel selectable
Gain selection:                         0.5mm/mv,1mm/mv,2mm/mv
Sweep speed:                          6.25mm/s;12.5mm/s;25mm/s;50mm/s
Heart rate range:                        Adult: 15~300bpm;
Neonate/pediatric: 15~350bpm
Accuracy:                                   +1bpm or +1%, which is greater
Resolution:                          1bpm
Filter:                                            surgery mode: 1~20Hz
Monitor model: 0.5~40Hz
Diagnostic mode: 0.05~130Hz
Scaling signal:                           1mv, +3%
Protection:                         withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation
Alarm range:                             15~350bpm
S-T segment detection:
Measurement range:    2.0mV~+2.0mV
 Alarm Range:          -2.0mV~ +2.0mV
Accuracy:              -0.8mV ~+0.8Mv
Error:                 +0.02Mv

Arrhythmia analysis:         YES



Parameter Specification

ECG
Lead mode:                                5 –lead(R, L, F, N, C) (3/12 lead ECG for optional)
Lead selection:                          I, II, III, avR, avL, avF, V
Waveform:                          3 and 7 channel selectable
Gain selection:                         0.5mm/mv,1mm/mv,2mm/mv
Sweep speed:                          6.25mm/s;12.5mm/s;25mm/s;50mm/s
Heart rate range:                        Adult: 15~300bpm;
Neonate/pediatric: 15~350bpm
Accuracy:                                   +1bpm or +1%, which is greater
Resolution:                          1bpm
Filter:                                            surgery mode: 1~20Hz
Monitor model: 0.5~40Hz
Diagnostic mode: 0.05~130Hz
Scaling signal:                           1mv, +3%
Protection:                         withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation
Alarm range:                             15~350bpm
S-T segment detection:
Measurement range:    2.0mV~+2.0mV
 Alarm Range:          -2.0mV~ +2.0mV
Accuracy:              -0.8mV ~+0.8Mv
Error:                 +0.02Mv

Arrhythmia analysis:         YES
SPO2
Measurement range:        0~100%
Wave speed:               12.5mm/s;25mm/s
Resolution:                1%
Accuracy:                 +2% (70-100%); 0-69% unspecified
Alarm range               0~100%
Lower perfusion situation

Pulse Rate(PR)
Range:                 20~300bpm
Resolution:             1bpm
Error:                 +1bpm or +2%, whichever is greater

NIBP
Method:                   Digital Automatic oscillometric
Operation mode :            Manual/Automatic
Auto measurement time:      Adjustable (1~720min)
                          (1,2,3,4,5,10,15,30,60,90,120,240,480,720min)
Measurement Unit:          mmHg/Kpa selectable
Measurement types:         Systolic, Diastolic, Mean
Measurement Range:
Range of Systolic pressure:    Adult: 40~270mmHg
Pediatric: 40~220mmHg
Neonate: 40~135mmHg
Range of mean pressure:      Adult: 20~235mmHg
Pediatric: 20~165mmHg
Neonate: 20~110mmHg
Range of diastolic pressure:    Adult: 10~215mmHg
Pediatric: 10~150mmHg
Neonate: 10~100mmHg
Over-pressure protection:     Double safety protection
Resolution:                 1 mmHg
Alarm:                     Systolic, Diastolic, and Mean

RESPIRATION
Method:                     RA-LL impedance
Measurement range:           Adult: 7~120rpm;
Neonate/Pediatric: 7~150rpm
Apnea alarm:                 YES, 10~40s
Resolution:                   1rpm
Accuracy:                    +2rpm

TEMPERATURE
Compatible probe:             YSI or CYF
Measurement range:           5~50ºC
Resolution:                   0.1ºC
Accuracy:                    +0.1ºC
Refreshing time:               about 1
Average measuring time:        <10s

Sinnor Instruments, Inc., local in Shenzhen China, is a specialized manufacturer for Patient Monitor. The main products of our company are Multi-Parameters Patient Monitor, Vital Signs Monitor, CTG Fetal/Maternal Monitor, Pulse Oximeter and so on.

Sinnor has a high level R&D team. We are committed to providing the excellent medical equipment and perfect service to our partners and end-users. The company also offers OEM and ODM solutions to its customers by providing complete patient monitor systems, SKD sets, and modules.

Thanks to the high quality products and excellent after-sale services, Sinnor products have been widerly recognized by the medical specialists and welcomed by the customers across the country already.

In the new century, Sinnor has founded an extensive worldwide sales and service network and extended its service to hospitals and healthcare teams by working closely with local dealers and distributors. We are selling the products over 30 countries around the world and also have the ability to win the oversea tender. Up to now, there are almost 20.000 satisfied customers using our products and services.

We expect more and more world-wide partners to enjoy the cooperation with us on the basis of mutual-beneficial relationship.
