| Price: | US $ 105/Piece |
|---|---|
| Trade Terms: | FOB,others |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

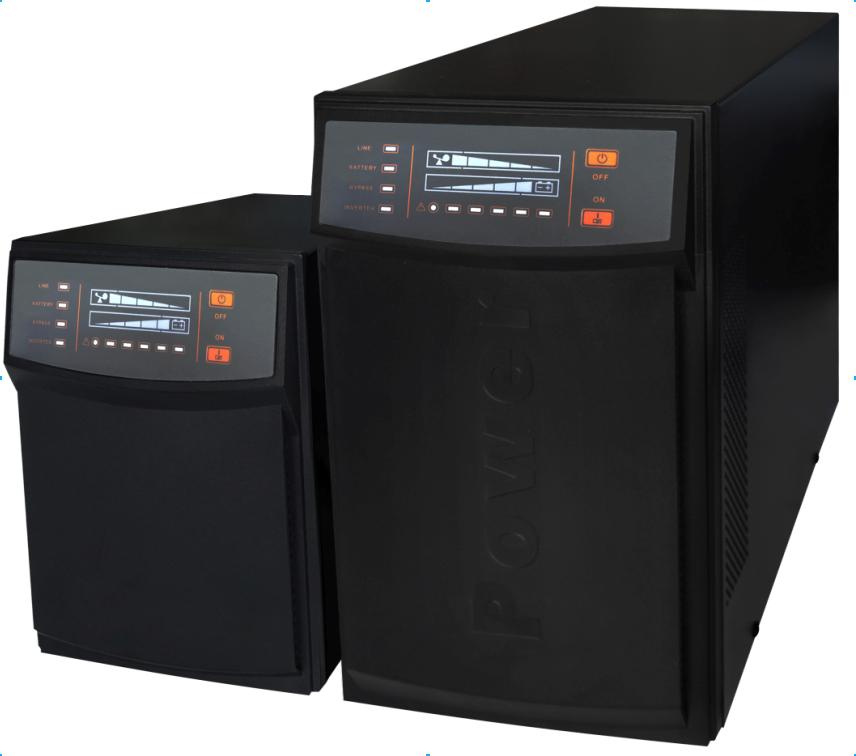

Data center Double conversion Online UPS 1KVA -3KVA
advanced true double conversion On-line Topology
Isolated gate Bipolar Transistors (IGBT) for true isolation from AC input.
Ideal for Data Centers in network and Industrial applications
wide in-put voltage range and near zero tolerance on frequency
voltage variance is perfect for the most demanding and delicate of applications
|
Model |
C1KS |
C2KS |
C3KS |
|
|
Rated Power |
VA/W |
1kVA / 0.7kW |
2kVA / 1.4kW |
3kVA / 2.1kW |
|
Input |
Nominal Voltage |
220VAC |
||
|
Voltage Range |
115 ~ 300VAC |
|||
|
Frequency Range |
46 ~ 54Hz(default), user adjustable within 40~60Hz |
|||
|
Power Factor |
0.97 |
|||
|
Connection |
IEC320 -10A inlet |
IEC320 -16A inlet |
||
|
Output |
Voltage |
220VAC ± 2% |
||
|
Frequency |
46~54Hz or 50Hz ± 0.2Hz (Line mode) 50Hz ± 0.2Hz ( Battery mode) |
|||
|
Waveform |
Sine Wave |
|||
|
Distortion |
3% |
4% |
||
|
Overload Capability |
108% ~ 150% for 30 sec., ³150% for 300 ms |
|||
|
Current Crest Ratio |
3:1 |
|||
|
Connections |
IEC320 -10A *4 |
IEC320 -10A *6 |
IEC320 -10A *3 and Terminal Block |
|
|
Battery |
Type |
Sealed, Maintenance free, Lead-Acid |
||
|
Nominal DC Voltage |
36VDC |
96VDC |
||
|
Back-up Time |
Depends on the capacity of the external battery bank |
|||
|
Connection |
External Battery Socket |
|||
|
Bypass |
Automatic Transfer |
On overload and UPS failure |
||
|
Before UPS Power-on |
Default "NO", user adjustable to "YES" |
|||
|
Voltage Range |
80 ~ 264VAC (Default), user adjustable within 80 ~ 286VAC |
|||
|
Transfer Time |
0 ms; less than 4 ms from inverter to bypass and vice versa |
|||
|
LCD Indicators |
Status |
Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault |
||
|
Audible Alarm |
Bypass, On battery mode, Battery low, Overload, Fault |
|||
|
Acoustic Noise |
At 1 meter distance |
45 dBA |
50 dBA |
|
|
Communications |
DB-9 Port |
RS-232 Serial Interface |
||
|
Intelligent Slot |
Options: WebPower, AS400 Card or WinPower CMC |
|||
|
Network Surge Protection |
RJ45 I/O port available for 10 base-T network or Fax/Modem |
|||
|
Environmental |
Operating Temperature |
0 ~ 40°C |
||
|
Operating Humidity |
20 ~ 90% non-condensing |
|||
|
Weight |
Net (Kg) |
7 |
13.5 |
14 |
|
Dimensions |
W x D x H (mm) |
145 x 400 x 220 |
192 x 460 x 348 |
|
| Prod Model: | C1KVA /C2KVA /C3KVA |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Mid East,Western Europe |
| Brand Name: | Must |
| Weight: | 14.5kgs to 63kg |
| Output Voltage: | 220V-240VAC |
| Application: | Telecom, Sensitive Electronic Equipement |
| Color: | Black |
| Shape: | Castle |
| Wave Form: | Pure Sinewave |
| Battery: | Lead Acid Free Battery |
| Software: | Support |
| Double Conversion: | Yes |
| Phase: | Single Phase |
| Type: | On-line |
| Protection: | Short Circuit |
