Product Specifications
| Prod Model: |
S11, SF11, SFZ11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Power |
| Coil Number: |
Other |
| Packaging Details: |
Sea Worthy Packing |
| Coil Structure: |
Toroidal |
| Delivery Detail: |
1~3 Months |
| Tap Changer: |
Oltc |
| Certificates: |
Ctqc,CE,ISO9001,ISO14001,Cesi |
Product Description
Specifications
Furnace trans. 1) Top 1 in China: 120MVA EAF trans. 2) ISO9001, ISO14001, CE 3) Apply for IEC, JB, ANSI 4) Up to 110kV, 160MVA
Main function and features

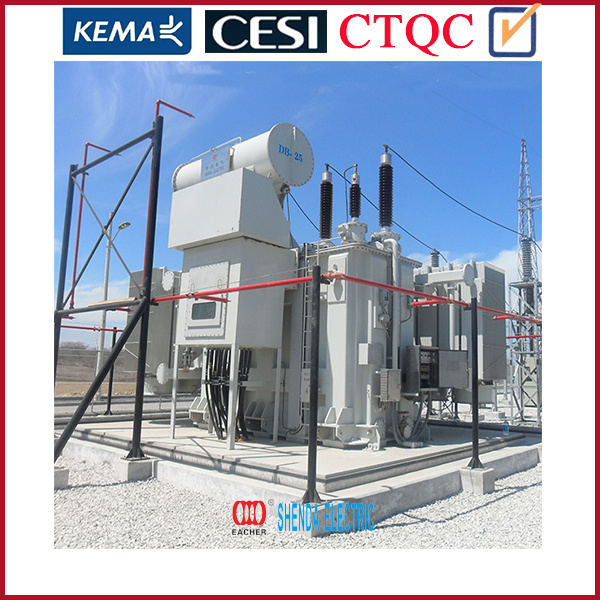

Furnace transformers are separated with normal power transformer with its characteristic of massive secondary currents which are the main products of Shenda Electric with many advantages both on quality and price. As an example a 30MVA unit at 150V would result in a secondary current of 115 kilo ampere. For these high secondary currents special bushings are required to be connected to the bus-bars. These bushings are specified with very specific arrangements to suit the bus-bar arrangement and cooling system. Furnace bus-bar are mostly water-cooled. The cooler are either of the oil forced (OFAF) or Oil forced water OFWF).
Shenda electric is renowned and appreciated by its reliable products performance and integrated services.
Features:
1) Low loss
2) Low noise
3) High efficiency
4) Low partial discharge
5) Strong mechanical strength and short-circuit withstand ability.
6) Operation reliability
7) Easy maintenance
8) Pretty outline and compact structure
9) 100% guaranteed no leakage
Brief specification
1) Voltage class: 6~110 KV
2) Capacity: 630 KVA to 120, 000 KVA
3) Short-circuit impedance: 4.5~21%
4) Losses: No-load losses is fully comply with IEC standard requirements
Application:
Arc furnaces are used in steel industry for smelting scrap iron and for refining steel. Other application areas are:
1) Smelting glass and ceramics
2) Manufacturing or refining many other materials etc. Ferrochromium, ferromanganese, different abrasive materials (oxides and nitrides), semiconducting base materials, nanopowders etc.
3) Electric arc furnace (EAF) transformers are required for many different furnace processes and applications. They are built for:
A, Steel furnaces, mainly long arc
B, Landle furnaces
C, ferro-alloy furnace and similar with short or submerged are
D, Smelting of other materials
|
Rated power (kVA) |
H.V (kV) |
H.V. Tap range |
L.V (kV) |
Vector Group |
Impedance (%) |
No-load Loss (kW) |
On-load Loss (kW) |
No-load Current (%) |
Oil Weight (kg) |
Total weight (kg) |
Overall dimension (mm) |
|
800 |
35/38.5 |
±3*2.5% |
6.3 |
Yd11 or YNd11 |
6.5 |
1.06 |
9.98 |
1.05 |
1650 |
4790 |
2870*1810*2570 |
|
1000 |
35/38.5 |
±3*2.5% |
6.3 |
Yd11 or YNd11 |
6.5 |
1.26 |
12.16 |
1 |
1760 |
5210 |
3150*1890*2650 |
|
1250 |
35/38.5 |
±3*2.5% |
6.3 |
Yd11 or YNd11 |
6.5 |
1.49 |
14.63 |
0.9 |
2010 |
6080 |
3510*2040*2690 |
|
1600 |
35/38.5 |
±3*2.5% |
6.3 |
Yd11 or YNd11 |
6.5 |
1.8 |
17.58 |
0.85 |
1920 |
6610 |
3560*2070*2740 |
|
2000 |
35/38.5 |
±3*2.5% |
6.3 |
Yd11 or YNd11 |
6.5 |
2.3 |
19.24 |
0.8 |
2160 |
7440 |
3680*2050*2850 |
|
2500 |
35/38.5 |
±3*2.5% |
6.3 |
Yd11 or YNd11 |
6.5 |
2.72 |
20.64 |
0.8 |
2580 |
8240 |
3780*2220*2890 |
|
3150 |
35/38.5 |
±3*2.5% |
6.3 |
Yd11 or YNd11 |
7 |
3.23 |
24.71 |
0.72 |
2680 |
8540 |
3850*2310*2950 |
|
4000 |
35/38.5 |
±3*2.5% |
6.6 |
Yd11 or YNd11 |
7 |
3.87 |
29.16 |
0.72 |
2960 |
11180 |
4120*2380*3150 |
|
5000 |
35/38.5 |
±3*2.5% |
10 |
Yd11 or YNd11 |
7 |
4.64 |
34.2 |
0.68 |
3050 |
12480 |
4210*2510*3220 |
|
6300 |
35/38.5 |
±3*2.5% |
10.5 |
Yd11 or YNd11 |
7.5 |
5.63 |
36.77 |
0.68 |
4050 |
15900 |
4320*3000*3290 |
|
8000 |
35/38.5 |
±3*2.5% |
11 |
Yd11 or YNd11 |
7.5 |
7.87 |
40.61 |
0.6 |
4200 |
17130 |
4500*3100*3680 |
|
10000 |
35/38.5 |
±3*2.5% |
11 |
Yd11 or YNd11 |
7.5 |
9.28 |
48.05 |
0.6 |
7480 |
25230 |
4560*3500*3750 |
|
12500 |
35/38.5 |
±3*2.5% |
11 |
Yd11 or YNd11 |
8 |
10.94 |
56.86 |
0.56 |
8010 |
27000 |
4590*3580*3830 |
|
16000 |
35/38.5 |
±3*2.5% |
11 |
Yd11 or YNd11 |
8 |
13.17 |
70.32 |
0.54 |
8560 |
32500 |
4650*3700*4000 |
|
20000 |
35/38.5 |
±3*2.5% |
11 |
Yd11 or YNd11 |
8 |
15.57 |
82.78 |
0.54 |
10030 |
37770 |
5200*4200*4280 |
|
25000 |
35/38.5 |
±3*2.5% |
11 |
Yd11 or YNd11 |
8 |
18.96 |
101.65 |
0.5 |
12300 |
42600 |
5320*4350*4340 |
|
31500 |
35/38.5 |
±3*2.5% |
11 |
Yd11 or YNd11 |
8 |
22 |
119.7 |
0.45 |
13500 |
51100 |
5450*4420*4450 |
|
``` |
``` |
``` |
``` |
``` |
``` |
``` |
``` |
``` |
``` |
``` |
``` |
Shenda International Engineering Co., Ltd. is a professional player in transformer industry, which established in Oct. 2000, located in Zhejiang province of China, holds two production bases and seven sales companies. We always focus on the R&D, have been appointed as a manufacturer of transformers at 330KV levels and below by National Electric Power Corp and Mechanical Industry Union. "EACHER" has been awarded "Famous Brand of Zhejiang Province".
Our annual total production capacity is about 18, 000, 000 kVA, our factory covers an area of 370, 000 square meters and a building area of 100, 000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 330kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have imported many advanced production and testing facilities from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1, 500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
There are type test report of CESI Short Circuit Test Report 100MVA/220KV and KEMA Test Report-50MVA/69kV in our company
