Power Transmission/Distribution 2016 Pakistan Projects 35kv~132kv Mobile Prefabricated Substation for Wind Power Generation
| Price: |
US $ 80000-100000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |

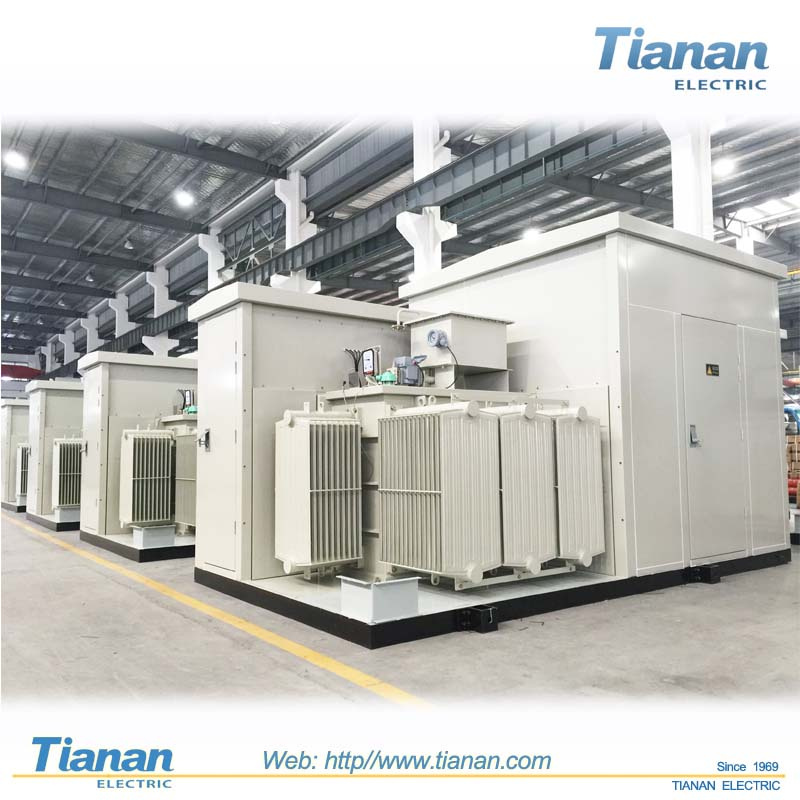

YBT13 series of substation for wind power and photovoltaic generation is my company in order to meet the demand of wind power and photovoltaic generation,its own R&D products.The product have novel appearance,compact structure,reliable performance,convenient maintenance etc.
Structure features:
1) Main body structure
2) HV unit
3) Transformer unit
4) LV unit
5) Distribution network automation unit
6) Power uninteruptible operation power supply.
| Item | Unit | Data |
| HV Unit | Switch type |
| Combined
electrical
apparatus | Circuit
breaker |
| Rated voltage | kV | 40.5 | 40.5 |
| Rated frequency | Hz | 50 | 50 |
| Rated current | A | 630 | 1250 |
1 min Rated power frequency
withstand voltage(for ground
and phase / isolation fracture) | kV | 95/118 | 95/118 |
Lighting withstand voltage(for
ground and phase / isolation
fracture) | kV | 185/215 | 185/215 |
| Rated short time withstand current | kA/s | 20/2 | 25/4 |
| Rated peak withstand current | kA | 50 | 63 |
| Rated short-circuit current | kA | 31.5 | 63 |
| Rated short circuit breaking current | kA | 31.5 | 25 |
| LV Unit | Rated voltage | V | 690/270 |
| Main circuit rated current | A | 1600~3300 |
Rated ultimate short circuit
breaking capacity | kA | 50 |
| Rated short-circuit breaking capacity | kA | 40 |
| Rated short-time withstand voltage | kA/s | 40/1 |
Transformer
Unit | Rated capacity | kVA | 1000~5500 |
| Impedance voltage | % | 6.5 |
| Tapping range | % | ±2 x 2.5 ; ± 5 |
| Connected group |
| D, yn11 or Y , d11 d 11 |
Main body | Enclosure degree of protection | HV room |
| IP33 |
| LV room |
| IP33 |
| Transformer room |
| IP23 |
| Sound level | dB | ≤55 |
| Prod Model: |
YBT13-40.5(FD) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Prefabricated Substation |
| Altitude: |
up to 3, 000m Above Sea Level |
| Hv Voltage: |
40.5kv |
| LV Voltage: |
690V |
| Connected Group: |
D, Yn11 or Y, D11 D 11 |
| Circuit Breaker: |
40.5kv |
| Enclosure Degree Of Protection: |
IP33 |
| LV Main Circuit Rated Current: |
1600~3300 |
| Frequency: |
50( 60) Hz |
| Warranty: |
10 Years |
