Product Specifications
| Prod Model: |
M9.9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Trype: |
Outboard |
| Usage: |
Boat |
| Certification: |
CE, ISO9001 |
| Transom Height: |
440mm |
| Fuel: |
Gasoline Engine |
Product Description

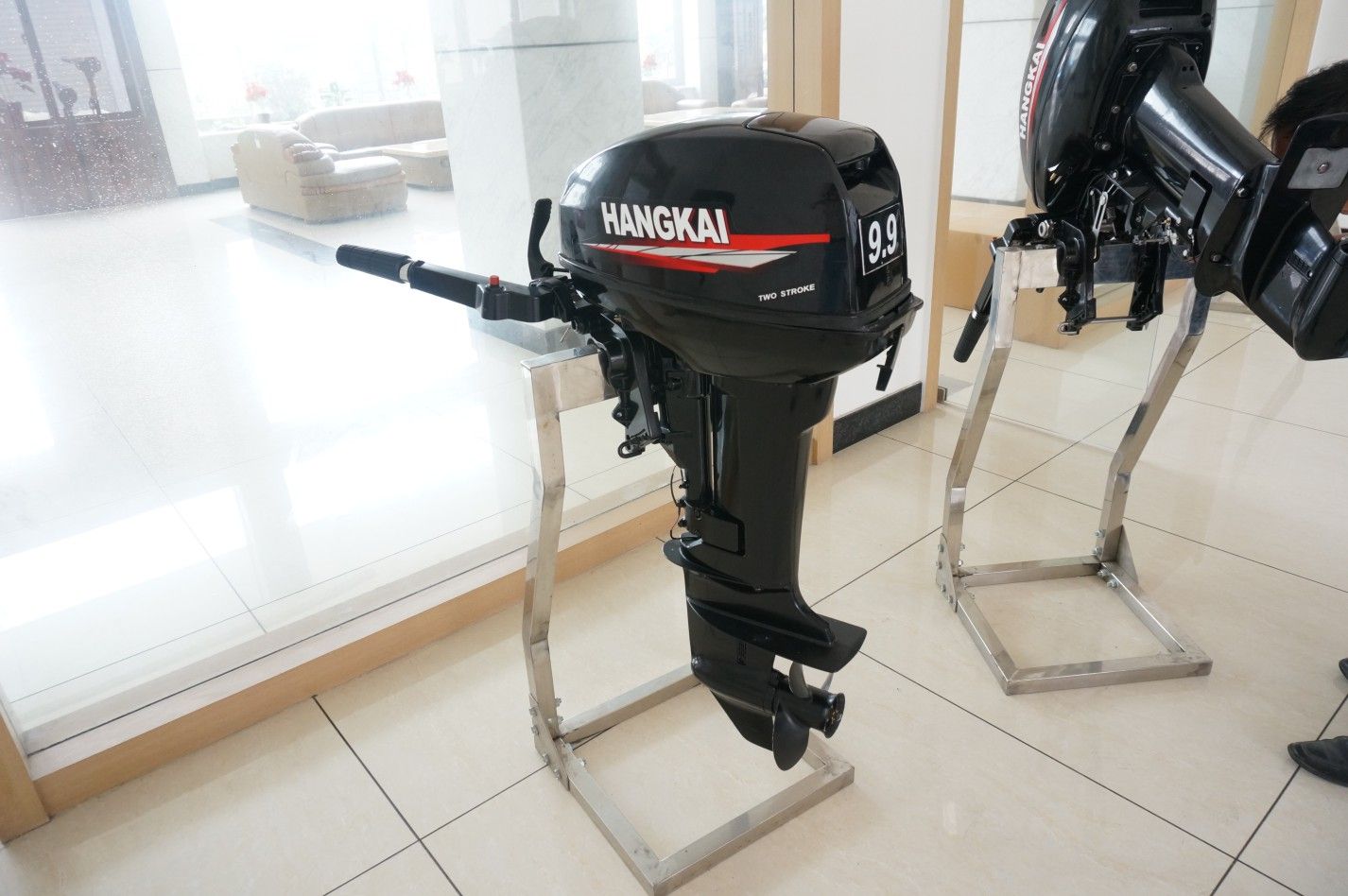

Powerful 9.9hp Two stroke HANGKAI Outboard Motor with CE
M9.9 (9.9HP) HANGKAI Outboard Motor Models Feature:
*Compact and lightweight with convenient carrying handle
*Quiet efficient 2 stroke marine engine
*High grade marine aluminum alloy for ultimate corrosion protection
*Tilt & trim with shallow water drive various positions
*Low oil indicator for increased protection
*Twist grip throttle control for easy maneuverability & safety
*Thermostat controlled water cooling system
*Safety lanyard with emergency shutoff
*Easy forward-neutral-reverse gear shifting
*Vibration reduction system for smooth performance
*Start in gear protection for increased safety
*Adjustable steering friction for easier maneuverability
*CDI ignition system for trouble free starting
*Innovative large recoil wheel assists easy starting
*Quiet, through the propeller hub exhaust
*Low emissions, quiet operation
*Quality 24L fuel tank with hose
*CE Certification
Specification:
MODELS | M9.9 | M15 |
| Max.Output kw(hp) | 7.3(9.9) | 11(15) |
| Overall L×W×H(mm) | 873×332×1040 | 873×332×1040 |
| Transom Plate Height (mm) | 440 | 440 |
| Full throttle operating range (r/min) | 4500-5500 | 4500-5500 |
| Engine stroke | 2 |
| Cylinder | 2 |
Displacement
(cc) | 246 | 246 |
| Bore×Stroke (mm) | 56×50 | 56×50 |
| N.W./G.W.(kgs) | 36.56/47.5 | 36.56/47.5 |
| Packing size (cm) | 120*70.5*37.5 | 120*70.5*37.5 |
| Gear Ratio | 2.08(27:13) |
| Gear Positions | F-N-R | F-N-R |
| Trim and tilt system | Manual Tilt |
| Ignition System | CDI |
| Cooling System | Water-cooled |
| Starting System | Manual Start |
| Control System | Tiller Control |
| Mixing ratio | Fuel: Oil= 25(45:1) |
| Standard fuel tank capacity | 24L | 24L |
| Optional fuel tank capacity | / | / |
| Recommended Propeller range | 3-9 1/4"×8" | 3-9 1/4"×8" |
| Recommended fuel | #93 Lead-free gasoline |
| Recommeded Gear oil | Hypoid gear oil SAE #90 |
We are the First Outboard Motor Manufacturer in China. We professionally produce gasoline outboard motors, electric trolling motors and inflatable boats. Our company has been established since 2003, all products are really popular in different market, since it has perfect design, good quality, reasonable prices and professional after-service. We wish to cooperate with you to get success in near future.
We can provide different gasoline outboard engine horsepower 2HP/3.5HP/3.6HP/4.0HP/5.0HP/6.0HP/9.9HP/15HP/30HP/40HP 2-stroke and 4-stroke, And different thrust electric trolling motors from 32lbs to 86lbs.
We also manufacture inflatable boats, rib boats, fishing boats, Sup board, Kayak so on. We always use high quality PVC fabric to produce inflatable boats and each boat passed strict examination.
Now our products are selling well to Europe, Russia, America, Australia, Korea, Asia etc more than 30 countries. You'll feel " value for money" about all our products. Welcome to visit us~!
