Product Specifications
| Prod Model: |
Transformer Bobbin |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Composition: |
Rare Earth Magnet |
| Structure: |
Core |
| Type: |
Bobbin |
| Packaging Form: |
as Customer Requirement |
Product Description

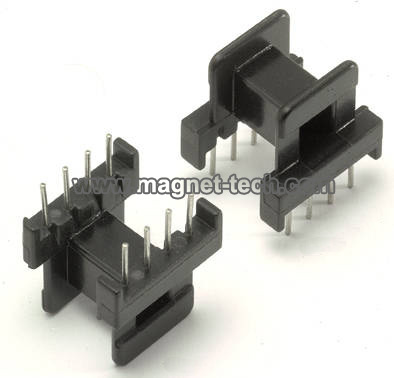

Eel Transformer Bobbin
General Description
1. Transformer Bobbin EEL is provided with high quality coil bobbins, high flux density and low loss characteristics, adequate spacing and insulation provided to meet international safety requirements, for Transformer Bobbins (DIP) both through hole mounting and SMD type...
2. The bobbin EEL are designed for perfect windings and zero defect mounting on and in printed circuit boards.
3. The materials and surface treatments of bobbin EEL we use withstand the insertion forces and high temperatures of assembly and soldering
Features:
1. Bobbin EEL Material: Phenolic T375J
2. Pin of Bobbin EEL Material: CP WIRE
3. Bobbin EEL cost: Relatively low
4. Bobbin EEL UL Class: UL 94V-0
Applications:
Bobbin EEL are for Ferrite Core used in Switching Power Transformers, Switch Transformer, Inductor, Coil, Filter, PC board etc.
Grade
| Remanence (Br) | Coercivity (HcB) | Intrinsic Coercivity(HcJ) | (BH)max |
| mT | KGauss | KA/m | KOe | KA/m | KOe | KJ/m³ | MGOe |
| Y8T | 200~235 | 2.0~2.35 | 125-160 | 1.57-2.01 | 210-280 | 2.64-3.51 | 6.5-9.5 | 0.8-1.2 |
| Y22H | 310~360 | 3.10~3.60 | 220-250 | 2.76-3.14 | 280-320 | 3.51-4.02 | 20.0-24.0 | 2.5-3.0 |
| Y25 | 360~400 | 3.60~4.00 | 135-170 | 1.70-2.14 | 140-200 | 1.76-2.51 | 22.5-28.0 | 2.8-3.5 |
| Y26H-1 | 360~390 | 3.60~3.90 | 200-250 | 2.51-3.14 | 225-255 | 2.83-3.20 | 23.0-28.0 | 2.9-3.5 |
| Y26H-2 | 360~380 | 3.60~3.80 | 263-288 | 3.30-3.62 | 318-350 | 3.99-4.40 | 24.0-28.0 | 3.0-3.5 |
| Y27H | 350~380 | 3.50~3.80 | 225-240 | 2.83-3.01 | 235-260 | 2.95-3.27 | 25.0-29.0 | 3.1-3.6 |
| Y28 | 370~400 | 3.70~4.00 | 175-210 | 2.20-3.64 | 180-220 | 2.26-2.76 | 26.0-30.0 | 3.3-3.8 |
| Y28H-1 | 380~400 | 3.80~4.00 | 240-260 | 3.01-3.27 | 250-280 | 3.14-3.52 | 27.0-30.0 | 3.4-3.8 |
| Y28H-2 | 360~380 | 3.60~3.80 | 271-295 | 3.40-3.70 | 382-405 | 4.80-5.08 | 26.0-30.0 | 3.3-3.8 |
| Y30H-1 | 380~400 | 3.80~4.00 | 230-275 | 2.89-3.46 | 235-290 | 2.95-3.64 | 27.0-32.5 | 3.4-4.1 |
| Y30H-2 | 395~415 | 3.95~4.15 | 275-300 | 3.45-3.77 | 310-335 | 3.89-4.20 | 27.0-32.0 | 3.4-4.0 |
| Y32 | 400~420 | 4.00~4.20 | 160-190 | 2.01-2.39 | 165-195 | 2.07-2.45 | 30.0-33.5 | 3.8-4.2 |
| Y32H-1 | 400~420 | 4.00~4.20 | 190-230 | 2.39-2.89 | 230-250 | 2.89-3.14 | 31.5-35.0 | 3.9-4.4 |
| Y32H-2 | 400~440 | 4.00~4.40 | 224-240 | 2.81-3.01 | 230-250 | 2.89-3.14 | 31.0-34.0 | 3.9-4.3 |
| Y33 | 410~430 | 4.10~4.30 | 220-250 | 2.76-3.14 | 225-255 | 2.83-3.20 | 31.5-35.0 | 3.9-4.4 |
| Y33H | 410~430 | 4.10~4.30 | 250-270 | 3.14-3.39 | 250-275 | 3.14-3.45 | 31.5-35.0 | 3.9-4.4 |
| Y34 | 420~440 | 4.20~4.40 | 200-230 | 2.51-2.89 | 205-235 | 2.57-2.95 | 32.5-36.0 | 4.1-4.4 |
| Y35 | 430~450 | 4.30~4.50 | 215-239 | 2.70-3.00 | 217-241 | 2.73-3.03 | 33.1-38.2 | 4.1-4.8 |
| Y36 | 430~450 | 4.30~4.50 | 247-271 | 3.10-3.40 | 250-274 | 3.14-3.44 | 35.1-38.3 | 4.4-4.8 |
| Y38 | 440~460 | 4.40~4.60 | 285-305 | 3.58-3.83 | 294-310 | 3.69-3.89 | 36.6-40.6 | 4.6-5.1 |
| Y40 | 440~460 | 4.40~4.60 | 330-354 | 4.15-4.45 | 340-360 | 4.27-4.52 | 37.6-41.8 | 4.7-5.2 |
For more detail info, please feel free to visit our website or inquire us at any of your convenience.
www.magnetequip.com
Xiamen Yuxiang Magnetic Materials Ind. Co., Ltd. is located in the beautiful coast of southeast sea. Established in 1997, we are an export-oriented enterprise. Now our company becomes an enterprise with advanced technology, owning two factories in China, both of which have their own R&D and QC departments, and are ISO9001: 2000 certified. We also have an office in Xiamen to provide you with prompt export support.
We are moving ahead with the aim of producing more advanced, more practical, and more competitively-priced products. We keep close track with the ever-changing trends in the industry, with the objective of spearheading our company in the market. We have an ambitious outlook towards expansion, and operate our business with diligence and sincerity. Our more than 20 years of technical know-how and experience have been keeping us ahead in the industry. We have been in the OEM business for five years and are ready for your orders and special requirements.
We supply hard magnets and magnetic materials from China. Our magnets include ferrite magnets, flexible magnets, NdFeB magnets, AlNiCo magnets, SmCo magnets, rubber magnets, refrigerator fridge magnets, magnetic powder, magnetic compound tesla meters & magnetizers, and magnetic jewelry. We also supply ferrite cores, MnZn cores and NiZn cores for transformers and coils, loudspeaker magnets, motor magnets, and refrigerator gasket stripes.
