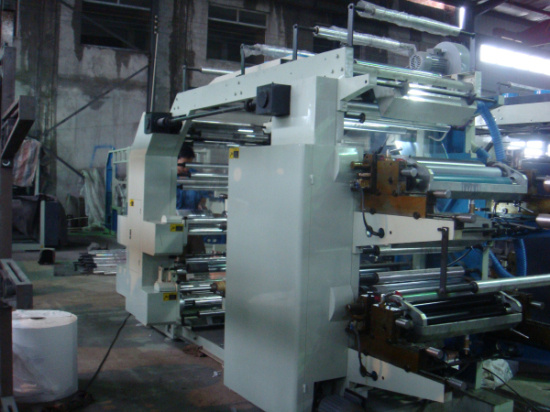

Flexo Printing Machine
*Cast iron machine frame design, very smooth operation maximum speed operation.
*The main motor is AC motor; Its speed is controlled by inverter.
*All the driving gears are treated with grinding & polishing to achieve very stable & silent operation, long lasting and accurate colors registration.
*All the anilox rollers are with 300 lpi to ensure very clear & clear & beautiful printing.
*All the guide rollers, plate cylinders, steel rollers, anilox rollers are treated with dynamic balance checking & chrome-plated.
*When the plate cylinders stop running, the ink rubber rollers and anilox rollers will be continuously rotating to avoid the ink to be stuck on such rollers.
*Using hot (with 2 steps auto-temperature controller) and cold air drying system simultaneously to achieve fast ink drying.
*Equipped with 'clutch device' on each printing section, so if the colors registration is out during the machine's running, the operator can do the adjustment immediately just to push the button of 'clutch device' without stopping the machine.
*Equipped with 'torque motor with controller' on the rewinding section to achieve very smooth & beautiful film rewinding.
| MODEL | Printing width | Printing speed | Printing speed | Plate thickness | Dimension(mm) |
| JQTYA-2600 | 600mm | 180-1200mm | 60m/min | 2.38mm | 2300*1600*2200 |
| JQTYA-2800 | 800mm | 180-1200mm | 60m/min | 2.38mm | 2300*1800*2200 |
| JQTYA-21000 | 1000mm | 180-1200mm | 60m/min | 2.38mm | 2300*2000*2200 |
| JQTYA-4600 | 600mm | 180-1200mm | 60m/min | 2.38mm | 4800*1600*2400 |
| JQTYA-4800 | 800mm | 180-1200mm | 60m/min | 2.38mm | 4800*1800*2400 |
| JQTYA-41000 | 1000mm | 180-1200mm | 60m/min | 2.38mm | 4800*2000*2400 |
| JQTYA-6600 | 600mm | 180-990m/min | 60m/min | 2.38mm | 4800*1600*2400 |
| JQTYA-6800 | 800mm | 180-990m/min | 60m/min | 2.38mm | 4800*1800*2800 |
| JQTYA-61000 | 1000mm | 180-990m/min | 60m/min | 2.38mm | 4800*2000*2800 |
At RUIAN CAMBRIDGE MACHINERY Co., Ltd. (RUIAN CAMBRIDGE I/E Co., Ltd), we customize solutions based on latest technological innovations.
Our company has been a pioneer in manufacturing of machinery used in the packaging industry for the last 15 years. We mainly produce Film Blowing Machine, Printing Machine, Bag Making Machine, Recycling Machine etc.
RUIAN CAMBRIDGE MACHINERY Co., Ltd (RUIAN CAMBRIDGE I/E Co., Ltd) has developed the market in South America, Middle East, Africa and Asia. We have our own manufacturing facilities in Ruian city of China.
The success of RUIAN CAMBRIDGE MACHINERY is a result of the working partnerships formed with our customers.
As a customer dedicated team, we work directly with customers to identify, develop and deliver solutions for their packaging material production needs. Our interest lies in selling a solution and a value added product.
At the Ruian Cambridge Machine Company, we believe that after sales service is a component of quality. This is why we have created an entire customer service department. We listen to our customers, implementing their feedback and ensuring that every machine we produce performs as it should for many years to come.
We are the Ruian Cambridge Machine Company, and we look forward to building good relationships with your firm.
