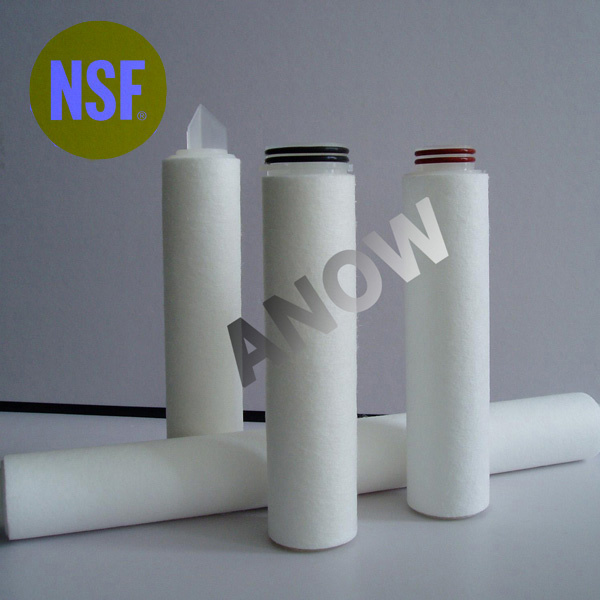

PP Process Water Filtration Element
LFPF multi-layer PPfilter cartridges are characterised by multiple layers of progressively pleated polypropylene depth filter material, featuring high dirt-holding capacity and high flow rates. They are optimized for the wide range ofprefiltration, especially for the retention of colloids and particles in beer filtration.
Features and Benefits
Graded pore structure
Reliable retention of particulates
Ideal for viscous and colloidal liquid filtration
Cost-effective for prefiltration
Quality
Cartridges produced in a controlled environment
Manufactured according to ISO9001 certified Quality Management System
Application
DIW Filtration
Chemical delivery system
Etching
Photolithography filtration
Developer
Stripper
Specification
| Materials of Construction |
| Filter Media | Multi-layer PP |
| Core, Cage | PP |
| End Caps | PP |
| O-rings/Gasket | Silicone/EPDM/Viton/TEV |
| Sealing technology | Thermal Bonding, No Adhesives |
| Dimensions |
| Diameter | Φ 70 |
| Length(in) | 5, 10, 20, 30, 40 |
| Filtration Area |
| ≥ 2.1~3.2ft2/10 in (≥ 0.2~0.3m2/250 mm) |
| Pore Size, μm |
| 0.5, 1.0, 3.0, 5.0, 10, 20 |
| Maximum Forward Differential Pressure |
4.2 bar@23ºC(60.9 psi @73.4ºF)
1.5 bar@85ºC(21.7 psi @185ºF) |
| Sanitization |
| May be hot water sanitized for 30 cycles using purified water at 85ºC(185ºF) for 30 minutes. |
