Dongguan Chenghao Machinery Co., Ltd. >> PP. PVC. PE. TPE. TPU Injection Machine Vertical Plastic Injection Machinery

PP. PVC. PE. TPE. TPU Injection Machine Vertical Plastic Injection Machinery

Name: PP. PVC. PE. TPE. TPU Injection Machine Vertical Plastic Injection Machinery
Brand: China-Manufacturer-Directory.com
SKU: 775582545
Availability: InStock
Rating: 4.6 (87 reviews)

Supplier:	Dongguan Chenghao Machinery Co., Ltd.
Price:	US $ 3800/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw Diamete:	32mm-80mm
Injection Pressure:	150MPa--250MPa
Injection Weight:	55-858g
Clamping Fore:	15-200 TF
Clamping Stroke:	190-350 mm
Min. Mold Height:	40-200mm
Ejector Force:	45-280kn
Color:	Blue,Green,Orange,White,Red
Warranty:	1 Year
Product Name:	Plastic Rubber Injection Moulding Machine
Type:	Tube Head Injection
Structure:	Vertical and Horizontal Composite
Plastic Type:	Thermoplastic
Plasticizing Way:	Screw Type
Clamping Way:	Hydraulic
Automation:	Automatic
Computerized:	Computerized
Certification:	UL

Product Description

Specification

Model		Unit	LC-15T-C	LC-20T-C	LC-25T-C
INJECTION UNIT	Screw Diameter	mm	26	28	30
	Theoretical Injection volume	cm3	47	65	86
	Injection Capacity (PS)	g(oz)	55/1.9	63/2.2	78/2.7
	Injection Pressure	kgf/cm2	1164	1164	1367
	Injection Rate	cm3/s	39	45	67
	Injection Speed	mm/s	85	85	100
	Screw Rotation Speed	r.p.m	0-215	0-215	0-215
CALMPING UNIT	Clamping Force	tf	15	20	25
	Opening Storke	mm	190	190	215
	Min Mold Height	mm	40	80	120
	Max Daylight	mm	230	270	335
	Distance Between Tie Bars	mm	280	310*130	360*200
	Ejector Stroke	mm	35	35	35
	Ejector Force	kN(tf)	1.3	1.3	1.7
OTHERS	System Pressure	kgf/cm2	140	140	140
	Oil Tank Capacity	L	75	80	100
	Electric Power	kW(HP)	2.2/3	2.2/3	4/5.5
	Heater Power	kW	2	2	2.4
	Machine Dimension (L×W×H)	mm	1150750 2150	1200750 2150	1200800 2300
	Machine Weight	ton	0.7	0.9	1.3

Product features

Small Plastic Injection Molding Machine Series:

l Equipped with joint die structure of direct pressure and operation device of high-speed clamping and slow-speed locking with low pressure to ensure safety of mold and high speed, also to increase production.

l Special hydraulic injection structure with built-in pressure tracing compensation device to ensure fast injection rate and stable injection pressure and secondary injection pressure maintaining design to make products of high quality and high precision.
l 2 section temperature to control injection speed, back pressure and screw speed, achieving stepless adjustment. Suitable for all kinds of engineering plastic parts' molding.
l Fixed bottom platen and movable upper platen to position insertion well. Equipped with ejector device for the finished product.
l Equipped with Nitriding steel screw and feed pipe, high torque hydraulic motor drive and multi section injection pressure to create excellent plastify.
l Equipped with electrical protection device to avoid wrong operation and ensure safety of repair.
l Feed pipe lifting and falling to make cleaning easy and improve operating efficiency.

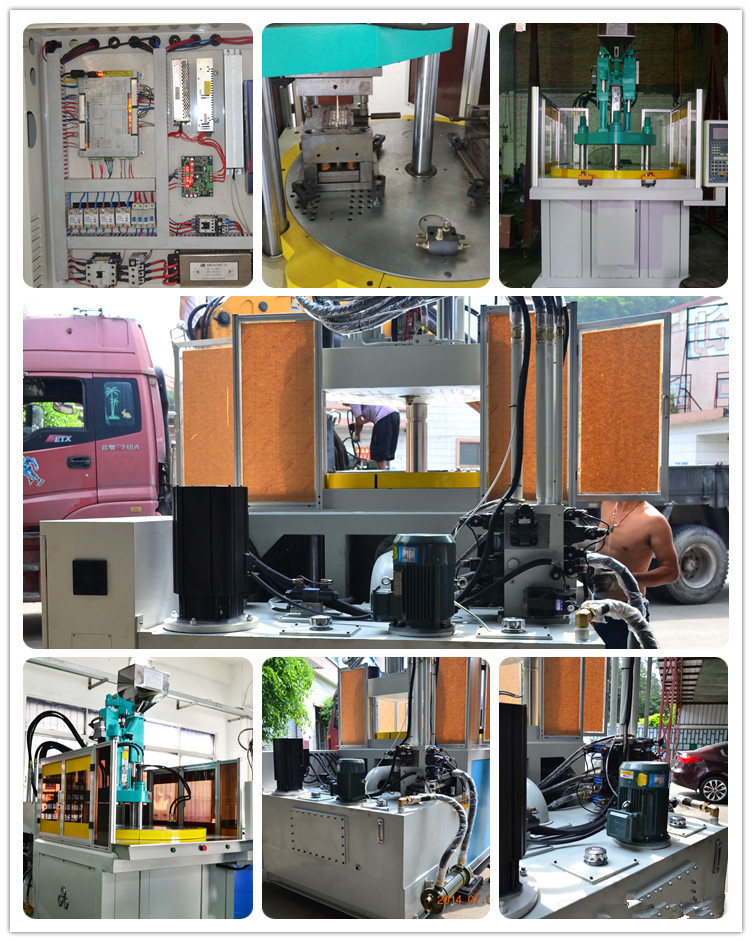

Product pitures

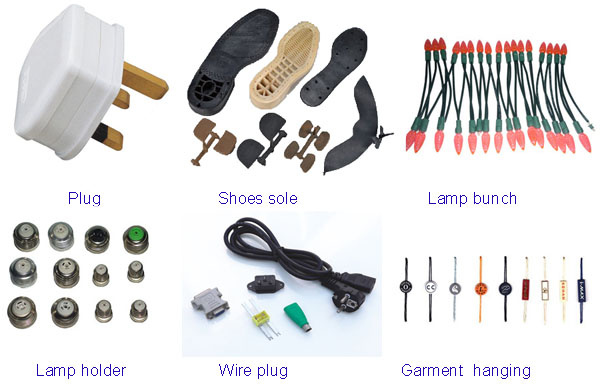

Injection machine can make

Within more than 10 years' development, Dongguan Chenghao machinery Co., Ltd is a professional manufacture of high grequency devices like plastic welding machine, synchronous fusing machines, blister machines and other high frequency mechanical accessories and molds. The increasingly competition in the industryispromoting us moving toward the goal of "rejuvenating the country, the industry and the market through quality, brand and reputation"

Except all kinds of machinery, the company also produces various auxiliary facilities. Together with its technical team, it helps customers develop leading products to meet different needs. "reserch and innovation, Pursuit of Excellence, quality First and World Based"condtitutes the company's quality policy. Chenghao machinery Co., Ltd warmly welcomes the sxisting and new customers from home and abroad. We are looking forwad to coopperating with you based on mutual reciprocity and mutual benefit for a better tomorrow, and we believe our cooperation will lead you to a great success.
