Product Specifications
Prod Model: |
HVS-50M |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Manual: |
Practical Type |
Product Name: |
Vickers Hardness Tester |
Model: |
Hvs-50m |
Testing Range: |
Hv8~Hv2900 |
Lens & Indenter Switch: |
Motorized Turret |
Load Control: |
Automatic (Loading/Dwell/Unloading) |
Dwell Time: |
Adjustable 0~60s |
Hardness Indication: |
1hv/LCD Display |
Illumination: |
Halogen Lamp Light Source |
Objectives: |
Observation:10X; Measurement:20X |
Type: |
Vickers Hardness Tester |
Measuring Range: |
HV |
Application: |
Ceramics and Glass |
Standard: |
GB/T |
Warranty: |
Warranty |
Rated Voltage: |
110V/220V |
Product Description

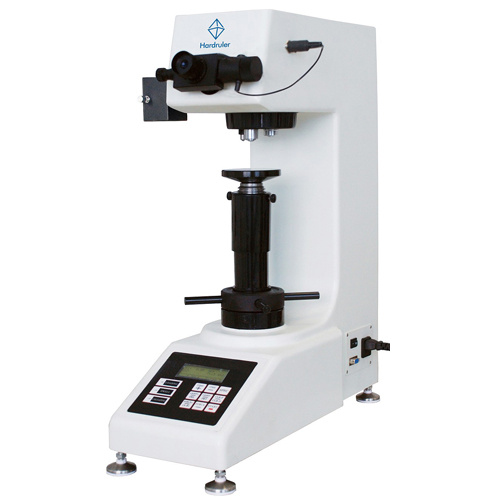

Practical Macro-Vickers Hardness Tester (HVS-50M)Usage:Model HVS-50 series digital Macro-Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Typical applications:1. Cemented carbide, steels, ceramics, non-ferrous metals
2. Thin plates, metallic foils, plating
3. Material strength, effect of heat treatment, depth of carburized or decarburized layer and flame hardened layer, effect of hardening, hardness resulting from welding or deposition
Features:1. Closed-loop system with load cell enhances the accuracy
2.2-way switchable optical paths
3. CCD video measurement system optional
Specifications |
Product name | Vickers Hardness Tester |
Model | HVS-50 | HVS-50M |
Vickers scales | HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50 |
Testing load | Kgf | 1, 2, 2.5, 3, 5, 10, 20, 30, 50 |
N | 9.8, 19.6, 24.5, 29.4, 49.03, 98, 196, 294, 490 |
Testing Range | HV8~HV2900 |
Lens & indenter Switch | Manual turret | Motorized turret |
Load control | Automatic (loading/dwell/unloading) |
Dwell time | Adjustable 0~60s |
Hardness indication | 1HV/LCD display |
Illumination | Halogen lamp light source |
Objectives | Observation:10x; measurement:20x |
Eyepiece | 10x |
Max. height of specimen | 170mm |
Instrument throat | 130mm |
Dimension (L*W*H) | 535×230×580mm |
Packing dimension | 630*460*710mm |
Gross/Net weight | 50kg/40kg |
Power supply | 220V or 110V AC, 50 or 60Hz |
Accuracy | Conforms to EN-ISO 6507 , ASTM E92, GB/T4340.2 |
Standard delivery |
Main unit | 1pcs |
Diamond Vickers indenter | 1pcs |
Objective 10x | 1pcs |
Objective 20x | 1pcs |
Digital eyepiece 10x | 1pcs |
Adjustable foot | 4pcs |
Level gauge | 1pcs |
Hardness test block | 2pcs |
Accessories case | 1pcs |
Anti-dust cover | 1pcs |
Instrument certificate | 1pcs |
Installation & user manual | 1pcs |
Dongguan Leader Precision Instrument Co., Ltd. is a hi-tech enterprise specializing in R&D, production and sales of optics, machinery and electronic precision measuring and testing instruments, our range includes: Video measuring system, profile projector, coordinate measuring machine, measuring microscope, linear scale and digital readout, video measuring machine, optical comparator, VMM, VMS, vision measuring machine, non-contact 2D video measuring system, Hardness tester, and also stereo microscope, biological microscope, LCD inspection microscope, metallographic microscope etc which are widely used in metrological, measuring, inspecting, testing and reverse engineering fields.
Our continuous excellent products supply sustainable value for our large client word-wide. With powerful strength and good reputation, our products have been exported to more than 30 countries. We are committed to raise the standards of our products and improve the services. We are dedicated to ensure superior products, timely delivery, competitive price and excellent after-sale service
We have a proficient and strong workforce, comprising of technically skilled professionals, who have rich experience in dimension measurement and data analysis in machinery, mould, electronic, aviation, automobile, plastic, gear, PCB circuit board, spring, connector, semiconductor, precision parts and so on.
We guarantee quality and high performance of our products and offer excellent services. Our continuous effort towards producing superior quality products and perfection has helped us to win the trust, confidence and assurance of the customers from all over the globe. Our products have received a great response and recognition in the customers. You can depend on our products for superiority, reliability and durability.
