Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
High Strength Bolt |
| Derusting: |
Ball Blast |
| Window: |
PVC or Aluminium Alloy Window |
| Materials: |
Q235b or Q345 |
| Door: |
Sliding Door or Automatic Rolling Door |
| Cutting: |
CNC Gas Cutting Machine |
| Type: |
Steel Structure |
| Painting: |
Automatic Powder Coating or Painting |
| Design: |
by Customized |
| Size: |
by Customized |
| Material: |
Steel Structure |
| Usage: |
Prefabricated Buildings |
| Certification: |
SGS |
Product Description
Detailed Steel Description
1. Certification: SGS Standard, GHD Standard, ISO9001: 2000 2. Outstanding overall robustness, anti-distortion capacity&earthquake&wind
Light steel structure ware house
2. Steel structure design common norms are as follows:
· "Cold-formed steel structure technical specifications" (GB50018-2002)
· "Construction Quality Acceptance of Steel" (GB50205-2001)
· "Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)
· "Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)
3. Commonly used steel grades and performance of steel
· Carbon structural steel: Q195, Q215, Q235, Q255, Q275, etc.
· High-strength low-alloy structural steel
· Quality carbon structural steel and alloy structural steel
· Special purpose steel
4Wall & roof can be used by steel sheet, EPS sandwich panel, rock wool sandwich panel & PU sandwich panel.
Introduction

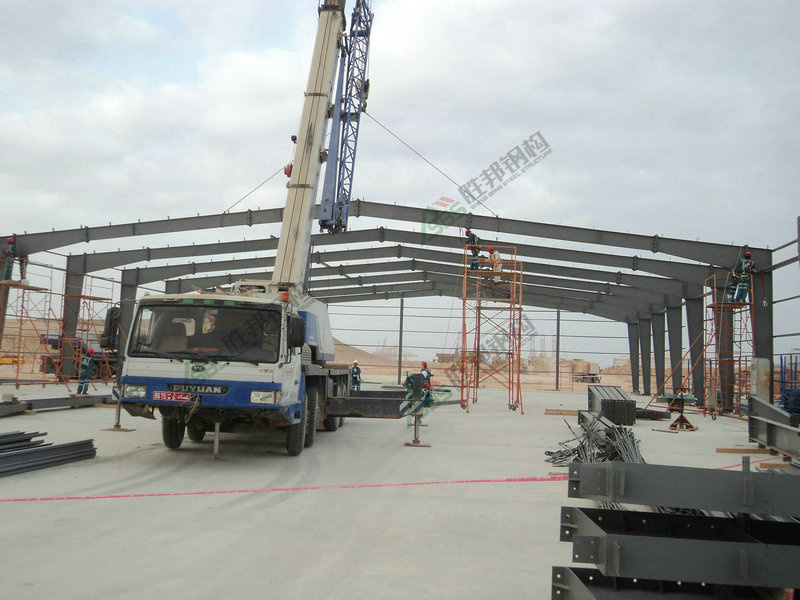

Prefabricated steel Structure workshop is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings. And the steel structure workshop is good at easy installation, stable structure, earthquake proofing, water proofing, energy conserving and environmental protection, etc
Advantages:
1. Wide span: Single span or multiple spans, the max span clear distance is 36m, without middle columns.
2. Low cost: Unit price range from USD35 to USD70/square meter FOB according to customer's request.
3. Fast construction and easy in installation
4. Long term service life: More than 50 years.
5. Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.
|
Types of Steel Structure |
|
Type |
Basic Parameter |
Light steel structure workshop
(solid-web rigid frame & with crane) |
roof type: single span slope roof
uniform steel structural beam-column with crane, roof frame is variable, slope roof, use high strenth bolt connection
pillar space: 6m~9m
span: 20m~30m
cornice height: 6m~9m
grade of slope: 1/20~1/10
crane loading: 5mt~10mt crane quantity: 1~4/span |
roof type: double spans slope roof
uniform cross section steel structural beam-column and roof framed, with two cranes, slope roof, use high strenth bolt connection, large span, slope of bedding plant save the indoor space, supprting column is in the middle of spans
pillar space: 6m~7.5m
span: 32m~60m
cornice height: 4m~9m
grade of slope: 1/20~1/10
crane loading: 5mt~10mt
crane quantity: 1~4/span |
Foshan Shengbang Steel Structure Co., Ltd. (for short "SBS") is a fast developing enterprises integrating marketing, design, development, manufacturing and construction. It has been approved and certified by international ISO9001: 2008 quality management system, and SGS factory system. We have trained many highly qualified marketing and technical personnel as well on-site construction team during recent years' fast development. Being customer demand-oriented, SBS provides a full range of services with rational, scientific and effective solutions, as a practical, progressive, innovative & solidarity company.
Our company prefabricated house is a new type environmental friendly product that adopts steel structure as frames, employs various plates and panels as surrounding protection system, uses high strength bolts as component connection. The prefabricated house is mainly used as modular house, office, cleaning workshop, cold storage room, wide span workshop, warehouse, exhibition hall, stadiums, hangars, steel-structure supermarkets, high-rise steel constructions, logistics center, container house and so on. Our house has been sold well to Middle East, Africa, Southeast Asia, South America and other more than 30 countries and areas.
Foshan Shengbang Steel Structure Co., Ltd. Possesses professional large-scale steel structure production equipments and the automatic spraying production line, so we can satisfy the different customers demand. We takes "build your future" as mission and takes company growth as premise. The company has trained many high quality marketing personnel, professional technician and construction workers. We take the customers' demand as the guidances, then provide reasonable, scientific and effective solution for customers. We regard practical growth, innovation and group solidarity as our company spirit, so that we can offer all-round service to customers.
Foshan Shengbang Steel Structure Co., Ltd. Will cooperate sincerely with the customers and build better future under the principle of win-win cooperation.
