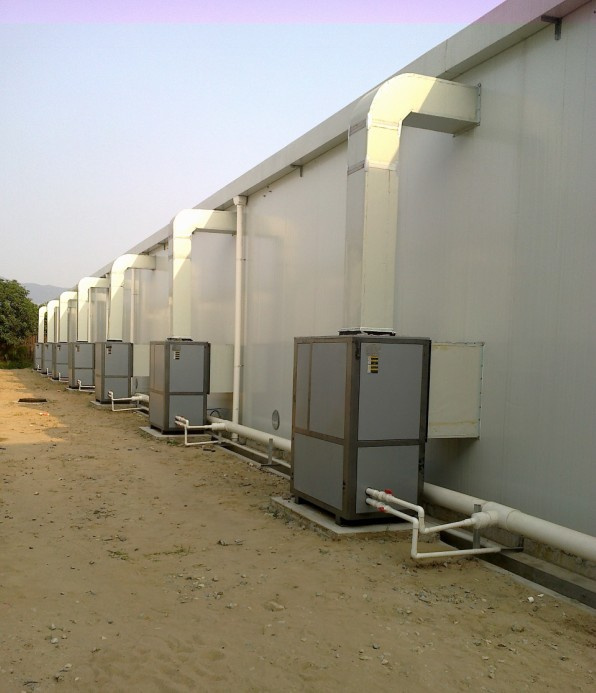

Precise Control Temperature CO2 Humidity Mushroom Farm Air Conditioner

Name: Precise Control Temperature CO2 Humidity Mushroom Farm Air Conditioner
Brand: china-manufacturer-directory.com
SKU: 720955715
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Edible Mushroom cultivation temperature control Machine

Product features

>> Wide range and Precise control leaving air temp
Make the minimum accurate to be 0.1 ° C.

>> Proportional control new air input the room, it can
Precise control the concentration of CO2 in the mushroom
Room. It has the faction of supply new air, middle
Effect of purfication and precooling.

>> Humidity testing and control provide mushroom
Room illumination control signal.

>> Return air purification and mushroom room air
Circulation, The uniformity of air supply all of these make
A equilibrium production environment in the mushroom.

Advantages

>> All in one structure, indoor and outdoor unit are
Integrated. It is easy installation and can be used just
Want to connect the power and ventilation duct;

>> Evaporator adopt anti-oxidation fin, big wind
Centrifugal fan and dampproof motor; Stainless steel
Bellows so it suitable to be used in the high humidity
Work environment.

>> Condensate water recycling can improve EER and
Environmental cleanliness.

>> The machine is detected fully in the plant, the
Quality is reliable;

>> Automatic detection fault shorten maintenance time

>> Safe and reliable operation, strong electricity is
Outside the mushroom room, no fire hazard.

>> Reduce investment
It can use gas chamber and new fans.
It can be used without hermetic cabin
Reduce the intelligent electric cabinet.
Reduce the mushroom room height more than 50 cm.

model		QSB17S	QSB27S	QSB33S	QSB40S	QSB50S	QSB66S	QSB15F	QSB24F	QSB30F	QSB36F	QSB45F	QSB59F
cooling capacity	kw	19.7	26.5	39.4	47.6	59.1	83.4	17.4	28.4	34.8	42.3	52.2	74.2
cooling capacity	kcal	16942	22790	33884	40936	50826	71724	14964	24424	29928	36378	44892	63812
COP		5.93	6.35	5.93	6.49	5.93	6.6	4.14	4.58	4.14	4.53	4.14	4.5
input power		3PH-380V/50HZ
compressor	mode	full-hermetic scroll style compressor
	horsepower	5HP	8HP	10HP	12HP	15HP	20HP	5HP	8HP	10HP	12HP	15HP	20HP
	input power(kw)	3.32	4.17	6.64	7.34	9.96	12.64	4.2	6.2	8.4	9.33	12.6	16.48
	rated load current(A)	7.04	8.86	14.08	13.67	21.12	24.76	8.02	11.7	16.04	16.47	24.06	29.58
power of centrifugal fan(kw)		0.4	1	2.2	2.2	1.5	3.5	0.4	1	2.2	2.2	1.5	3.5
matching wire (mm2)		6	6	6	10	10	10	6	6	6	10	10	10
way to unload (%)		0, 100		0, 50, 100	0, 100	33, 66, 100	0, 50, 100	0, 100		0, 50, 100	0, 100	33, 66, 100	0, 50, 100
refrigerant		R22
condenser	mode	High efficient external screwed shell and tube						High efficient inside screw tube shinizu fin style
	cooling water flow(m3/h)	3.9	5.3	7.9	9.4	11.8	16.5
	cooling water temperature	inlet water 30 degrees, outlet water 35degrees, air condenser temperature 50 degrees
evaporator	mode	High efficient inside screw tube shinizu fin style
	normal air vaume(m3/h)	2800	4200	5300	6500	8000	10800	2800	4200	5300	6500	8000	10800
	normal static press(kpa)	220	250	250	300	300	350	220	250	250	300	300	350
	evaporating temperature	evaporating temperature 12 degrees
throttle methods		external balance expansion valve
purfication device		return air primary filter, fresh air intermediate-acting filter
control function		fill up air humidity, illumination signal, microcirculation
safty protection		leakage protection, overpressure and anti-phase protection, rerigerant abnormality protection, compressor over temperature protection, lack of water protection, andautomatic fault detection, etc.
piping connection	cooling water in& outlet diameter	DN25	DN40	DN40	DN40	DN50	DN50
weight (kgs)		240	290	314	375	475	533	360	360	379	435	535	612
overall size(LxWxH)mm		110	1300	1500	1600	1800	2100	1100	1500	1600	1600	1900	2100
		900	750	1050	1050	1050	1050	900	900	1050	1050	1250	1250
		1630	1630	1630	1700	1700	1830	1680	1680	1800	1800	2060	2060

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Mushroom Machine
Cooling Capacit:	2.5-42.9kw
Compressor Mode:	Full-Hermetic Scroll Soft Type
Condenser Mode:	Inside Screwed Shell and Tube
Style:	Double-Temperature
Power Form:	380V/50Hz/3p
Refrigerant:	R22/R134A/R404A
Usage:	for Refrigerate
Cooling Method:	Direct Cooling
Certification:	ISO
