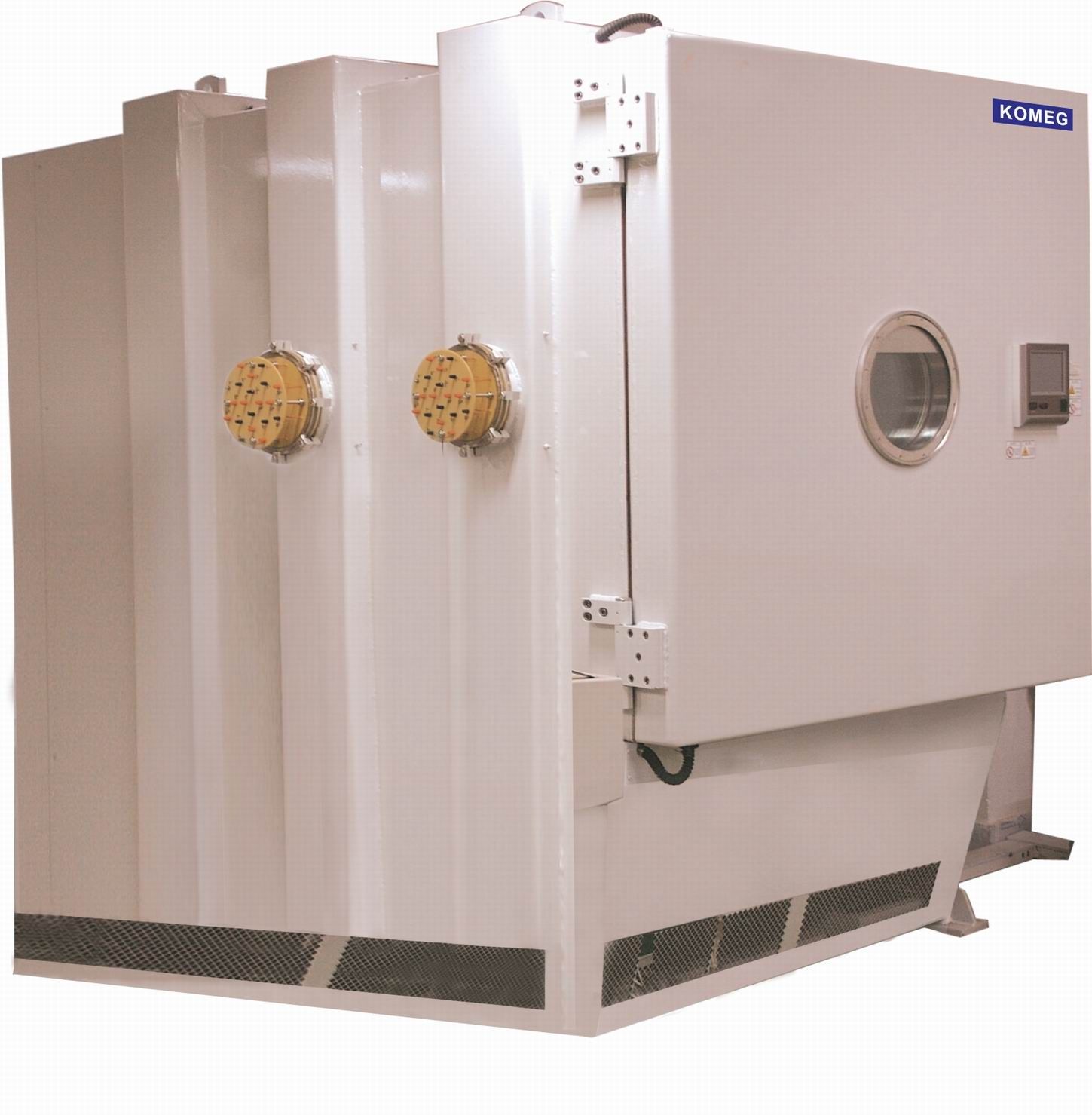

Application (Precise drying test chamber)
Environmental adaptability and reliability test for the instruments and meters, electrical products, materials, spare parts, equipments, etc at a low pressure, high temperature, low temperature, under the effect of single factor or multiple factors at the same time. Test for electric performance parameters of the specimen. Mainly used in aviation, aerospace, information, electronics and other industries.
Features
External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
Adopts international brand of imported parts for cooling system to improve operation reliability
High precision and stable performance with touch screen controller, friendly Man-Machine interface.
Multiple layers of safety device to easy maintenance.
Why should you choose KOMEG?
1. Dedicate touch and excellent user experience;
2. Unique and compact design, top grade appearance, stable performance and easy operation;
3. Can simulate a wide range of temperature and humidity environments;
4. Capable of testing large components, assemblies, and finished products;
5. Customized sizes and comfigurations available;
6. One year warranty
We Supply the following products:
Programmable Constant Temperature and Humidity Test Chamber
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
|
Specifications |
|
|
Model |
KU-1000S |
|
Inner Size (D*W*H)Cm |
100*100*100 |
|
Total Power ( KW ) |
18 |
|
Chamber Volume ( L ) |
1000 |
|
Performance |
Temp range |
-70 °C~ +150 °C |
|
Temp constancy |
±0.5 % |
|
Temp deviation |
≥ 100 °C , ±3.0 °C( at constant pressure with empty load ) |
|
< 100°C , ±2.0°C( at constant pressure with empty load ) |
|
Cooling rate |
0.7°C~ 1.0°C /min ( Overall average ) |
|
Pressure range |
Constant pressure ~ 1kPa |
|
Pressure constancy |
When ≥ 40kPa, ±2kPa, 4kPa ~ 40pKa ±0.5kPa, when ≤ 4kPa, ±0.1kPa |
|
Depressurization rate |
Constant pressure ~ 1kPa≤30mins ( Normal temp ) |
|
Pressure recovery rate |
10kPa/Min(adjustable ) |
|
Material |
Exterior material |
Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate |
|
Interior material |
Stainless steel ( SUS304 ) |
|
Pressurized parts |
High quality steel plate(Rust proof & Plastic spray treated) |
|
Insulation material |
High quality glass wool |
|
Cooling System |
Compressor |
Semi-Hermetic Compressor |
|
Cooling Mode |
Water cooled |
|
Temp regulating method |
Balanced Temperature & Humidity Control System (BTHC ) |
|
Pump |
Rotary vane type vacuum pump |
|
Heater |
Iron-chrome wire heater |
|
Sight window |
Circular viewing glass incorporating heat generator |
|
Temp Sensor |
Pt-100 |
|
Controller |
Touch Screen Controller |
|
Safety Devices |
Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm |
|
Standard Accessory |
Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 |
|
Power |
AC380V/50Hz, 3Phase 5 wires+ Ground Wire. |
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
KOMEG Technology Industrial is famous for its KOMEG star brand of environmental test equipment in China since 1990. KOMEG has specialized in climatic test chambers, thermal shock test chambers, walk-in chambers, burn-in room and aging test chambers, drying ovens, salt spray testers, medical laboratory equipment etc. KOMEG factory is located in Dongguan, covering an area of 5, 000 sqm, with over 52 employees including 26 R&D engineers. KOMEG also have offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone.
Born for quality, test for future is always our philosophy. Better idea, better design and better quality is our aim. We strive for continuous innovation, releasing no less than 5 new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more from KOMEG when working with us. And to ensure your specific test standards are met, the key components and parts are using imported famous brand. That's why SGS, KONICA MINOLTA, SENKO, Midea, TCL and Huawei are among our long-term clients.
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipments are 7*24 hour tested before delivery. That explain why KOMEG is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let KOMEG 23 years of professional experience work for you too. And meanwhile, we look forward to helping with you.
Distributors welcomed, Inquire today to get your order started
