Product Specifications
| Prod Model: |
HT-G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
| Automatic Grade: |
Manual Control |
Product Description
Be widely used in luggage,hand bag,packaging,sponge etc.
Features:

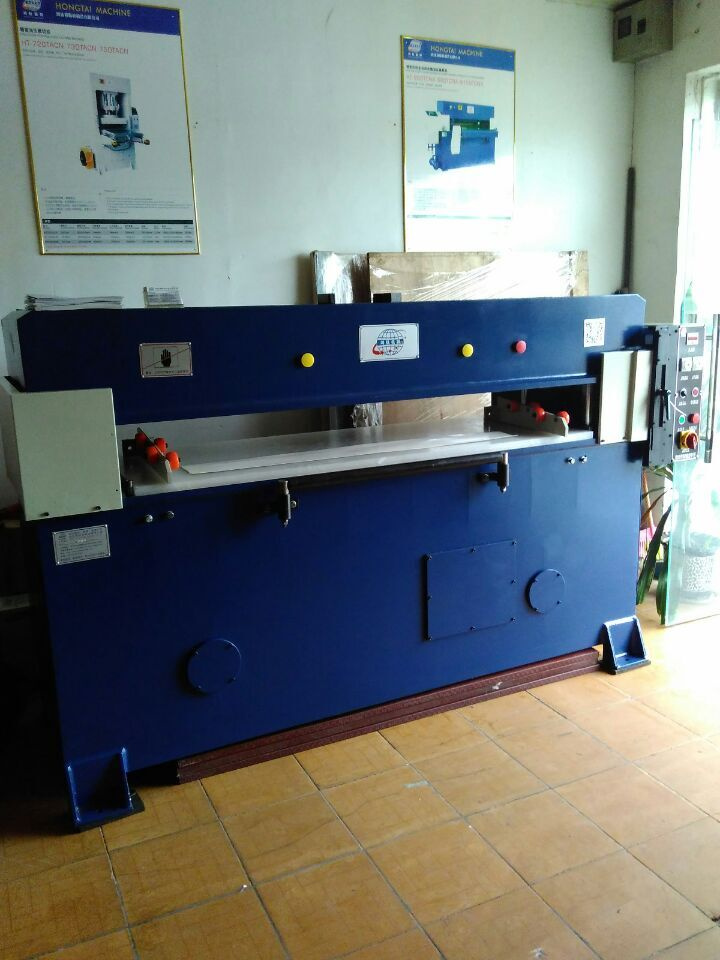

Double-cylinders,four-column,self-balancing connecting rod which can maintain equal pressure of each cutting position.
Series G machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting.
When the upper board pressure down and contact to the blade automatically,it can cut slowly,so that there is no size error between the top and the bottom materials.
The unique setting construction,combine with the cutting knife and cutting height which can make stoke simple and accurate.
Central automatic lubrication systems can ensure precision and durability of the machine.
Model |
Cutting force |
Dimension |
Cutting Area |
Mo |
Stroke | Net
Weight |
HT-G
30T/63″ |
30Tons |
2330×1320×1260mm |
610×1600mm |
2.2kw |
50-160mm |
1900kg |
HT-G
30T/63″ |
30Tons |
2330×1320×1260mm |
610×1600mm |
2.2kw |
50-240mm |
2000kg |
HT-G
30T/48″ |
30Tons |
1950×1320×1260mm |
610×1220mm |
2.2kw |
50-240mm |
1900kg |
HT-G
40T/63″ |
40Tons |
2330×1320×1260mm |
610×1600mm |
4kw |
50-160mm |
2800kg |
HT-G
40T/48″ |
40Tons |
1950×1320×1260mm |
610×1220mm |
4kw |
50-240mm |
2400kg |
HT-G
50T/63″ |
50Tons |
2330×1320×1260mm |
610×1600mm |
4kw |
50-160mm |
2900kg |
HT-G
50T/48″ |
50Tons |
1950×1320×1260mm |
610×1220mm |
4kw |
50-240mm |
2800kg |
www.htcutpress.com
Shenzhen Hongtai Cutting Machine Co., Ltd is a professional manufacturer which produce hydraulic cutting machine and auxiliary equipment. Our company has nearly 30 years experiences in producing cutting machine, and we hold the strong and profound technical capability, excellent processing equipment, perfect management and rigorous quality control system. Our products are suitable for leather, clothing, footwear, toys, packaging, electronic equipment and automotive interior industry and other industries.
Our cutting machine had used high precision micro-controller to make the product more accurate, more reliable and more durable. At the same time, it has automatic balancing device to keep the advantages that average pressure, strong cutting force, low failure rate, quick cutting speed, low noise and slow power consumption.
We have 8 to 300 tons cutting machines and various kinds of electric control, our customers can also customize the machine according to their own designs. Our products are in good quality, because we have perfect design, rich experience, reliable system. If you're looking for cutting machine, please contact with Hongtai cutting machine - the professional manufacturer!
