Precise Overload Protection Device
Product Specifications
| Prod Model: |
UTL50; UTL65; UTL89; UTL127; UTL178 |
| Markets: |
North America,South America,Southeast Asia,Mid East,Western Europe |
| Single Nut Adjustment: |
The Washer Protect The Nut From Loosen |
| 3 Bolts To Adjust: |
Adjusting Nut to Fix The Pilot Plate |
| Steel Parts: |
Colorful Zinc Coating |
| Steel Pats: |
Blackening |
| Manufacturing Method: |
Cut Gear |
| Material: |
Steel 1045, S45c, C45e |
| Hardness: |
Blackening |
| Toothed Portion Shape: |
No Gear |
| Type: |
Not Gear |
Product Description

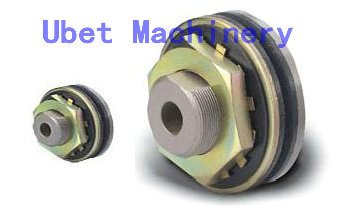

Features;Ubet Machinery Torque Limitmer
In case of sudden loading, over loading or power off in transmission system, Ubet Torque Limiter will slide automatically to protect the equipment. When the loading come back to normal, the device will automatically work again without adjusting or setting. Ubet Torque limiter operates through the spring mounted upon the friction facing. The sliding torque can be preset by adjusting the nut or bolt. The torque limiter can be sued matching with the center parts clamped closely between tow friction faces, such as sprockets, gears, pulleys or flanges.
Comparing with one-time safety pin system, Ubet Torque Limiter operates in line with appropriate spring loading and surface pressure to ensure the comparatively longer sliding time, recovering the presetting, and longer and continual protection as well.Ubet Torque Limiter is widely used in baking, bottling, food processing, machine tool, material handling, mining, packaging or printing industries. 1. precise overload protection
2. easy manual adjustment
3. factory torque setting available
4. bored to fit for easy installation

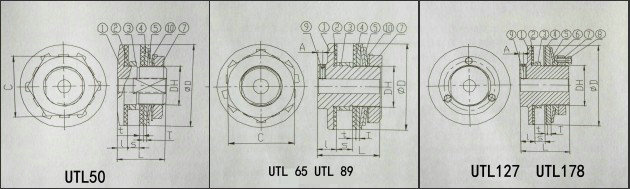

Sizes and types:| Item No. | Inner Diameter | Outter Diameter | Torque Range (Nm) |
| UTL50-1 | 8-14 | 50 | 2.94-9.8 |
| UTL50-2 | 6.86-19.6 |
| UTL65-1 | 10-22 | 65 | 6.86-27.44 |
| UTL65-2 | 13.72-53.9 |
| UTL89-1 | 17-25 | 89 | 19.6-74.48 |
| UTL89-2 | 34.3-148.96 |
| UTL127-1 | 20-42 | 127 | 46.08-209.72 |
| UTL127-2 | 88.2-420.42 |
| UTL178-1 | 30-64 | 178 | 115.64-569.38 |
| UTL178-2 | 223.4-1087.8 |
| Type 1 refers to one disc spring assembled; Type 2 refers to two disc springs assembled. |
Ubet Machinery is a global supplier for Mechanical Power Transmission Parts. It is aimed to provide best quality products at best price. With many years of experience in this industry, it can offer customers practical value.
It focuses mainly on Keyless Locking Devices, Timing Belt Pulleys, Nylon Sleeve Couplings/ Curved-tooth Gear Couplings, Jaw Couplings, Gears and other parts. It boasts a team with rich experience in this industry, focusing on global market. Customers are mostly from Europ, North America, South America, Southeast Asia and other regions.
Hight standard quality, delivery punctuality, competitive price and reliability are it's core value for customer. Any of your inquires or comments will highly be appreciated.
