Product Specifications
| Prod Model: |
AT2818 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
264mm (Width)X107mm(Height)X350mm(Depth) 4kg |
| Usage: |
Electric Component Tester |
| Customized: |
Non-Customized |
Product Description
1. AT2818 adopts true-color TFT-LCD and English operation interface (Chinese also available). AT2818 (Rev B2.0) has been upgraded into continuous frequency with the resolution of 0.001Hz.
Four parameters can be measured at the same time by AT2818, any parameter can be set arbitrarily. Both main & sub parameters can be displayed in 6 dgt after the improvement. AT2818 can not only scan 10 kinds of frequency or voltage level, but also correct three group of user frequency so as to improve the accuracy.

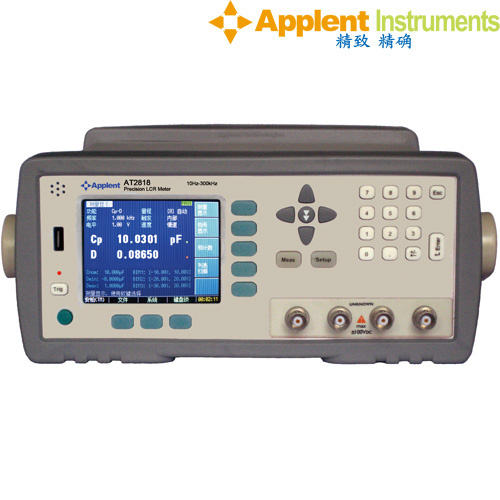

AT2818 Precision LCR Meter with data acquisition software
2. Parameters
CS-RS, CS-D, Cp-RP, Cp-D, Lp-RP, Lp-Q, Ls-RS, Ls-Q, RS-Q, R-X, Z-θ Rad, Z-θ Deg
Monitor Parameters
Z, D, Q, θ R, θ D, R, X, G, B, Y, VAC, Iac, Δ , Δ %
Basic Accuracy
0.05% ± 5 dgt
Frequency
10Hz - 300kHz (continuous frequency, frequency resolution 0.001Hz)
Display Range
L: 0.00001μ H-999999H C: 0.00001pF - 999999μ F
R, Z: 0.00001Ω - 99.9999MΩ W D, Q: 0.00001-999999
(deg): -179.999 ° -179.999 ° ° (rad): -3.14159-3.14159
Δ %: -999999% - 999999%
Source Resistance
30Ω , 50Ω , 100Ω
Range
Automatic, Manual, and nominal, 9 ranges
Max Reading
6 digital,
Principle parameter: 999999; Sub parameter: 999999; Monitor parameter: 999999
Signal Level
0.01V - 2.00V (10mV Step)
Speed
30 times/second, 10 times/second, 6 times/second, 3 times/second
1-256 times average is available
Comparator
14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG; Count Function: Max - 999999
List Scanning
10 group frequency and level scanning measurement
Adjustment
Open & Short circuit sweep frequency reset, 3 point frequency reset and load calibration.
Files
10 group files to save user's setting, 1 group to save system data real-time
Interface
RS232C, ExHandler interface, standard configuration USB Disc interface (article 10000 data)
Others
LCR Automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD Display
GENERAL FEATURES
Power Supply
Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Max Power: 20VA
Dimension & Weight
264mm (width)x107mm(height)x350mm(depth) 4kg
ORDERING INFORMATION
Accessories
ATL501: Test cable ATL607: Test Fixture
ATL600: Short-circuit device ATL801: 232 Communication cable
Optional Accessories
ATL608 SMD patch clamp ATL508: SMD patch test clip
ATS2818: Data acquisition software
| AT2818 Digital LCR Meter |
SPECIFICATIONS |
Parameters |
Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,Rs-Q,R-X,Z-θrad,Z-θdeg |
Monitor Parameters |
Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% |
Basic Accuracy |
0.05% ± 5 dgt |
Frequency |
10Hz - 300kHz (continuous frequency, frequency resolution 0.001Hz) |
Display Range |
L: 0.00001μH-999999H C: 0.00001pF - 999999μF
R,Z: 0.00001Ω - 99.9999MΩW D: 0.00001 - 9.99999
Q: 0.00001 - 99999.9
Θ(deg): -179.999 ° -179.999 °° Θ(rad) : -3.14159 – 3.14159
Δ%: -999999% - 999999% |
Source Resistance |
30Ω, 50Ω, 100Ω |
Range |
Automatic, Manual, and nominal, 9 ranges |
Max Reading |
6 digital
principle parameter: 999999; sub parameter:999999; monitor parameter: 999999 |
Signal Level |
0.01V - 2.00V (10mV Step) |
Speed |
30 times/second, 10 times/second, 6 times/second, 3 times/second
1-256 times average is available |
Comparator |
14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG; Count Function: Max - 999999 |
List Scanning |
10 group frequency and level scanning measurement |
Adjustment |
Open & Short circuit sweep frequency reset, 3 point frequency reset and load calibration. |
Files |
10 group files to save user's setting, 1 group to save system data real-time |
Interface |
RS232C, ExHandler interface, standard configuration USB Disc interface (article 10000 data) |
Others |
LCR Automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD Display |
GENERAL FEATURES |
Power Supply |
Voltage: 90V AC-250V AC Frequency: 50Hz-60Hz Max Power: 20VA |
Dimension & Weight | 264mm (width)x107mm(height)x350mm(depth) 4kg |
ORDERING INFORMATION |
Accessories |
ATL501: Test cable
ATL601: Test Fixture
ATL600: Short-circuit device
ATL108: 232 Communication cable |
Optional Accessories |
ATL608 SMD patch clamp
ATL508: SMD patch test clip
ATS2818: Data acquisition software
ATL508A: SMD patch test clip |
