Product Specifications
| Markets: |
North America,South America,Oceania,Western Europe |
| Precision Machining: |
Precision Machining |
| CNC Machining: |
Machining |
| Manufacturing Method: |
Cast Gear |
| Toothed Portion Shape: |
Bevel Wheel |
| Type: |
Circular Gear |
Product Description

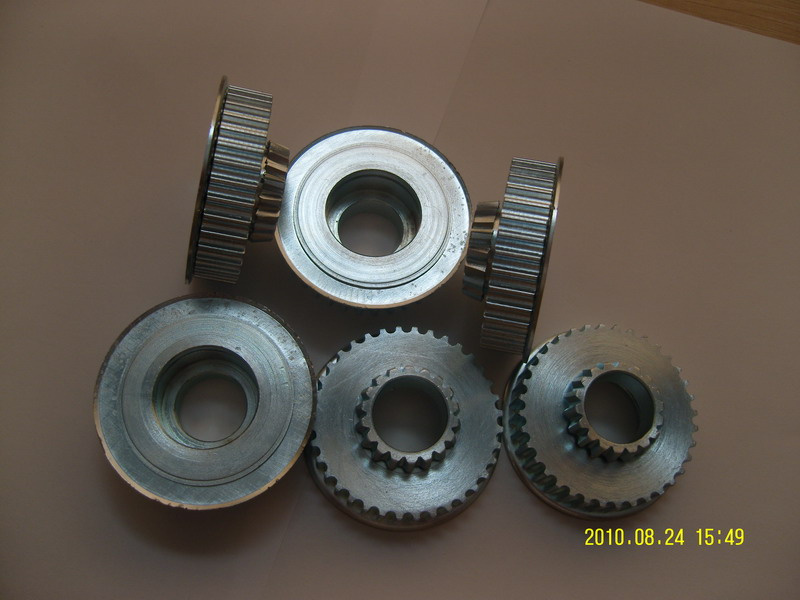

1. Gears
2. Standard: ISO, GB, JIS, DIN, AGMA and non-standard.
3. Module: 0.8~10.
4. Material: Carbon steel, stainless steel, plasitc, aluminium alloy, bronze, brass.
5. Surface treatment: Carburizing, hardening and tempering, nitriding, high frequency treatment.
6. Machine: CNC engine lathe, milling machine, drilling machine, hobbing machine, grinder, gear shaper.
7. Small order acceptable.
8. Packing: Wooden or carton.
We also have very good relationship with many local foundries and machining shops, so even if our capacity can not meet your requirements, we can also source for you the very products you need with the best prices.
Categories |
Type |
Processing Range |
Processing Precision |
Standard |
Involute Gear |
Cylindrical Gears |
Modulus: M0.8----M10
Diameter: Φ 10----Φ 1000 |
Grade 5 ------- Grade 9 |
GB10095— 88
(ISO1328---1975) |
Helical Gears |
Modulus: M0.8----M10
Diameter: Φ 10----Φ 1000
Spiral Angle: ß = 0° --- 45° |
Grade 5 ------- Grade 8 |
GB10095— 88
(ISO1328---1975) |
Cylindrical Internal Gears |
Modulus: M1----M6
Diameter: < =Φ 400
|
Grade 7 ------- Grade 9 |
GB10095— 88
(ISO1328---1975) |
Bevel Gear |
Straight Bevel Gears |
Modulus: M1----M8
Diameter: Φ 10----Φ 600, Spiral Angle: ß = 0° |
Grade 7 ------- Grade 9 |
GB11365— 89
|
Spiral Bevel Gears(Gleason System) |
Modulus: M0.5----M10
Diameter: < =Φ 800
Spiral Angle: ß = 0° --- 50° |
Grade 7 ------- Grade 9 |
GB11365— 89
|
Hypoid Bevel Gears |
Modulus: M1----M10
Diameter: < =Φ 800
Spiral Angle: ß = 0° --- 50° |
Grade 7 ------- Grade 9 |
GB11365— 89
|
Worm |
|
Modulus: M1----M8
Φ 20---Φ 800 |
Grade 7 ------- Grade 9 |
GB10089— 88
|
Spline |
Rectangular Spline, Hole |
Diameter: Φ 20---Φ 200
Lenth< =1000 |
According to drawing |
|
Involute Spline Shaft |
Modulus: M1----M8
Lenth< =1000 |
According to drawing |
|
Chain Wheel |
|
Diameter: Φ 20---Φ 600
1/8 inch-----5/8 inch |
According to drawing |
|
Others | 1. turner, miller, planer, grinder |
|
According to drawing |
|
| Heat Treatment: Normalizing, Hardening and tempering, Back fire, Carburized Quenching, high frequency quenching |
NINGBO OEM INDUSTRY MANUFACTURER Ltd. Is a leading OEM/ODM custom metal fabrication parts factory in NINGBO, China, which is well-known in producing custom component parts from a variety of base materials for a multitude of industries. We provide examples of specific CNC machining parts as well as precision metal stamping capabilities for the following metals: Aluminum, Brass, Stainless Steel, Beryllium Copper, Inconel, plastic, etc.
1. Our CNC Machining Capabilities:
One 4 axes Milling Center+32 set 2~3 axes CNC Lathe Machinery
Tolerance: +/-0.005mm
ISO 9001: 2008 Certified, DFARS & RoHS Compliant
Parts complected produced according to your drawings or samples.
LEAN Manufacturing Award Winner
2. Our Custom Metal Stamping Capabilities
Stamping quantities from 250 to 250, 000
Low Cost Tooling; Save up to 80% of conventional tooling cost
ISO 9001: 2008 Certified, DFARS & RoHS Compliant
Parts complected produced according to your drawings or samples.
LEAN Manufacturing Award Winner
Backed by more then 15 years of custom-engineered parts manufacturing experience, we make customized parts and assemblies based on your samples and specifications. Our parts undergo rigorous testing using a suite of advanced machines, including high-mass and high-velocity impact testers, transmittance pass testers, prism pass testers, filtration testers, profile projectors, vibration testers, salt-spray testers and more. And since our manufacturing processes are ISO 9001: 2000-certified, you know you'll get consistency with every shipment.
To create precision products, our engineers use AutoCAD, SolidWorks, and PRO/E software during the design phase. We test all materials before production begins, and perform in-process and pre-shipment QC tests as well. With the combination of our capability, we are able to provide customers with the product total solution in many different industries.
Our superior team will get sufficient understanding of your needs, analyze and integrate the resources, develop the product in your design and manufacture for you. We are the partner that you can trust. We know what you need, and we make what you want.
