Product Specifications
| Prod Model: |
portal frame |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Material: |
Steel Structure |
| Usage: |
Workshop |
| Certification: |
BV |
| Customized: |
Customized |
Product Description
Specifications
Steel structure workshop
1. ISO9001:2008, SGS and BV Certification
2. Structural safety and reliability
steel structure workshop warehouse building design, manufacture and installation Characteristics
1. Enviromental friendly
2. Lower cost and maintenance
3. Long using time up to 50 years
4. Stable and earthquake resistance up to 9 grade
5. Fast construction, time saving and labor saving
6. Good appearance
Used:
The steel workshop warehouse building is widely used for workshop plant, warehouse, office building, steel shed, aircraft hangar etc.Technical Parameters
Item Name | steel structure workshop warehouse building |
Main Material | Q235/Q345 Welded H Beam and Hot Rolled Section Steel |
Surface | Painted or Hot Dip Galvanized |
Roof & Wall Panel | EPS Sandwich panel /Single Corrugated Steel Sheet/ Colour sheet with Glass-wool, for customers choose |
Window | PVC Steel or Aluminum Alloy |
Door | Sliding Door or Rolling Up Door |
Service | Design, Fabrication and Installation |
We can make quotation according to customer's drawing or requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation. |
Design software: Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc |
Packing | According to customer's requirement |
Load into 40/20GP,40HQ or 40OT |

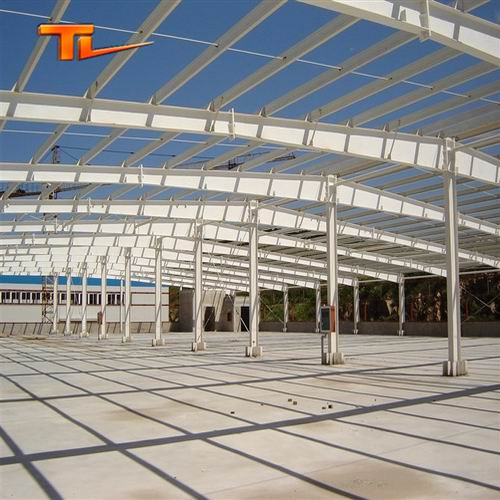

Main steel structure frame:

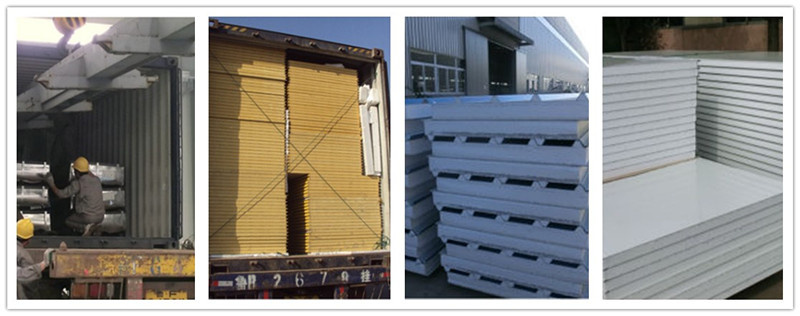

Roof & Wall Protections

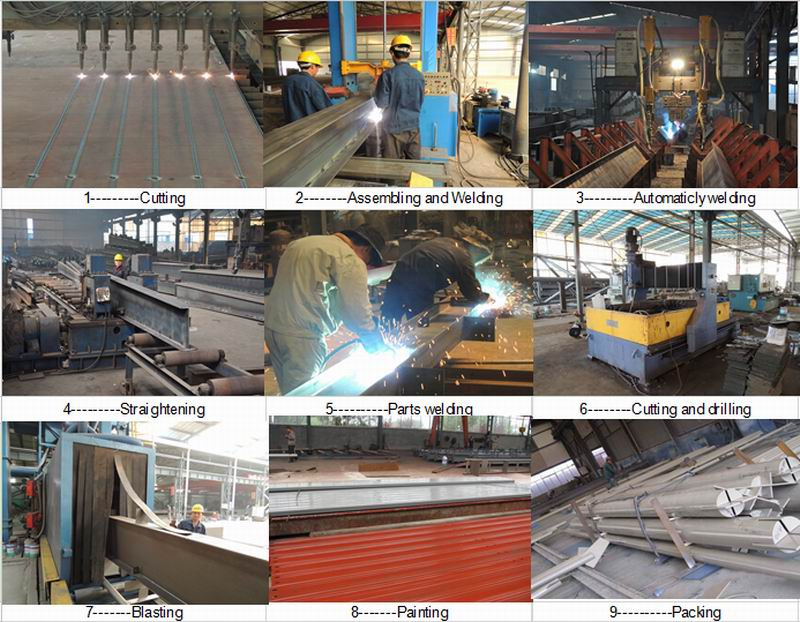

Steel Structure WorkshopManufacturing
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
Company Information:
* Product scope:
steel structure warehouse/workshop/hangar/garage/poultry house, container house, prefabricated home,sandwich panel, welded H steel,C/Z channel,corrugated steel sheet,etc.
* Products&Service Scope:
Design&Engineering Service, Steel Building,Space Frames, Portable Cabins, Tubular Steel Structures,basic building elements(built-up welded H-section , hot-rolled H-section, channel, steel column, steel beam),standard frames, secondary framing, roof & wall materials, Tempcon (sandwich) panels
* Engineering Design Software:
AutoCAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc
* Certificate:
ISO9001:2008, BV Certification and SGS Certification
Contacting Information:
TEL.: 86 532 67776933
MOBILE: 15706391757
Our company was established in 2003, and is located in Weifang City, Shandong Province, with the registered capital of USD2, 670, 000. We have professional construction ability of steel structure engineering, specializing in steel structure designing, production and installation.
Our company compromises traditional architectural art and modern architectural idea, taking the lead in the introduction of steel structure manufacture and installation technology. Meanwhile, we are collocated with flame cutting machine, submerged arc welding machine and impeller blasting machine. Our products are designed, processed and installed stringently in accordance with ISO9001 Quality Management System. Our products are widely applied for modern industrial workshop, storehouse, big gymnasium, culture center, industrial park, high-rise steel structure building and so on.
There are 312 emplyees working at present, including 27 senior engineer which design drawing with PKPM, AUTOCAD, TEKLA etc., provide best and most economical solutions in time and professional manner.
