Prefab Low Cost Steel Construction Building

Name: Prefab Low Cost Steel Construction Building
Brand: china-manufacturer-directory.com
SKU: 695985362
Availability: InStock
Rating: 5 (139 reviews)

Supplier:	Qingdao Xinguangzheng Machinery Equipment Group Co., Ltd.
Price:	US $ 40-50/Square Meter
Min Order:	10000/Square Meter
Quantity::
Trade Terms:	FOB,CFR,EXW
Payments:

Product Specifications

Prod Model:	FW-SSW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Qingdao China(Mainland)
Brand:	Xgz
Wall:	Sanwich Pannel
Surface:	Galvanized or Painted
Anti-Corrosion:	Yes
Wind Snow Resistant:	Yes
Dimensions:	as Your Requirement
Type:	H-Section Steel
Application:	Steel Structure Bridge
Standard:	BS
Member:	Steel Column
Trademark:	Carbon Structural Steel
Connection Form:	Bolt Connection
Carbon Structural Steel:	Q235
Residential Wall Structure:	Wallboard
Type Of Steel For Building Structure:	High-Strength Steel

Product Description

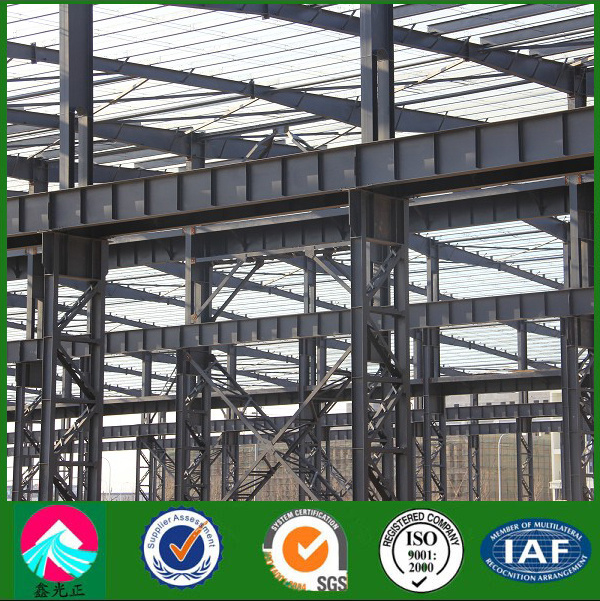

Prefabricated light steel structures workshop description:

1.Main steel structure: welded H steel;
2.Purlin:cold-rolled C section steel;
3.Roof panel: color steel sheet with foil insulation;
4.Wall: MU10 brick with M5 mixed mortar below 1.2meter, color steel sheet with foil insulation above 1.2m;
5.Tie bar: round tube;
6.Brace: round steel;
7.Lateral and column bracing: round steel;
8.Knee brace: hot- rolled angle steel;
9.Trims,flashing: color steel sheet;
10.Gutter:color steel sheet;
11.Down pipe: PVC;
12:Door: sandwich panel door;
13: Window: PVC window( single glass)

Steel structures feature:

1.light weight, high strength, large span;
2.quality certification ISO:9001:2008
3.short construction period, lower cost;
4.easy move, recycle, environmentally;
5. used widely, used as factory/plant/workshop, warehouse, office building, aircraft hangar etc;
6.structural durability, easy maintenance.

Product Details:

Name	Steel structures
Dimension	length	H beam 4000-15000 mm
	thickness	web plate 6 -32 mm web plate 6 -40 mm
	height	200 -1200 mm
	Color	avalible
	size	according to your requirement
Advantages	1. lower cost and beautiful outlook 2. high safty performance 3. easy to assemble and disassemble 4.installation with installation of experienced engineer 5. None -pollution
Main componet	base	cement and steel foundation bolts
	main frame	H beam
	material	Q 235 B , Q 345 B our main material
	purlin	C purlin or Z Purlin size from C 120 - 320 , Z 100 -20
	bracing	X type or other type bracing made from angle and round pipe
	bolt	general bolt and high -strength bolts
	roof & wall	sandwich panel and steel sheet
	door	sliding and rolling door
	window	plastic steel window
	surface
	sheet	0.35 -0.6 mm galvanized sheet
	accessories	semi - transparent skylight belts , ventilators , downpipe and galvanized gutter etc .
Use	1.workshop warehouse 2. steel web steel structure 3. steel H beam and H column 4. portal frame products 5. high rise project 6. other steel structure buildings
Packing	main steel frame with 40 OT roof and panel load iin 40 HQ
Drawing	Auto CAD , Sketchup , 3D ETC .
Design parameter	If you would like to design for you , please offer us the following parameter : 1. length , width , height , eave height , roof pitch etc . 2. wind load , snow load , raining condition , aseismatic requirement etc . 3.demand for wiindow and door 4.insulation material : sandwich panel ( thickness : 50 mm , 75mm , 100 mm etc ) and steel sheet . 5. crane : do you need the crane beam inside the steel structure and its capacity 6. other information if necessary

Qingdao Xinguangzheng Group

BASIC INFO

Covers an area of 133, 000 square meters, was founded in 1996, specialized in various of steel structure building, jointly design, manufacture, export and erection of Industrial, Commercial and residential and Agriculture uses. As one of the best company in North China, had aleady exported to more than 90 countries with government and privite projects.

SERVICE

Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer. No matter how big or small your requirement we will do our best to meet your demand. One stop service from design, manufacture, deliver to installation and after-service.

QUALITY

Raw material reserves: Steel bought from major steel mill

Full and advanced equipment: CNC laser cutting machine, vertical machining centers, CNC bending machines, Nc drilling machine CNC continuous mode of production lines etc

Strictly quality control: Manufacture strictly according to drawings, Inspection every link, Pre assembled before delivery.

DESIGN & DELIVERY & PACKING

Sales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you.

With more than 3000tons capacity each month, Quotation+Manufacture time + deliver time+installation time will better than local manufacturer.

Packed in container by sea or by train, with stable package for no damage during transpotation.

CERTIFICATE

We have ISO9001: 2008 certificate, Aisa Inspection, SGS Inspection and other third party Inspection acception.
