| Supplier: | Qingdao Eihe Steel Structure Co., Ltd. |
|---|---|
| Price: | US $ 750/Ton |
| Min Order: | 10/Ton |
| Quantity:: | |
| Trade Terms: | FOB,CIF,EXW |
|
|
| Prod Model: | EHSS053 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Prefabricated Building Height: | 4.5-12m |
| Span Of Prefabricated Building: | 6-36m |
| Doors For Prefabricated Building: | Sliding Door or Electric Rolling up Door |
| Windows For Prefabricated Building: | Sliding and PVC or Aluminium Alloy Material |
| Roof And Wall: | Colored Corrugated Sheet with Insulation |
| Material: | Steel Structure |
| Usage: | Workshop |
| Certification: | ISO |
| Customized: | Customized |
Specifications of prefabricated building:
Prefabricated building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors
Prefabricated building is widely used in warehouses, workshops, large factories, and more
Characteristics:
Wide span: Prefabricated building has single span or multiple spans, the max span is 36m without middle column
Low cost: unit price of steel structure ranges from USD35/m2 to USD70/m2 according to customers request
Fast construction and easy installation
Long using lifespan: Lifetime of prefabricated building is up to 50 years
Others: Prefabricated building has many advantages, such as environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving
Materials:
The main frame of prefabricated building(columns and beams) is made of welded H-style steel
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts
The envelop construction net is made of cold form C-style purlins
The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by self-tapping nails
Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel.

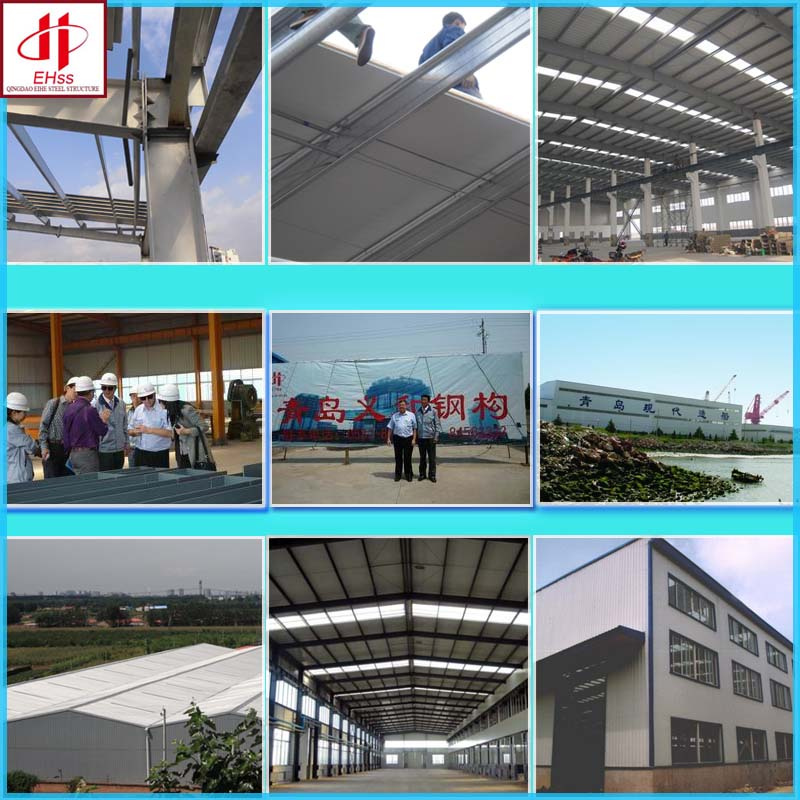

Our Workshop:

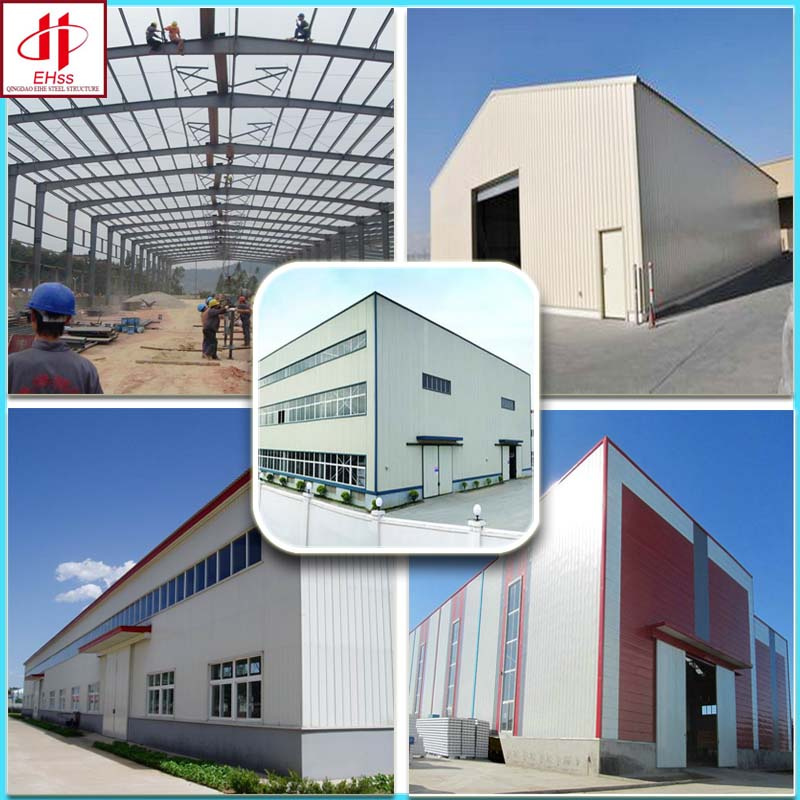

Our Prefabricated Building projects:
Our service:
-Make quotation for prefabricated building according to your drawings
-Design and quote according to your requirements
-Deliver the entire prefabricated building to you by containers;
-Offer all the detailed drawings for installation and fabrication of the prefabricated building.
| Characteristics of prefabricated building : | ||
| Dimensions | Length | Hbeam:4000-15000mm |
| Thickness: | web plate:6-32mm | |
| wing plate:6-40mm | ||
| Height | 200-1200mm | |
| Color | according to customers | |
| Advantages | 1. design prefabricated building according to customers' requirements | |
| 2. manufacture prefabricated building under complete quality control system---ISO9001 | ||
| 3. installation with instruction of experienced engineers | ||
| 4. easy to assemble and dismantle the prefabricated building | ||
| 5. eco-friendly material: can be used for several times and can be recycled | ||
| 6. shorter construction period, longer using time | ||
| 7. high strength, high weight bearing. | ||
| 8. sound insulation and heat insulation; antisepsis and damp proofing; waterproof and aseismatic | ||
| Main components | Main frame | H beam |
| Purlin | C or Z section steel purlin | |
| Brace | Round Steel | |
| Bolt | Anchor, ordinary, high strength bolt | |
| Roof &wall | 0.5mm or 0.6mm galvanized sheet | |
| Door | Sliding or rolling door | |
| Door Material | PVC or aluminum alloy | |
| Insulation panel | EPS,XPS,Rock wool , PU sandwich | |
| Material | Q235B Q345B China standard steel | |
| The following information is the technical parameters needed to creat prefabricated building . We are sincerely glad to know that from you. | ||
| Building type of steel structure | single slope,double slope, multi slope | |
| Span | single span, double span, multi span | |
| How many floors | one,two or three floors | |
| Dimension | length*width*height | |
| Doors | sliding door or electric rolling up door | |
| dimension(length*width),quantity,and position | ||
| material(pvc or aluminium alloy) | ||
| Windows | sliding window | |
| dimension(length*width),quantity,and position | ||
| material(pvc or aluminium alloy) | ||
| Insulation material for roof and wall | EPS,PU,Rock Wool sandwich panel with thickness 50mm-150mm | |
| Crane | Do you need crane inside the prefabricated building? If yes, the capacity. We have crane capacity ranging from 5T to 50T. | |
| Skylight | Do you need skylight on the roof? If yes, the daylighting area. | |
| Local climate | wind speed, snow load, rain quatity, seismic magnitude, etc. | |
| If you have other requirements, such as fire proofing, isolated roof, etc, please kindly inform us. | ||
| With your detailed information, our experienced engineers will make a nice design of prefabricated building for you. Or if you have your own drawings and pictures,that would be better. | ||
