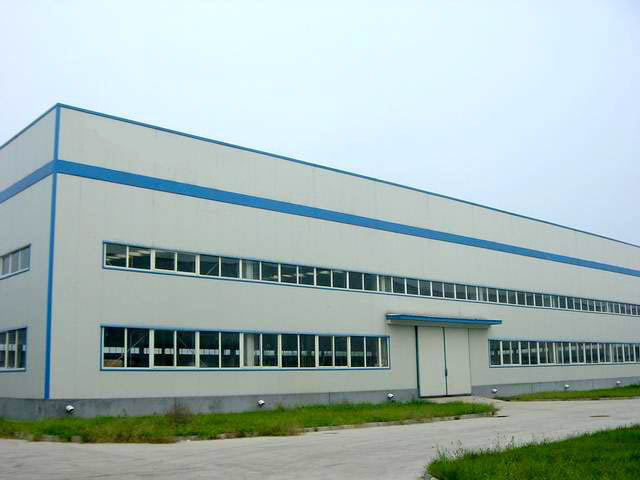

Prefabricated Metal Building/Prefabricated Steel Structure

Product Specifications

Prod Model:	CUS-SX-SSF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Light Steel Frame and Sandwich Panel
Steel Grade:	Q235B, Q345b
Fixing:	Bolts
Size:	as Your Request
Earthquake Resistance:	Grade 10
Sandwich Panel:	PE, PU, Wool Panel
Certificate:	SGS, BV, ISO9001, ISO14001
Guarantee Period:	40 Year
Drawing Design:	Free Offered
Application Type:	Steel Structure Factory/Workshop/Warehouse
Type:	Light Section Steel
Standard:	BS
Trademark:	Special Purpose Steel
Forming:	Cold Drawn Steel
Connection Form:	Bolt Connection
Member:	Steeltruss
Type Of Steel For Building Structure:	High-Strength Steel
Carbon Structural Steel:	Q235
Residential Wall Structure:	Top Wall Beam
Application:	Steel Structure Bridge

Product Description

Prefabricated Metal building Specification:
Main frame: Welded H beam and column with bolted connection and welding
Purlin: Hot dip galvanized cold bend C steel
Wall panel: Color corrugated steel sheet with hot dip galvanized and painting
Roof panel: Color steel sheet+ glass wool+ pvc film + steel wires (heat insulation, light weight, good appearance), and skylighting.
Door: Sandwich panel sliding door with canopy
Window: Pvc sliding window with glass
Gutter: Cold bend color corrugated steel sheet
Down spout: Pvc round pipe

Our Services
1. We can provide the drawing design and program planning
2. We have a standard installation tutorial,our  engineer can go to installation guide
3. We guarantee to reply in a timely manner
4.welcome to visit our fatory


Steel structure building solutions:



1. Steel structure: All steel frame components will be fabricated in the factory. There will be only bolt connection in construction site.
2. Roofing and wall cladding: Single corrugated sheet or sandwich panel (EPS/Rockwool/PU).
3. Windows and doors: Steel plastic/aluminium alloy/rolling up types are available.
4. Engineering: We will help clients to make detailed engineering and installation drawings of steel buildings. Site engineer service is available.

Prefabricated Metal building Advantages:
# Environment friendly: All the materials of steel warehouse is made of steel, which can be reused many times.
# Good appearance: Warehouse with color steel sheet wall panel and roof panel is beautiful and tidiness.
# Quality: Steel structure warehouses with steel structure frame and colorful steel sheet panel is very fastness.
# Good drainage system with cold bend steel sheet gutter and pvc downpipe
# Connection: All the steel materials were connected with high strength bolts, shearing bolts, bracket bolts etc is easy to install and dismantle.
# Short delivery time. All the materials load in containers, ship abroad.
# Short production time: The warehouse with flexible design was devided into a number of steel structure parts, be manufactured by skilled workers in advanced machines.
# Installation: If needed, our engineers will provide technical guidance onsite.

Prefabricated Metal building Model
1. Single slope, Double slope, Multi-slope.
2. Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam
1. Material Q345(S355JR)or Q235(S235JR) steel.
2. All bolts connecting.
3. Straight cross-section or Variable cross-section.
Surface
Hot-dip galvanized or painted.
Roof and wall panel
1. EPS, PU, Rockwool sandwich panel.
2. Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide).
3. Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width.
BraceX or V as well as other type bracing made from angle, round pipe etc.
Accessories
Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc.
Window
PVC or Aluminum Alloy.
C or Z purlin
Size from C120~C320, Z100~Z200.
Door
Sliding or Rolling up door.
Carrying capacity
1. Resisting winds and seismic impacts.
2. Bearing heavy snows.
Drawing
1. Making the design and quotation according to your requirements very soon.
2. Making the quotation according to your drawings.
3. Giving you the satisfying opinion to your project.
Certificate
ISO9001: 2008, AWS certified welder passport, SGS, BV.
1. Size:
MOQ is 500 square meter, length X width X eave height, roof slope
2. Type:
Single slope, double slope, muti-slope; Single span,
Double-span, Multi-span, single floor, double floors
3. Base:
Concrete and steel foundation bolts
4. Column and beam:
Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection, straight cross-section or Variable cross-section
5. Bracing:
X or V or other type bracing made from angle, round pipe etc.
6. C or z purlin,
Size from C100~C320, Z160~Z300
7. Roof and wall panel:
Single colorful corrugated steel sheet0.326~0.6mm thick, 820mm wide
Single colorful corrugated steel sheet0.326~0.6mm thick, 900mm wide
Single colorful corrugated steel sheet0.326~0.6mm thick, 750mm wide
Single colorful corrugated steel sheet0.376~0.6mm thick, 760mm wide
Single colorful corrugated steel sheet0.376~0.6mm
Sandwich panel with EPS, rock wool, glass wool, PU etc insulation thickness around 50mm~150mm, width 950mm or 960mm!
8. Accessories:
Semi-transparent skylight belts, Ventilators, down pipe, out gutter etc
9. Surfrace:
Paint or hot dip galvanized
10. Packing:
Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ

Model	1.Single slope, Double slope, Multi-slope.
	2.Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam	1.Material Q345(S355JR)or Q235(S235JR) steel.
	2.All bolts connecting.
	3.Straight cross-section or Variable cross-section.
Surface	Hot-dip galvanized or painted.
Roof and wall panel	1.EPS ,PU ,Rockwool sandwich panel.
	2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide).
	3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width.
Brace	X or V as well as other type bracing made from angle, round pipe etc.
Accessories	Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc.
Window	PVC or Aluminum Alloy.
C or Z purlin	Size from C120~C320, Z100~Z200.
Door	Sliding or Rolling up door.
Carrying capacity	1.Resisting winds and seismic impacts.
	2.Bearing heavy snows.
Drawing	1.Making the design and quotation according to your requirements very soon.
	2.Making the quotation according to your drawings.
	3.Giving you the satisfying opinion to your project.
Certificate	ISO9001:2008,AWS certified welder passport,SGS,BV.
