Prefabricated Modular Building (PD-01)

Name: Prefabricated Modular Building (PD-01)
Brand: China-Manufacturer-Directory.com
SKU: 682050222
Availability: InStock
Rating: 4.9 (99 reviews)

Supplier:	Beijing Duobang International Prefabricated House Co., Ltd.
Price:	US $ 60-100/Square Meter
Min Order:	100/Square Meter
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	PD-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Features:	Quick Built and Cost Saving
Storey:	3 Floor Max
Material:	Sandwich Panel
Usage:	Temporary Offices
Certification:	ISO

Product Description

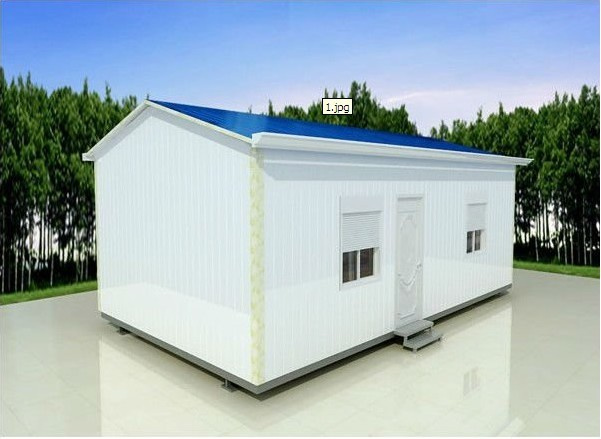

Prefabricated Modular Building

Prefabricated house (ZA) type is a flexible house model. The size and layout can be designed as per customers' requirements and local climate. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and six common workers can finish 50m2 in 8 hours according to installation instruction.

The detailed information as follow:

No.	Sort	Name	Specification
1	Specification	length	No limited
2		Width	Less than 15m
3		Wall height	3000mm
4		Clear height	2600mm
5		Roof slope	1:5
6	Standard accessory	Wall board	75mm thickness sandwich panel, 0.35mm color steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k.
7		Roof board	75mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k.
8		Outside door	Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.
		Inside door	SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
9		Window(W-1)	PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.
		Window(W-2)	PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen.
10		Channel	Galvanized Steel Plain Sheet press moulding Material: Q235. Painted
11		Post	Square steel tube, Material: Q235. Painted
12		Purline	C style steel Material: Q235. Painted
13		Roof truss	Gabled truss, Material: Q235. Painted
		Decoration and connection	Color steel sheet, 0.35mm thick
		Elevated ceiling	Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen
20	Option	Decorative floor	PVC, laminated or ceramic tile
21		Drainage system	Provided plan, design and construction
22		Electric system	Provided plan, design and construction
25	Technical parameter	Bearing load	50kg/m 2 , can be adjusted according to climate
27		Wind pressure:	0.5KN/M2, can be adjusted according to climate
28		Fire proof	B2 grade
29		Resistant temperature	-25to 50
30		The resistant earthquake grade	7fission activate.

Beijing Duobang International Prefabricated House Co., Ltd. is professional manufacturer of prefabricated house, steel structure warehouse&workshop, container house. As a prefab house specialist, Our company sells prefab houses that meet the needs of our diverse customers. Our products are applied in remote camp, military, residence, airport, warehouse, industry workshop, stadium, supermarket, refrigeration storage, exhibition and other fields. Our product line also includes house accessories, such as wiring systems and watering systems.

We have several modern production lines for sandwich panels, steel structure and color steel. We have the annual production capacity of 1.6 million square meters of prefab houses, 45000 Tons of steel frames and 3 million square meters color steel sandwich panels and 2 million square meters of floor decking.

Dubung also has a constant installation team for supervising overseas projects. We have professional experience in installation and site management.

We believe we can cooperate with you well for suggesting you the right budget products and undertaking the site temporary housing project with our experience.

We sincerely hope to cooperate with friends at home and abroad on the basis of mutual trust and benefits.
