Beijing WLLD Prefabricated House Co., Ltd. >> Prefabricated /Prefab /Modular/Movable/Mobile/Container /Steel Structure Building

Prefabricated /Prefab /Modular/Movable/Mobile/Container /Steel Structure Building

Name: Prefabricated /Prefab /Modular/Movable/Mobile/Container /Steel Structure Building
Brand: China-Manufacturer-Directory.com
SKU: 668501415
Availability: InStock
Rating: 4.9 (91 reviews)

Supplier:	Beijing WLLD Prefabricated House Co., Ltd.
Price:	US $ 70/Square Meter
Min Order:	150/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PA Type
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East
Core Material:	EPS,Rock Wool,Glass Wool,etc
Size:	as Per Customers
Color:	Red,Blue,Grey White,etc
Wall Panel:	Steel Sandwich Panel
Panel Thickness:	50mm 75mm 100mm
Material:	Steel Structure
Usage:	Temporary Offices
Certification:	ISO

Product Description

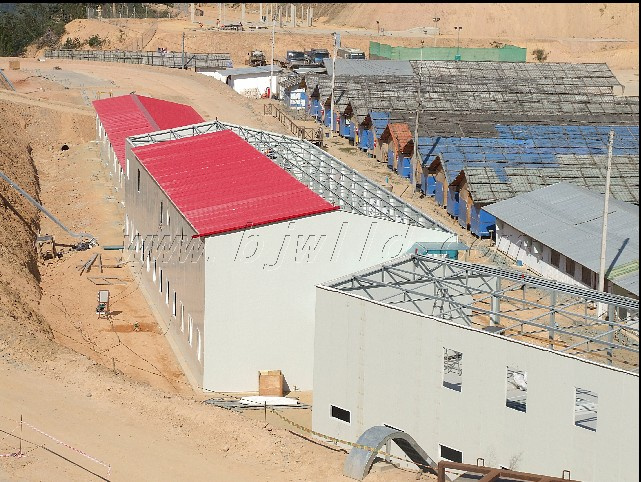

Modular house, portable house, mobile house, prefab house Prefabricated House 1. Environmental friendly 2. Easy to assemble 3. High quality 4. 11 years experience, covering 81 countries. PA prefabricated house with base is a modular product. When delivery, it is knock-down to save the space. When erection, it could be installed by common worker with electric tools according to instruction and CD. Six persons can finish 2units in 8hours. The structure is connected by bolt and the wall is fixed by rivet. Waterproof design on the roof and without any measurement. Light material without overload, easy to pack and transport. house photo company view workshop

No.	Sort	Name	Specification
1	Specification	length	6000mmm
2		Width	2900mm
3		Wall height	2800mm
4		Clear height	2800mm
5		Roof slope	11°
6	Standard accessory	Wall board	75mm thickness EPS panel,0.5mm steel sheet, 13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.38w/.k.
7		Roof board	50mm thickness EPS corrugated panel, 0.4mm steel sheet,13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.58w/@k.
8		Door(D-1/2/3/4)	SIP single door with dimension of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
9		Window(W-1)	PVC, white color, with dimension of 940*1000mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.
		Window(W-2)	PVC, white color, with dimension of 940*500mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.
10		Base beam	H style steel Q345, galvanized
11		Base purline	C style steel, Q235, galvanized
12		Base support	Square steel tube Q235, galvanized
13		Base lifting part	Square steel tube, Q235, galvanized
		Base channel	Press forming steel plate. Q235, galvanized
		Roof beam	C style steel,Q235, painted
		Base panel	Plywood with 14mm thickness in room and bamboo panel with 14mm thickness in bath and kitchen
		Decoration and connection	Color steel sheet, 0.35mm thick
20	Option	Decorative floor	PVC or laminated floor in room and aluminium panel in bath and kitchen
21		Drainage system	Provided plan, design and construction
22		Electric system	Provided plan, design and construction
25	Technical parameter	Bearing load	30kg/m 2
27		Wind pressure:	0.45KN/M2
28		Fire proof	B2 grade
29		Resistant temperature	-20to 50

Beijing WLLD Prefabricated House Co., Ltd. Specialized in designing and manufacturing Modular Building, prefabricated house, container house and remote camp program field in China. It was established in 2007 by one expertised group of professional business persons.

In WLLD, both senior management persons and technical staffs are all from prefabricated house filed and all of them have five or ten years professonal experience in this field. We believe that we can provide you our products with good quality, competitive price and our best service.

WLLD can design and manufacture several types of prefabricated houses. These houses can be designed to meet different requirements. Our various types of prefabricated houses includes MA series, MK series, PA series, PB series, pH series and Container Series.

One of domestic new production-line of color steel Phenolic resin sandwich panel make WLLD much more competitive. Phenolic material is an excellent lightweight material with the character of fireproof, energy saving, heat and sound insulation. It could be widely used in prefabricated house. In recent years, lots of countries have special requirements in fireproof, the new material Phenolic resin sandwich panel come in for a great deal of attention, it is becoming more and more popular in many countries.

With the modern factory located in Beijing which cover 40, 000sqm area, WLLD has the capability to manufacture 50, 000 sqm Prefabricated House and 50, 000 sqm Phenolic sandwich panel per month.

WLLD is growing very fast even it is a young company. During four years, the company has successfully participated in Wenchuan earthquake relief project, the 2008 Beijing Olympic Games project and the 60th anniversary military parade village construction project.

WLLD will begining to open up overseas markets and with an experienced team, we would like to grasp every cooperation opportunity and we are willing to establish long-term business relationship with our foreign clients by supplying you our products with our best service.
