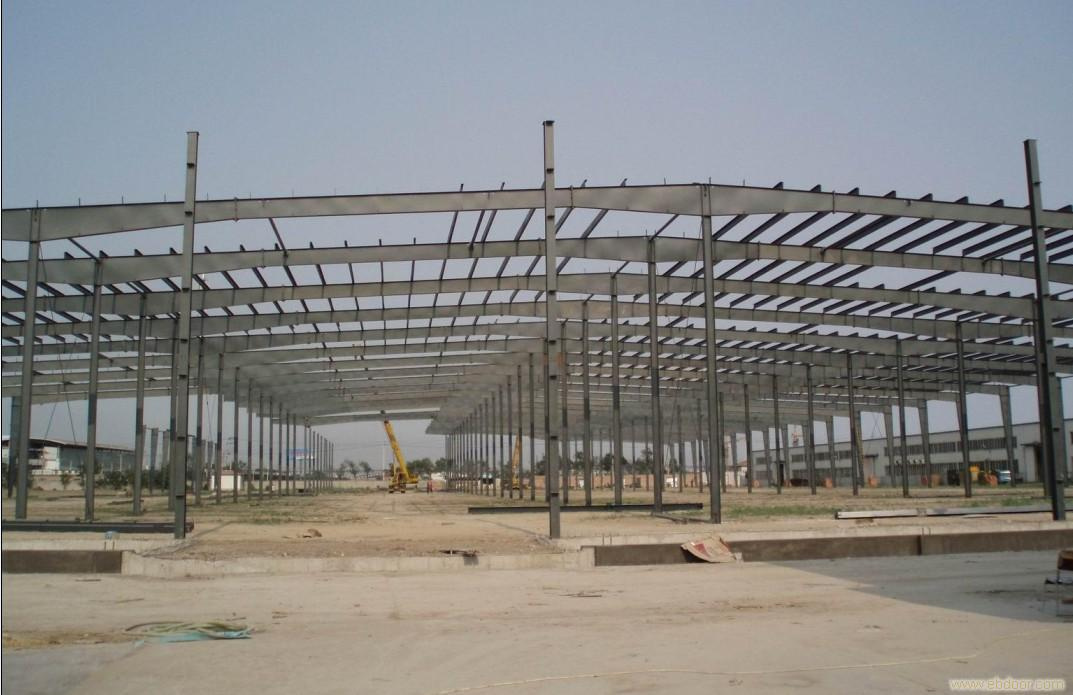

Prefabricated Space Frame Steel Structure/Frame Truss Structure

Product Specifications

Prod Model:	45*150*7.8m
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Light Steel Frame and Sandwich Panel
Connection:	Bolts
Size:	as Your Request
Earthquake Resistance:	Grade 10
Sandwich Panel:	PE/PU/Wool Panel
Certificate:	SGS,BV,ISO9001,ISO14001
Guarantee Period:	40 Year
Type:	Light Section Steel
Standard:	DIN
Trademark:	Special Purpose Steel
Forming:	Hot-Rolled Steel
Connection Form:	Bolt Connection
Member:	Steel Beam
Type Of Steel For Building Structure:	High-Strength Steel
Carbon Structural Steel:	Q235
Residential Wall Structure:	Bottom Wall Beam
Application:	Steel Structure Bridge

Product Description

1, Lightweight Steel Structure Specification
Main Steel: Column and beam(H-section), square steel tube, C/Z purlin
Conection Method: Welding or hot rolled or cold rolled
Wall&Roof: EPS, Rockwool, PU sandwichpanel, Corrugated steel sheet with fiber glasswool
Door: Rolled up door or Sliding door(sandwich panel)
Window: Plastic steel or Aluminum alloy window
Surface: Hot dip galvanized or painted. (all colours we can do)
Bolt: Foundation bolt(M24, Q235),
High strengthen bolt(M20X70),
Normal bolts(M16x50; M12X30)

2, Lightweight Steel Structure Advantage
High strength
Good water resistance
Enough quantity
Easy installation

3, Lightweight Steel Structure Drawings&Quotation
Customized design to welcome.
As long as you like, we can design and provide drawings for you.
In order to give yo an exactly quotation and drawings, pls tell us the; Length, width, eave height and local weather. We'll quote for you asap.

4, About CUS-STEEL
A. We have our own technical teams, so we can design, fabricate and install this steel structure workshop according to customers requirement.
B. Its very easy to install the steel structure workshop in your there according to our installation drawings. Also, we will supply all technical support during installation and after-sale service.
C, You can choose freely the roof and wall panel, the material of door and windows

Degree of Standardization	custom-made product, design and manufacture according to clients requirement
Length	No limited, increase expansion joint when length more than 200m.
Width	single span should be less than 12m, an arbitrary  width could make by union spans
Height	single floor ≤  5m, two or three floors, average height  ≤  4m
Ground Channel	Galvanized steel panle compression, thickness is 0.8mm
Post	Inside post is steel square pipe, material is Q235, components surface make antirust process,  and decorate with color steel compression parts.
Roof Beam	roof truss consist of thin sharpe steel by welding, component surface make antirust process
Purlin	purlin is Ctype steel, material is Q235, components surface make antirust process.
Floor	made of floor master beam, secondary beam and floor surface plate(plywood)
Door	color steel sandwich panel door, size: 750mm*2000mm;
Window	PVC sliding window, with steel screen.
Ceiling	mineral wool acoustic panel, aluminium buckle panel, PVC ceiling
Electrical accessories	Supply plan, design and construction according to relevant national norms(220V, 50Hz, with lamp,  switches and multi-function sockets
