Prefabricated Steel Framework/Professional Design Light Steel Structure

Product Specifications

Prod Model:	CUS-Steel Structure
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Light Steel Frame and Sandwich Panel
Connection:	Bolts
Size:	as Your Request
Earthquake Resistance:	Grade 10
Sound Insulation:	30-40dB
Certificate:	SGS,BV,ISO9001,ISO14001
Guarantee Period:	40 Years
Type:	Light Section Steel
Standard:	En
Trademark:	Special Purpose Steel
Forming:	Hot-Rolled Steel
Connection Form:	Bolt Connection
Member:	Steeltruss
Type Of Steel For Building Structure:	High-Strength Steel
Carbon Structural Steel:	Q235
Residential Wall Structure:	Bottom Wall Beam
Application:	Steel Structure Bridge

Product Description

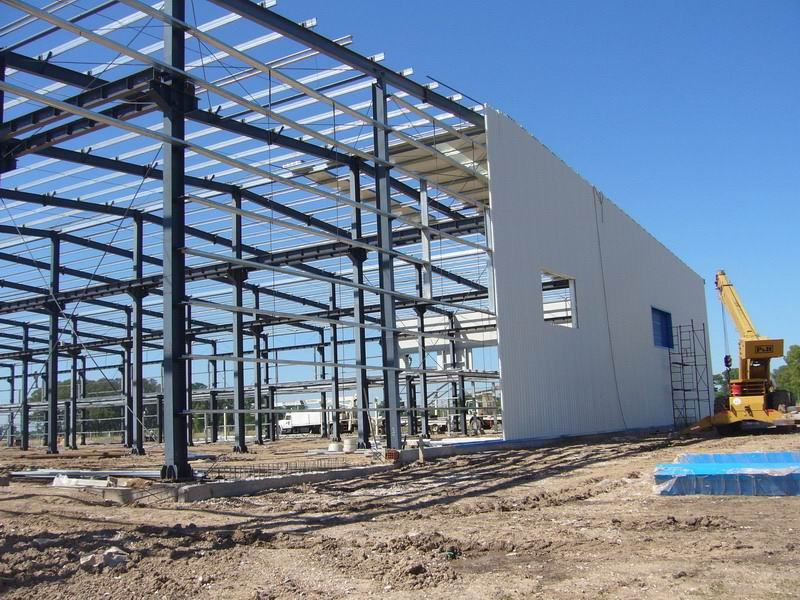

1, Light Steel Structure Brief Introduction
As a main supplier in the field of structural steel fabrication and erection, CUS-STEEL specializes in the architectural design, research and development, marketing, manufacturing and construction of steel structure products. We offer a comprehensive range of steel structure systems, including the high-rise heavy steel structure system featured with commercial office buildings, hotels, and high-rise residential buildings, the large-span steel structure system highlighted by airports, conference and exhibition centers, stadiums and other public buildings, the light steel structure system represented by industrial buildings for various purposes, warehouses, supermarkets and multi-layer steel structure building.

2, Light Steel Structure Specification
Length: Single slope, double slope, muti slope
Width: Single span, double-span, Multi-span
Height: Single floor, double floors
Column: Q235, Q345 welding H section steel
Beam: Q235, Q345 welding H section steel
Purlin: Q235 C channel or Z channel
Knee brace: Q235 angle steel
Vertical and transversal support: Q235 angle steel, round bar or steel pipe
Tie bar: Q235 steel pipe
Brace: Q235 round bar
Cladding system: Sandwich panels (EPS, PU, Fiber glass wool etc. ) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze.
Partition wall: Sandwich panels (EPS, PU, Fiber glass wool etc. )
Ventilation: Ventilator
Door: Sandwich panel sliding door or roller door
Gutter: Stainless steel or color steel sheet
Rainspout: : PVC
Live load on roof: In 120kg/Sqm (Color steel panel surrounded)
Wind resistance grade: 12
Earthquake-resistance: 8degree
Structure usage: Up to 50 years

3, Light Steel Structure Advantage
High Quality, Low-price, Rebuild, Free Design, Easy To Install

4, Light Steel Structure Package Details
Standard exporting seaworthy packing or according to customers' requirement, 20'GP container or with LCL

Degree of Standardization	custom-made product, design and manufacture according to clients requirement
Length	No limited, increase expansion joint when length more than 200m.
Width	single span should be less than 12m, an arbitrary  width could make by union spans
Height	single floor ≤  5m, two or three floors, average height  ≤  4m
Ground Channel	Galvanized steel panle compression, thickness is 0.8mm
Post	Inside post is steel square pipe, material is Q235, components surface make antirust process, and decorate with color steel compression parts.
Roof Beam	roof truss consist of thin sharpe steel by welding, component surface make antirust process
Purlin	purlin is Ctype steel, material is Q235, components surface make antirust process.
Floor	made of floor master beam, secondary beam and floor surface plate(plywood)
Door	color steel sandwich panel door, size: 750mm*2000mm;
Window	PVC sliding window, with steel screen.
Ceiling	mineral wool acoustic panel, aluminium buckle panel, PVC ceiling
Electrical accessories	Supply plan, design and construction according to relevant national norms(220V, 50Hz, with lamp, switches and multi-function sockets
