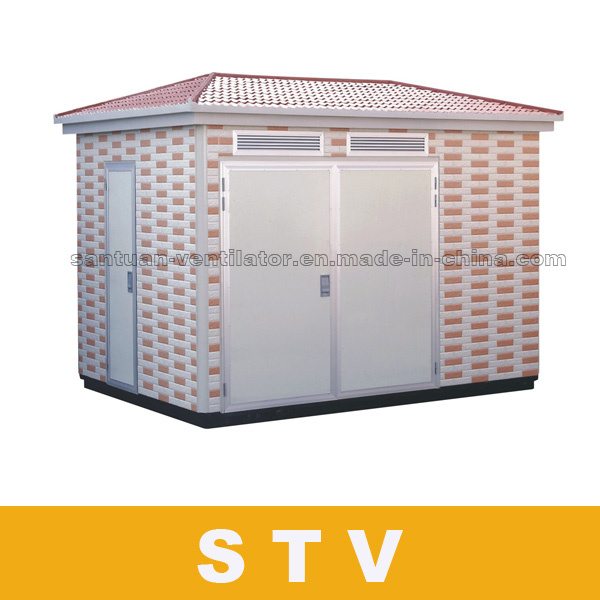

Prefabricated Transformer Substation YBF -12 Series
Product Specifications
| Prod Model: |
YBF -12 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Transformer |
| Phase: |
Three |
Product Description
1. Prefabricated Transformer Substation is advanced technology, innovative surface design
2. High-level protection & safety
3. Reasonable structure, smart appearance
4. Various components installation
5. Excellent electromagnetic compatibility
|
Main Technical Parameters |
|
|
|
|
|
Item |
Unit |
High Voltage Power Distribution Device |
Transfomer |
Low Voltage Power Distribution Device |
|
Rated Voltage |
KV |
10 |
10/0.4 |
0.4 |
|
Rated Current |
A |
630 |
|
100-2500 |
|
Rated Frequency |
HZ |
50 |
50 |
50 |
|
Rated Capacity |
KVA |
|
100-1250 |
|
|
Rated Thermal Stability Current |
KA |
20/4S |
|
30/1S |
|
Rated Dynamic Stability Current(The Peak Value) |
KA |
50 |
|
63 |
|
Rated Closing Short-circuit Current(The Peak Value) |
KA |
50 |
|
15-30 |
|
Rated Breaking Short-circuit Current |
KA |
31.5(Fuse) |
|
|
|
Rated Breaking Load Current |
A |
630 |
|
|
|
1min Power Frequency Withstand Voltage |
Common Value |
KV |
42 |
35/28(5min) |
20/2.5 |
|
Across Insulate Distance |
48 |
|
Lightning Impulse Withstand Voltage |
Common Value |
KV |
75 |
75 |
|
|
Across Insulate Distance |
85 |
|
Protection Degree |
|
IP23 |
IP23 |
IP23 |
|
Noise Level |
dB |
|
Oil Change≤ 55, Dry Change≤ 65 |
|
|
Loop' s No. |
Piece |
1-6 |
2 |
4-30 |
|
The Maximum Capacity of Reactive Power Compensation in Low Voltage Side |
kvar |
|
|
300 |
Zhejiang Santuan Ventilator Electric Co. Ltd is a modern enterprise center for environmental ventilation equipment, which has been specializing in the R&D, manufacture, sales and service of fans and other electric products.
Our company covers a vast area of 20, 000sqm, owning a modernized factory building. There is a large team of excellent staff members specialized in feed machine manufacture and turn-key project design and installation. Our main products are all kinds of centrifugal fans, axial-flow fans, air-conditioner fans, flow-mixed fans, boiler induced ventilators, dust-exhausting fans, industrial ventilators, and electric blowers, pumps, lightening protections, distribution boxes and electric accesories. Our goods are widely used in building, tunnel, machinery industry, metallurgical industry, chemical industry, cooling, boiling, medicine, and hotel. We have distributors from all over China and our products sell well both at home and abroad.
For many years, we have been taking "Pursuit of excellent quality with great efforts" as core concept and been launching the brand strategy, which guarantees stable quality products, moderate price and efficient service. With the principles of "Honesty First, Innovation Pragmatic, Management Strengthened and Position Utmost", we are committed to creating a dynamic and competitive century enterprise.
With National CCC, SGSand ISO9001: 2000 certifications, our products are more attractive. In a new century, Santuan will produce products with better quality and high technology as a reward to all our customers.
