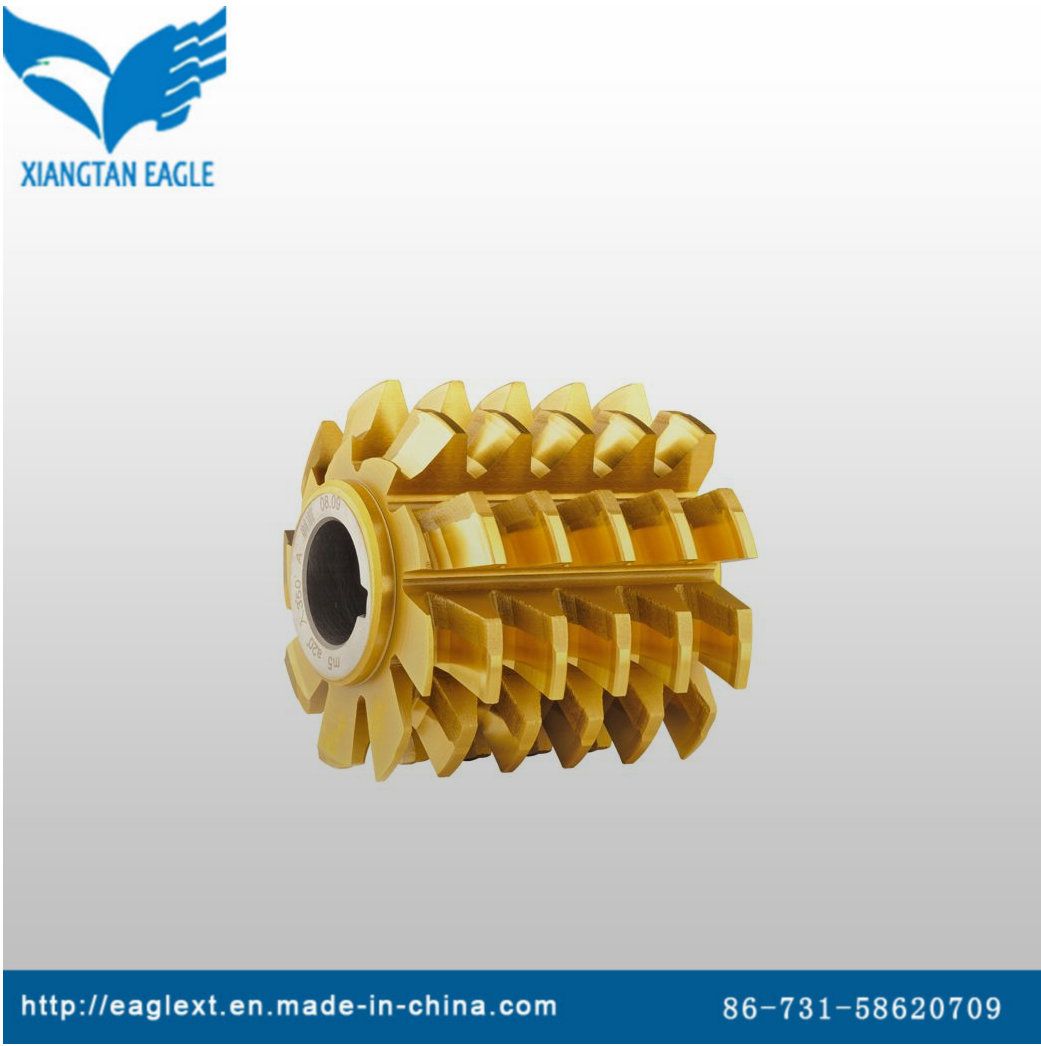

Preshaving Hob Cutter with Big Diameter

Product Specifications

Prod Model:	m1-m8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials:	M2 (6542)
Customized:	Yes
Coating:	Tin

Product Description

Pressure angle: 20°
Accuracy: A
Gear shaper cutter made of M2. We offer GB standard hob and also accepted special size order. High quality, precision, wearable


We can supply all kinds of the Gear Hobs, especially we can do the Non-standard ones for u according to your specification requirements.

Before quotation, pls let us know the datas below:

1. What is the module, pressure angle, outside diameter, length, bore diameter, direction of turning for nonstandard gear hobs?
2. What is the materials?
3. What is the coating? We provide TIN coating, TiAIN coating or uncoated.
4. What is the accuracy level? Grade AA or Grade A.
5. Which kind of standard to you need, standard or non-standard?

Specs	Exteral Diameter	Overall Length	Bore Diameter
m1	50	50	27
m1.25	50	50	27
m1.5	60	60	27
m1.75	60	60	27
m2	60	60	27
m2.25	65	65	27
m2.5	70	70	27
m2.75	70	70	27
m3	80	80	32
m3.25	80	80	32
m3.5	85	85	32
m3.75	90	90	32
m4	90	90	32
m4.5	95	95	32
m5	100	100	32
m5.5	100	100	32
m6	110	110	40
m6.5	118	118	40
m7	115	115	40
m8	125	125	40

The products we can offer:
Tungsten Carbide products: carbide inserts, tool holders, milling cutters, end mills, drill bits, reamers, wear parts, router bits, and other carbide products.
HSS products: machine taps, drill bits, end mills, gear hobs and other OEM products.
Accessories of CNC toolholders.

The brand we can offer:
ZCC.CT, SANDVIK, KORLOY, TaeguTec, WALTER, MiTSUBiSHi, KYOCERA, ISCAR, VARGUS,KENNAMETAL, SECO, DORMER, DIJET, YAMAWA, HITACHI, OSG, TUNGALOY, LAMINA and so on.


Mode of Transportation	EMS, DHL, TNT, UPS, Fedex
	By sea, By air, By land, By train
