Anhui Huafeng Machine Manufacturing Co., Ltd. >> Press Brake Tools

Press Brake Tools

Name: Press Brake Tools
Brand: China-Manufacturer-Directory.com
SKU: 722039455
Availability: InStock
Rating: 4.5 (134 reviews)

Supplier:	Anhui Huafeng Machine Manufacturing Co., Ltd.
Price:	US $ 8000-15000SET
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

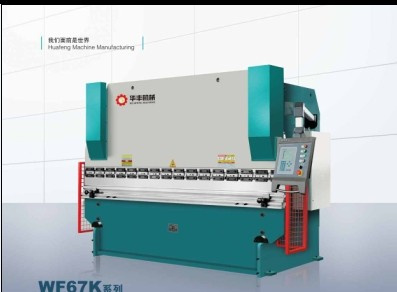

Prod Model:	WF67K-100T3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation:	Manual
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware
Type:	Beading Machine
Type For Cutting Machine:	Bending Machine

Product Description

This machine is designed limiting limit elements analyzing and optimization made of entirely steel structure. Using libration effort to eliminate inner stress, the rigidity of machine is guaranteed.
Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearings at both ends of torsion shaft, and to install loads, can make the workpiece acquire better precision of bending.
The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
Installed long-distance pressure-regulator valve on column right side.
Wallboard inside with manual pumps...
Back gauge adopt grinding plate design, high regulation accuracy.
Serial No Name Numerical Value
1 nominal force 1000kn
2 max bending length 3200mm
3 stoke 120mm
4 daylight opening height 380mm
5 distance between housing 2600mm
6 depth of throat 320mm
7 travel speed 8mm/s
8 main motor 7.5KW
9 Overall size (L*W*H) 3300× 1750× 2420mm
10 machine weight 6.6Tons

Ton	kN	mm	mm	mm	mm	kW	mm	Ton
Type	Nominal Pressure	Workbench Length	Poles distance	Throat depth	Max Opening Height	Main motor	Dimension(L×W×H)	Machine weight
40T/2200	400	2200	1600	200	320	5.5	2300×1100×1900	2.5
40T/2500	400	2500	1900	200	320	5.5	2600×1100×1900	2.8
50T/2200	500	2200	1600	200	320	5.5	2300×1150×1940	2.8
50T/2500	500	2500	1900	200	320	5.5	2600×1150×1940	3.2
63T/2500	630	2500	1900	250	345	5.5	2600×1500×2200	4.1
63T/3200	630	3200	2600	250	345	5.5	3300×1500×2200	4.6
63T/4000	630	4000	3100	250	345	5.5	4200×1500×2300	5.1
80T/2500	800	2500	1900	250	350	5.5	2600×1700×2320	5.0
80T/3200	800	3200	2600	250	350	5.5	3300×1700×2320	5.5
80T/4000	800	4000	3100	250	350	5.5	4100×1700×2320	6.8
80T/5000	800	5000	4000	250	380	7.5	5100×1700×2500	9.2
100T/2500	1000	2500	1900	320	380	7.5	2600×1750×2420	5.6
100T/3200	1000	3200	2600	320	380	7.5	3380×1750×2420	6.6
100T/4000	1000	4000	3100	320	380	7.5	4000×1750×2420	7.8
100T/5000	1000	5000	4000	320	380	7.5	5000×1750×2520	9.2
100T/6000	1000	6000	4800	320	380	7.5	6000×1750×2620	12.0T
125T/2500	1250	2500	1900	320	380	7.5	2600×1750×2520	6.2
125T/3200	1250	3200	2600	320	380	7.5	3200×1750×2520	7.2
125T/4000	1250	4000	3100	320	380	7.5	4000×1750×2520	9.2
125T/5000	1250	5000	3950	320	380	7.5	5000×1750×2520	10.5
125T/6000	1250	6000	4800	320	380	11	6100×1750×2720	13.5
160T/2500	1600	2500	1900	320	450	11	2700×1850×2700	8.2
160T/3200	1600	3200	2550	320	450	11	3300×1850×2700	9.5
160T/4000	1600	4000	3040	320	450	11	4100×1850×2700	11
160T/5000	1600	5000	3800	400	450	11	5100×2000×3000	14.5
160T/6000	1600	6000	4800	400	450	11	6100×2000×3200	18
200T/2500	2000	2500	1840	350	500	11	2600×2150×2950	12
200T/3200	2000	3200	2540	350	500	11	3300×2150×2950	13.5
200T/4000	2000	4000	3100	350	500	11	4100×2150×2950	16

We specialized with plate rolling machine, guillotine shearing machine and other related products. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.
