Pressional CE Approved Digital Torque Meter with Factory Price
| Price: |
US $ 68-1970/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
ZHENGZHOU NANBEI INSTRUMENT EQUIPMENT CO., LTD
Pressional CE approved digital torque meter with factory price

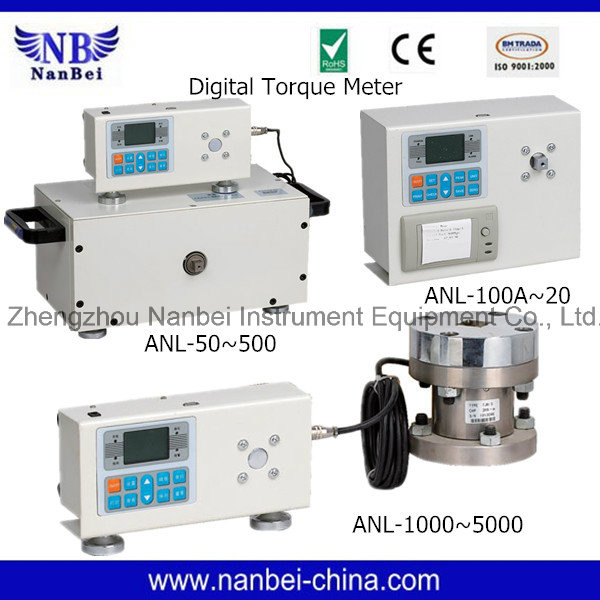

ANL series Digital Torque Meter
Function
The ANL digital torque meter is specially designed for measuring all kinds of torque
It is suitable for all kinds of torque measurement and adjust components reverse destructive test and so on.
This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver, torque wrench, tighten torque instrument and product, widely applies in the electrical manufacture, the machine manufacture, the automobile light industry and the specialized scientific research and industry.
Character
1:High accuracy, high resolution, and stability. The sampling speed can be set.
2:Fluctuate limiting value set, has the acousto-optic alarm device.
3:Lattice type LCD, the back light can be set.
4:Torque directions identify.
5:Three kind of unit: N.m, kg.cm, lb. in automatic conversion.
6:Many kinds of front values maintain.
7:Power source shows and low power prompt.
8:No-operation close automatically, can set the close time.
9:Saves and prints 100 test data, can clean out at will.
10Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data: such as prints, statistics and so on.
Specifications| Type | With printer | ANL-1P | ANL-2P | ANL-3P | ANL-5P | ANL-10P | ANL-20P |
| Index | No printer | ANL-1 | ANL-2 | ANL-3 | ANL-5 | ANL-10 | ANL-20 |
| Measuring range / Division value | N·m | 1.0000/0.0001 | 2.0000/0.0001 | 3.0000/ | 5.0000/ | 10.000/ | 20.000/ |
| 0.0001 | 0.0001 | 0.001 | 0.001 |
| Kg·cm | 10.210/ | 20.421/ | 30.631/ | 51.052/ | 102.10/ | 204.21/ |
| 0.001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 |
| Lb·in | 8.862/ | 17.724/ | 26.586/ | 44.311/ | 88.62/ | 177.24/ |
| 0.001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 |
| Precision | ±0.5% |
| Peak Value Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
| Continuous using time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:230mm×95mm×180mm |
|
| No printer:230mm×70mm×125mm |
| Net Weight | With printer:4KG No printer:2KG |
| Power adapter | Input:AC 110-220V 50HZ Output:DC 10V 300mA |
| Type | With printer | ANL-50P | ANL-100P | ANL-200P | ANL-300P | ANL-500P |
| Index | No printer | ANL-50 | ANL-100 | ANL-200 | ANL-300 | ANL-500 |
| Measuring range / Division value | N·m | 50.000/0.001 | 100.00/0.01 | 200.00/0.01 | 300.00/0.01 | 500.00/0.01 |
| Kg·cm | 510.52/0.01 | 1021.0/0.1 | 2042.0/0.1 | 3063.1/0.1 | 5105.2/0.1 |
| Lb·in | 443.11/0.01 | 886.2/0.1 | 1772.4/0.1 | 2658.6/0.1 | 4431.1/0.1 |
| Precision | ±1% |
Peak Value
Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
Continuous using
time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:Host display part 230mm×95mm×180mm |
| Measuring device part 480mm×190mm×180mm |
| No printer:Host display part 230mm×70mm×125mm |
| Measuring device part 480mm×190mm×180mm |
| Net Weight | With printer:36KG No printer:34KG |
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |
| Type | With printer | ANL-1000P | ANL-2000P | ANL-3000P | ANL-5000P |
| Index | No printer | ANL-1000 | ANL-2000 | ANL-3000 | ANL-5000 |
| Measuring range / Division value | N·m | 1000.0/0.1 | 2000.0/0.1 | 3000.0/0.1 | 5000.0/0.1 |
| Kg·cm | 10210/1 | 20420/1 | 30630/1 | 51051/1 |
| Lb·in | 88622/1 | 17724/1 | 26586/1 | 44311/1 |
| Precision | ±1% |
| Peak Value Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
| Continuous using time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:Host display part 230mm×95mm×180mm |
| No printer:Host display part 230mm×70mm×125mm |
| Net Weight | With printer:36KG No printer:34KG |
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |

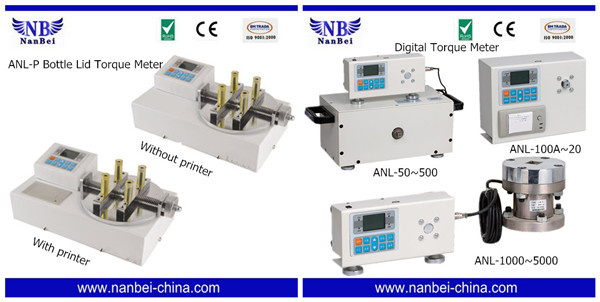

ANL-P Bottle Lid Torque Meter
Function
ANL-P bottle lid torque tester is an intelligent and multifunction measure instrument.
Specially designed for testing and examining all kinds of bottle lid to open and close torque. Applied in examining all kinds of bottle lid, light cap etc. open and close torque. Installed conveniently and fast, and the maximal diameter can reach 200mm, enclosed USB serial port output, can carry out transfer the data to the computer for analysis, printing and so on related process.
Character
1:High accuracy, high stability, high resolution.
2:The sampling speed can be set.
3:The upper limit value and lower limit value can be set, has acousto-optic alarm device.
4:Lattice type liquid-crystal display, the backlight lamp can be set.
5:Torque direction identifies.
6:Three kinds of unit automatic conversion: N.m, Kg.cm, Lb.in.
7:Multi-peak values maintain.
8:Power source, electric quantity display and low electric quantity cue.
9:Close automatically under no-operation, the close time can be set.
10:Saves and prints 100 test data, delete at will.
11:Uses USB connect PC, test real-time, measure curve, and carries on processing to the data: such as prints, statistic. and so on.
Parameter| Type | With printer | ANL-P1 | ANL-P2 | ANL-P3 | ANL-P5 | ANL-P10 | ANL-P20 |
| Index | No printer | ANL-WP1 | ANL-WP2 | ANL-WP3 | ANL-WP5 | ANL-WP10 | ANL-WP20 |
Measuring range /
Division value | N·m | 1.0000/0.0001 | 2.0000/0.0001 | 3.0000/ | 5.0000/ | 10.000/ | 20.000/ |
| 0.0001 | 0.0001 | 0.001 | 0.001 |
| Kg·cm | 10.200/ | 20.400/ | 30.600/ | 51.000/ | 102.00/ | 204.00/ |
| 0.001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 |
| Lb·in | 8.850/ | 17.700/ | 26.550/ | 44.250/ | 88.50/ | 177.00/ |
| 0.001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 |
| Precision | ±1% |
| Peak Value Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
| Continuous using time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | 400mm×200mm×200mm |
| Net Weight | 12KG |
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |

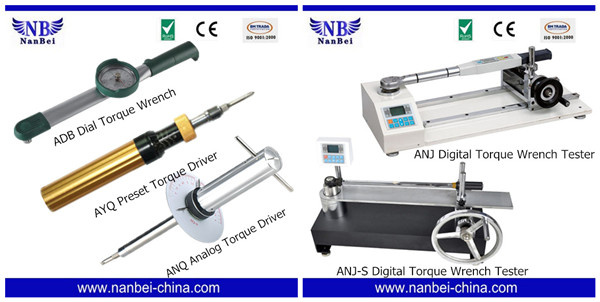

ADB Dial Torque Wrench
Instruction
ADB series is a new product of our company. It has some advantages such as hight precition,
attractive appearance, easy to use , strong stability,etc. It was widely apply to spaceflight, shipbuilding, railway,
automobile,electronic, engineering plant, etc. It's an essential tool for improving the quality of product.
Technical parameter| Model | ADB-5 | ADB-10 | ADB-30 | ADB-50 | ADB-100 |
Range
(N.m) | 1~5 | 2~10 | 5~30 | 10~50 | 20~100 |
| Precition | ±3% |
| Dimension (mm) | 345*77*58 | 395*77*60 |
| Weight (Kg) | 0.52 | 0.58 |
| Tenon Size | 3.3*6.3 | 9.5*9.5 | 12.7*12.7 |
ANQ Analog Torque Driver
Function
Dial Torque Driver is use for cars, autobike, machine, electronic and so on.
It is use for the torque of parts, easy to handle, easy to use, can keep long time.
It is a necessary tool to test the torque of maintain and check equipment set.
Products dimension
Long: 270(mm) Wide: 98(mm) High: 100(mm)
Use method
1. Before use, please zero to ensure the accuracy.
2. During use, this product must be keep vertical condition with the testing object; otherwise will reduce the accuracy and the service life of torque meter.
3. After use, please zero, facilitates the later use.
4. When zero, loosens the locknut on the torque, turns the dial, causes the indicator at zero position, and then tightens the locknut.
Attention
1:This products can't use as tool
2:This products have been calibrate, not need to open the back cover, or loose the screw, it will make error.
3:Don't put the products with ache, alkali and other causticity things together.
Parameter| Model | Capacity(N·m) | Accurate
(%) | Long
(mm) |
| ANQ-0.6 | 0.1-0.6 | 5% | 270 |
| ANQ-1.2 | 0.2-1.2 |
| ANQ-3 | 0.25-3 |
| ANQ-6 | 0.5-6 |
| ANQ-9 | 0.75-9 |
|
|
| ANQ-12 | 1-12 |
|
|
AYQ Preset Torque Driver
Overview
AYQ Idling torque screwdriver with torque requirements for tightening the screw fastening the workpiece.
Clockwise operation of the product,value can be pre- set torque.
Exceeds the set value screwdriver idling,priority control efforts can be threaded fastening.
Warning
1:Before use, please read this manual carefully;
2:This tool is special tool,In addition to the outer fastening screws,don't make it to use other;
3:Before use,please sure the tool are no damage, scratches,corrosion,etc.
4:Don't apply oil with hand part ,avoid to cause hand clip or injury in use.
5: In high places should be doing to prevent the tool measures falling,avoid crushing accidents caused by falling tools.
Specification| Type | AYQ-0.6 | AYQ-1.2 | AYQ-3 | AYQ-6 |
Torque range
(N.m) | 0.2~0.6 | 0.4~1.2 | 1~3 | 2~6 |
Division
value(N.m) | 0.02 | 0.02 | 0.05 | 0.1 |
| Precision | ±5% |
| Full size(mm) | 185 | 195 |
Handle
diameter(mm) | 38 | 45 |
Connection
size | 6.35 | 6.35 | 6.35 | 6.35 |
Suitable
fasteners | M2 | M3 | M4 | M5 |
|
ANJ-S Digital Torque Wrench Tester
Function
Digital Torque Wrench Tester(ANJ-S)is an intelligent multi-functional measuring instrument which is designed for testing torque wrench. It main used in testing and calibrating various kinds of Concentration type torque wrench, digital type torque wrench, preset type torque wrench, torsion screwdriver, screwdriver and all kinds of products involving tighten force instrument.
Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry and in scientific research and testing industry.
Feature
1.High precision, high resolution, quick sampling speed, full-screen display.
2.Adopting high precision torque sensor, with torque direction display.
3.Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4.Three units can be switched each other (N.m,kgf.cm,Lb.in).
5.Real-time, peak, automatic peak three models of optional switch.
6.Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7.Peak holding, remove automatically function, remove time to set freely.
8.Large storage, can save 1000 groups of test data.
9.Without automatic shutdown function, time can be set freely.
SpecificationsType
Index | ANJ-S-
50 | ANJ-S-
100 | ANJ-S-
200 | ANJ-S-
300 | ANJ-S-
500 | ANJ-S-
1000 | ANJ-S-
2000 | ANJ-S-
3000 | ANJ-S-
5000 |
Measuring
Range
/ Division
Value | N·m | 50.000
/0.001 | 100.00
/0.01 | 200.00
/0.01 | 300.00
/0.01 | 500.00
/0.01 | 1000.0
/0.1 | 2000.0/0.1 | 3000.0/0.1 | 5000.0/0.1 |
Kg·
cm | 510.52
/0.01 | 1021.0
/0.1 | 2042.0
/0.1 | 3063.1
/0.1 | 5105.2
/0.1 | 10210
/1 | 20420/1 | 30630/1 | 51051/1 |
Ib·
in | 443.11
/0.01 | 886.2
/0.1 | 1772.4
/0.1 | 2658.6
/0.1 | 4431.1
/0.1 | 8862
/1 | 17724/1 | 26586/1 | 44311/1 |
| Product size | 760mm×420mm×370mm | 1100mm×420mm×370mm |
The testing
length range | 150mm~670mm | 150mm~1010mm |
| Width stroke | 162mm | 162mm |
| Height stroke | 80mm |
| Precision | ±1% |
Peak Value
Sampling Frequency | 2000HZ |
| Power | 7.2V 1.2V×6 Ni-MH Battery group |
| Charging time | 4~6 hours |
| Continuous using time of battery | About 10 hours |
| Battery life | ≥300 times |
| Net Weight | 50Kg | 65Kg |
| Power adapter | Input:AC 180~240V 50/60HZ output:DC 12V 1000mA |
ANJ Digital Torque Wrench Tester
Function
Digital Torque Wrench Tester is an intelligent multi-functional measuring instrument which is designed for testing torque wrench.
It main used in testing and calibrating various kinds of Concentration type torque wrench, digital type torque wrench, preset type torque wrench, torsion screwdriver, screwdriver and all kinds of products involving tighten force instrument.
Widely used in electrical manufacturing, mechanical manufacturing,automotive light industry and in scientific research and testing industry.
Main feature
1. High precision, high resolution, quick sampling speed, full-screen display.
2. Adopting high precision torque sensor, with torque direction display.
3. Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4. Three units can be switched each other (N.m,kgf.cm,Lb.in).
5. Real-time, peak, automatic peak three models of optional switch.
6. Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7. Peak holding, remove automatically function, remove time to set freely.
8. Large storage, can save 99 groups of test data.
9. Without automatic shutdown function, time can be set freely.
Specification| Type | ANJ- 50 | ANJ- 100 | ANJ- 200 | ANJ- 300 | ANJ- 500 | ANJ- 1000 |
| Index |
| Measuring range / Division value | N·m | 50.000/0.001 | 100.00/0.01 | 200.00/0.01 | 300.00/0.01 | 500.00/0.01 | 1000.0/0.1 |
| Kg·cm | 510.52/0.01 | 1021.0/0.1 | 2042.0/0.1 | 3063.1/0.1 | 5105.2/0.1 | 10210/1 |
| Lb· in | 443.11/0.01 | 886.2/0.1 | 1772.4/0.1 | 2658.6/0.1 | 4431.1/0.1 | 88622/1 |
| Product Size | 700mm*320mm*240mm | 1120mm*450mm*230mm |
| Packing Size | 110*47*35cm | 130*60*35cm |
| The testing length range | 150mm~620mm | 150mm~820mm |
| Width stroke | 130mm | 200mm |
| Height stroke | 80mm |
| Precision | ±1% |
| Peak Value Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
| Continuous using time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Net Weight | 25KG | 56kg |
| Gross Weight | 32kg | 65kg |
| Power adapter | Input:AC 100-240V 50-60HZ Output:DC 10V 300mA |
ADN Dynamic Torque Tester
1, Measuring the height of sensor's diameter of axle and center, waiting.
2, Using two groups of coupling, installed the sensor between the power equipment and load.
3,Adjusted the center height and coaxiality of load, power equipment and sensors respectively, and then fixed it,and reliable fastening, are not allowed to have loosening.
4, You can choose the rigid or flexibility coupling. In the circumstances of great vibration or the coaxiality is larger than 0.05 mm, it's better to choose flexible couplings.
5, The installed mesa should have certain strength.
6, The coupling should rely on the shoulder in both ends of the sensor.
Special attention
1:The requirements of Installation environment:
2:Temperature: - 10 ºC~ 60 ºC3:Humidity: < 90% RH
4:No inflammable, explosive
5:When installation, don't knock and collide sensor.
6:Prohibit charged operation when installing.
7:The sensor is not waterproof, explosion-proof design, pay attention when using.
8:Avoid strong interference, and ensure the normal operation of the equipment.

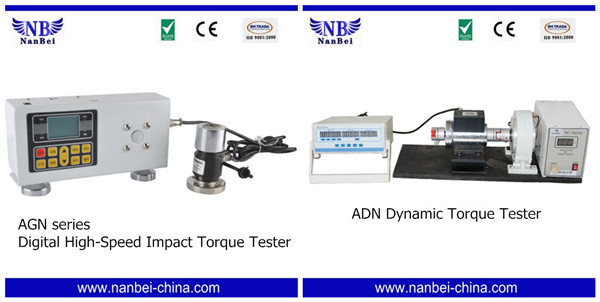

AGN Digital High-Speed Impact Torque Tester
Function
The high-speed impact torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of torque. It main used in testing and calibration various kinds of electric pneumatic screwdriver set, the torque of torque wrench, all kinds of products refer to testing of screw down force, parts torsion destructive testing etc.
With features of simple operation, high precision, easy to carry, complete functions etc. It's widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Main features
1:High precision, high resolution, quick sampling speed, full-screen display.
2: Adopting high precision torque sensor, with torque direction display
3:Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4:Three units can be switched each other (N.m, kgf.cm, Lb.in).
5: Real-time, peak, automatic peak three models of optional switch.
6:Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7: Peak holding, remove automatically function, remove time to set freely.
8: Large storage, can save 99 groups of test data.
9:Without automatic shutdown function, time can be set freely.
Parameter Type
Index | With printer | AGN-1P | AGN-2P | AGN-3P | AGN-5P | AGN-10P | AGN-20P |
| No printer | AGN-1 | AGN-2 | AGN-3 | AGN-5 | AGN-10 | AGN-20 |
Measuring range /
Division value | N·m | 1.0000/
0.0001 | 2.0000/
0.0001 | 3.0000/
0.0001 | 5.0000/
0.0001 | 10.000/
0.001 | 20.000/
0.001 |
| Kg·cm | 10.210/
0.001 | 20.421/
0.001 | 30.631/
0.001 | 51.052/
0.001 | 102.10/
0.01 | 204.21/
0.01 |
| Lb·in | 8.862/
0.001 | 17.724/
0.001 | 26.586/
0.001 | 44.311/
0.001 | 88.62/
0.01 | 177.24/
0.01 |
| Precision | ±1%F.S |
| Peak Value Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
| Continuous using time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:230mm×95mm×180mm
No printer:230mm×70mm×125mm |
| Net Weight | With printer:5KG No printer:3KG |
| Power adapter | Input:AC 110-220V 50HZ Output:DC 10V 300mA |
Type
Index | With printer | AGN-1000P | AGN-2000P | AGN-3000P | AGN-5000P |
| No printer | AGN-1000 | AGN-2000 | AGN-3000 | AGN-5000 |
Measuring range
/ Division value | N·m | 1000.0/0.1 | 2000.0/0.1 | 3000.0/0.1 | 5000.0/0.1 |
| Kg·cm | 10210/1 | 20420/1 | 30630/1 | 51051/1 |
| Lb·in | 88622/1 | 17724/1 | 26586/1 | 44311/1 |
| Precision | ±1%F.S |
| Peak Value Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
| Continuous using time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:Host display part 230mm×95mm×180mm
No printer:Host display part 230mm×70mm×125mm
|
| Net Weight | With printer:8.5KG No printer:6.5KG |
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |
Contact PersonMs.Angelina Wang
Mobile:0086-15890668062/0086-15136169519
Please feel free call me and email me.
We do not just sell equipment,we pay more attention to provide users with high quality service!
| Prod Model: |
ANL-5000P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Operation: |
Easy |
| Display: |
Digital Display |
| Dimension: |
230mm*95mm*180mm |
| Net Weight: |
36kg |
| Power: |
Battery Group 1.2V*7 |
| Measuring Range: |
5000n.M |
| Advantage: |
Factory Directly Sale |
| Warranty: |
3years |
ZHENGZHOU NANBEI INSTRUMENT EQUIPMENT Co., Ltd is affiliated to NANBEI INTERNATIONAL GROUP LIMITED. It is the famous integrated equipment supplier in Chinese equipment field. After years of development, it has become a research, development, production and sales as one of the independent legal personality persified technology group. The headquartered is in ZHENGZHOU (International Air Port Area), China. And it also has the office in Beijing, Shanghai, SHENZHEN, and HONGKANG China.
The main products: Lab instruments, life science equipment, ice machines, electrochemical analysis instruments, optical instruments, physical testing instruments and equipment, environment equipment/flow meter, industry-specific equipment, drug testing equipment, seeds, equipments, agriculture and food equipment, petroleum equipment, coal equipment, surveying instruments, construction equipment, road equipment, geological equipment, reagents supplies, weather instruments, medical equipment, environmental equipment, mining machinery, boilers and other products. Persified business model, professional technology, high-tech equipment, in the course of business with an excellent work ethic, excellent business reputation, high quality products and perfect after-sales service has won the trust and support. We are trying to set up the world' S major regions and service agents at the company is being in the Asia Pacific region Equipment Industry-leading brands.
The involved products of our company are throughout the universities, research institutes, factories and enterprises, chemical and pharmaceutical, medical, inspection, agriculture, food, super, metallurgical mining, construction, petroleum, roads and bridges and other industries, products with superior performance. Based on fast attentive service, great value, exports more than 120 countries and regions, out products are alike by domestic and foreign merchants. In the production process, we strictly enforce product manufacturing requirements. And we have established a complete quality management system, so the product quality has a reliable guarantee.
We honestly recruit the majority of overseas agents and dealers, who are interested please contact us!
