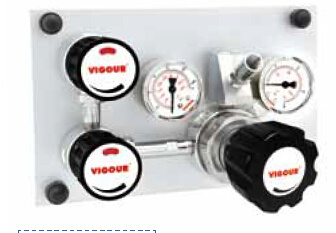

Pressure control panel
Brass chrome plated body for non-corrosive gases
and mixtures up to grade 6.0
Modular design
Diaphragm type shut-off valves
Tested for use with oxygen
Suitable for inlet pressure up to 300 b ar
Easy installation into safety cabinet for gas cylinders
Typical Applications:
Component Testing
Calibration Systems
Laboratory Pressure Control
High Pressure Sampling Systems
Service & Test Equipment
Type: single-stage
Inlet pressure P1 : max. 300 bar
Outlet pressure P2: 2/4/10/20/35/50 bar
Materials:
Body regulator
and valves:
Valve seat (regulator): PCTFE
(shut- off valve): PCTFE(VDV30)
PEEK(VDV1)
Diaphragm (regulator):
(valve):
Hastelloy® C276
Elgiloy®
Filter: SS 316L
Temperature range: -30oC to +74oC
Leak rate: ( t o atmosphere) 1x10-8mbar I/s He
(via seat) 1x10-6mbar I/s He
Weight: 3.5 kg
