Product Specifications
| Prod Model: |
xruv |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body---Material Quality: |
Ss 304 or Cast Iron |
| Rotor-Material Quality: |
Ss 304 or Cast Iorn |
| Screen Basket--Materail Quality: |
Ss 304 or Ss 316 or Ss 316L |
| Cover--Material Quality: |
Ss 304 or Cast Iorn |
| Screen Basket--Type: |
Hole Type or Slot Type |
| Inlet Consistency: |
0.3---1.5% |
| Inlet Pressure: |
0.1--- 0.4 MPa |
| National Patent: |
200730016534.4 |
| Process: |
Pulping Machine |
| Usage: |
Screening Pulp |
Product Description

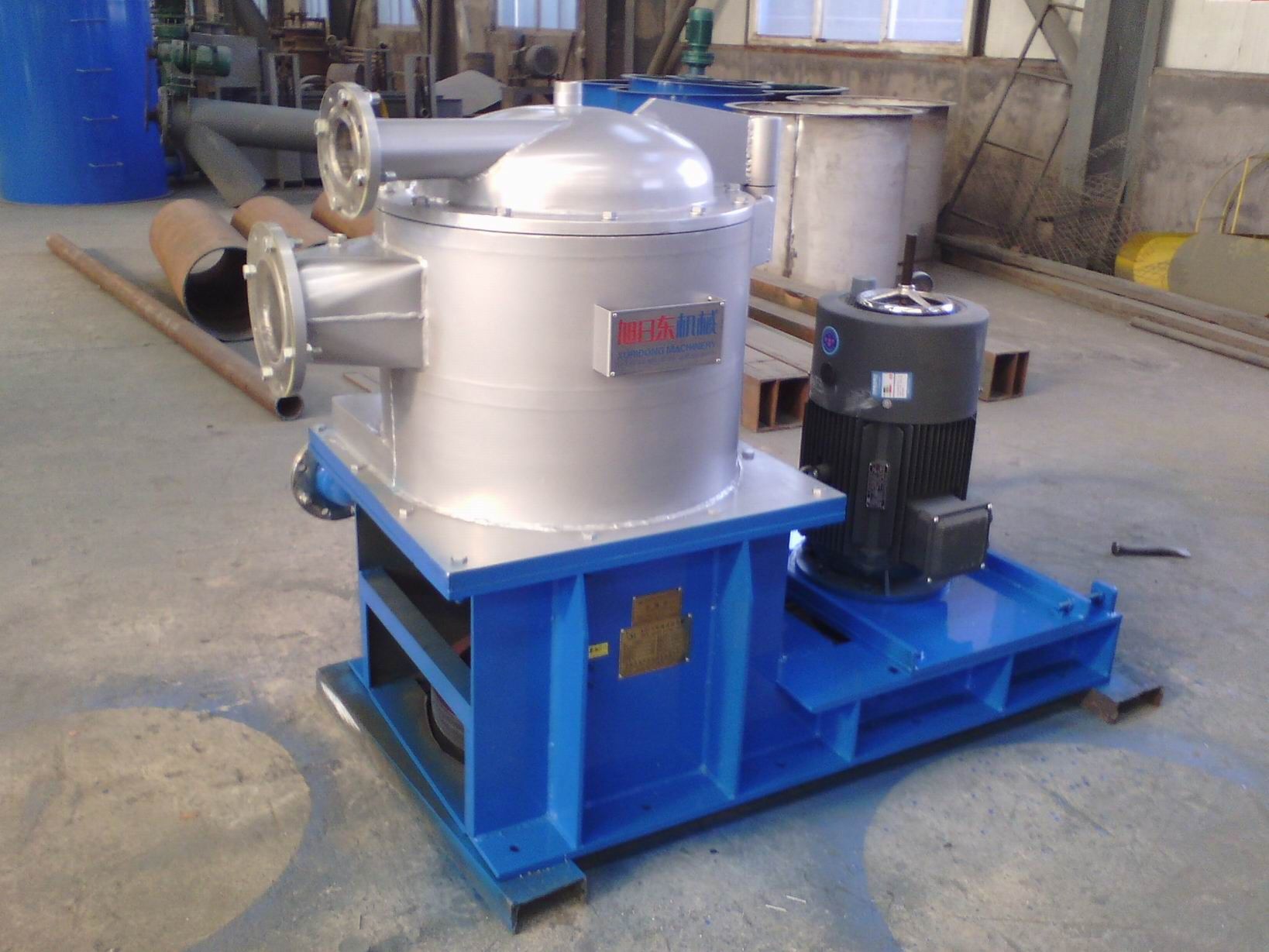

Professional supplier of Upflow Pressure Screen
？
Specifications？
1.？Be suitable for screening system
2. Separate heavy and light impurities？
3. National patent no.: 200730016534.4
4. High pulse？
Application
The machine can screen waste paper pulp roughly or finely.？
The machine can be used in pulp making section or before head box section.？
The screen basket is hole type or slot type.？
Feature
？It is a？kind of new-type recycled paper pulp screen equipment, designed for promoting the up-flow structure aiming at the characteristic of the impurity in the recycled paper pulp.？
In the machine, the up-flow structure is applied, where pulp is enters from the bottom, and weight dregs are discharged from the bottom and light dregs are discharged from the top.？
It can apply to various kinds of coarse screen and precise screen of waste paper and also screen before paper machine net extensively.？
|
Model |
XRUV0.3 |
XRUV0.6 |
XRUV0.8 |
XRUV1.2 |
XRUV1.5 |
XRUV2.0 |
XRUV2.5 |
XRUV3.0 |
XRUV4.0 |
|
Screen hole diameter (mm) |
φ1.1-φ5 |
|
Screen slot width (mm) |
H0.15-1 |
|
Screen area (m2) |
0.3 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.5 |
3.0 |
40 |
|
Screen basket specification |
φ407×258 |
φ600×311 |
φ600×425 |
φ600×637 |
φ600×800 |
φ756×836 |
φ756×1048 |
φ800×1200 |
φ900×1420 |
|
Inlet consistency (%) |
0.3-1.2 |
|
Inlet pressure (mpa) |
0.1-0.4 |
|
Pressure drop (mpa) |
0.02-0.03 |
|
Capacity (t/d) |
10-15 |
30-37 |
30-60 |
40-80 |
60-120 |
80-150 |
100-200 |
120-260 |
150-300 |
|
Power of motor (kw) |
22 |
30-37 |
37-45 |
55 |
75 |
90-110 |
110-132 |
132-160 |
160-185 |
Shandong Xuridong Machinery Co., Ltd. is a high and new technology industry with scientific research and development, and a combined unit of manufacturer and trader; It was established in 2001, located in Middle of Longyuan Road, Zhucheng, Weifang, Shandong, China.
The workshops occupy an area of around 10, 000 square meters. The company has it own "ZHIYUAN" brand. It passed ISO 9001: 2008 certification in 2013, and "SGS" certification in 2014, and obtained 33 utility model patent and 5 design paten certificates for its pulp and paper making machines, and waste water treatment machines.
The main products include pulping equipment, paper making equipments, waste water treatment equipments, and FPMS cleaning pulping equipments.
The products are sold widely domestic and all over the world, and the company has successful foreign business in South Asia, Southeast Asia, Europe, North and South America, and Africa. The company has got good reputation and good international brand.
Hope to cooperate with you as soon as possible!
