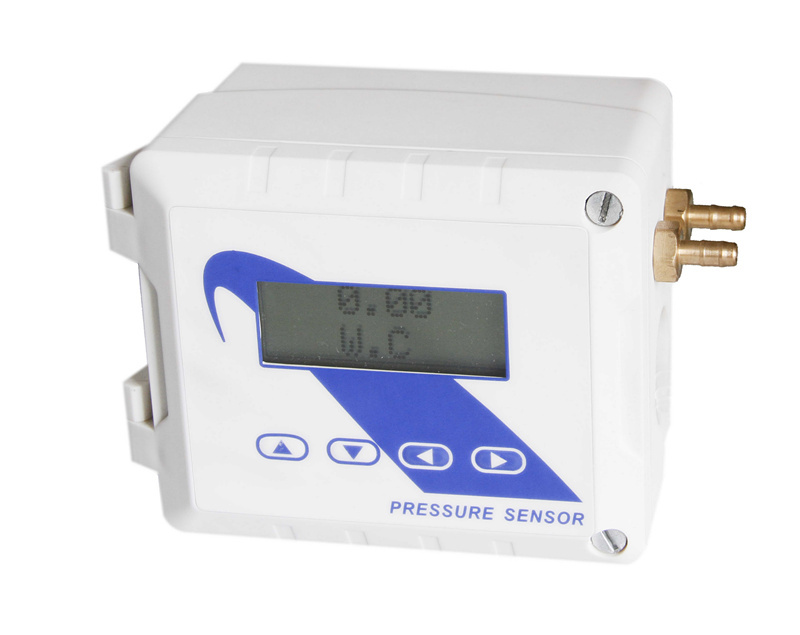

Pressure Sensor

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description


       The Pressure Monitor is used to measure differential pressure in the range of +/-8" wc, +/-10" wc,0 ~100 PSI,0~250 PSI.It combines precision, high sensitivity silicon sensing capabilities and the latest ASIC technology to substantially reduce offset errors due to changes in temperature, stability to warm up, long term instability and position sensitivity.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Features
     -LCD to display the pressure value
     -Field-selectable output signal types
     -On-board auto-zero function
     -Two optional output : PID control type and transducer type
     -Analog outputs can be set to 0-5V, 0-10V or 4-20ma
     -Read & write the sensor values using Modbus
     -Burst Pressure from 5-250 PSI
     -8 units available: inWC, inHg, mmHg, PSI, atm, Bar, Pa, & kg/cm2
     -2.5% Typical Error over +10°C to +60°C with Auto Zero
     -6.25% Maxmum Error over +10°C to +60°C without Auto Zero
     -Jumper selectable outputs

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Types and Prices

Part Number	Description	Price
PS-8-0-0	Pressure sensor, with LCD Display, +/-8 inWC, dry air medium, 1/4in Barbed.	$90.00
PS-8-0-1	Pressure sensor, with LCD Display, +/-8 inWC, dry air medium, 1/8 NPT.	$90.00
PS-10-0-0	Pressure sensor, with LCD Display, +/-10 inWC, dry air medium, 1/4in Barbed.	$90.00
PS-10-0-1	Pressure sensor, with LCD Display, +/-10 inWC, dry air medium, 1/8 NPT.	$90.00
PS-100-1-0	Pressure sensor, with LCD Display, 0~100 PSI, air or water medium, 1/4in Barbed.	$90.00
PS-100-1-1	Pressure sensor, with LCD Display, 0~100 PSI, air or water medium, 1/8 NPT.	$90.00
PS-250-1-0	Pressure sensor, with LCD Display, 0~250 PSI, air or water medium, 1/4in Barbed.	$120.00
PS-250-1-1	Pressure sensor, with LCD Display, 0~250 PSI, air or water medium, 1/8 NPT.	$120.00

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Specifications:

Supply Voltage	12~24VAC/DC +10%
Power  Consumption	50mA@12VDC
Relay Contacts Rating	0.5A/125VAC, 1A/24VDC
Analog Output	Analog Outputs: 0-5V, 0-10V, 4-20mA
	Operating Temperature	Accuracy	Burst Pressure
PS-8-0	10 ~ 60ºC (50 ~ 140ºF)	+/-2.5% full scale	5PSI
PS-10-0	-10 ~ +85ºC (-50 ~ 185ºF)	+/-1% full scale	30inWC
PS-100-1	-40 ~ +85ºC (-40 ~ 185ºF)	+/-0.5% full scale	200PSI
PS-250-1	-40 ~ +85ºC (-40 ~ 185 ºF)	+/-0.5% full scale	500PSI
PS-100-1, PS-250-1 Wetted Parts: Silicon, should only be in contact with media such as water
Enclosure	Flammability rating UL 94V0 file E194560
