Pressure Switch/Pressure Sensor Bc-P-25 Series
Product Specifications
| Prod Model: |
BC-P-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
LED/LCD |
| Weight: |
Approx. 102g(with 2 Meter Lead Wire) |
Product Description

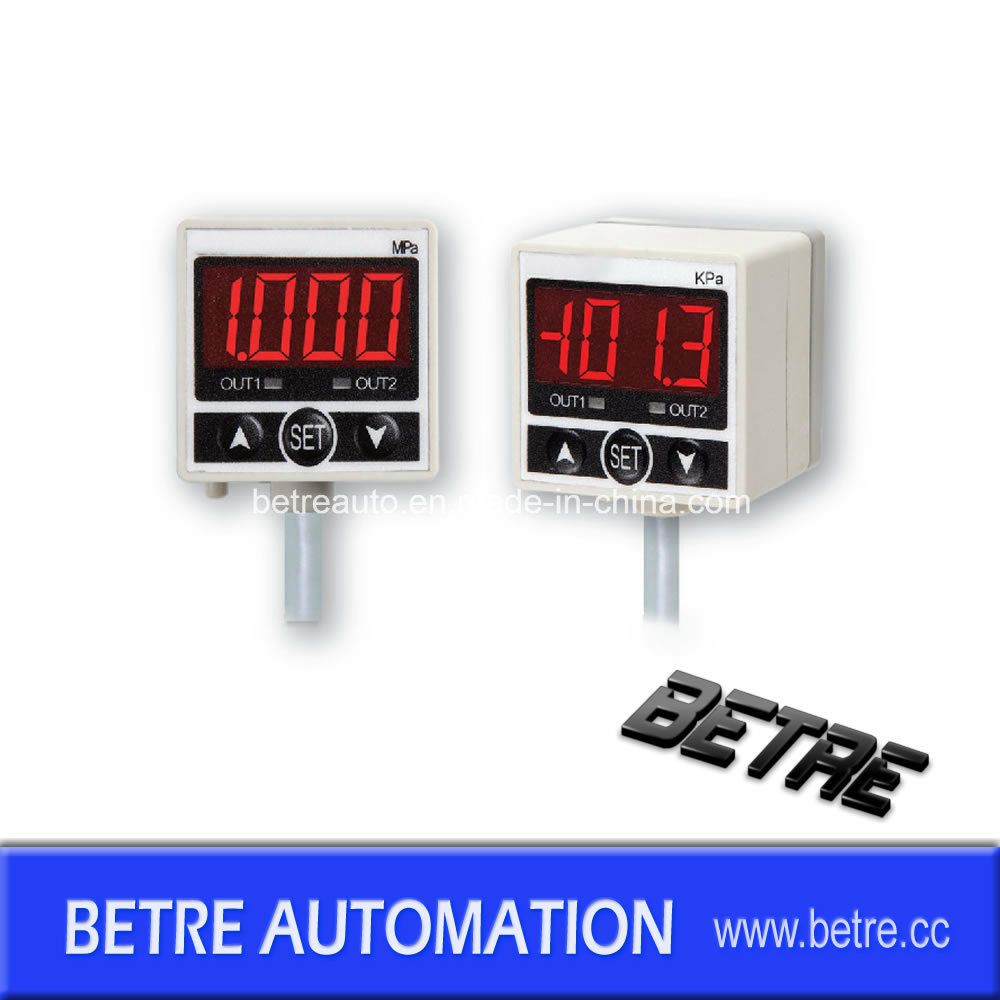

Pressure Switch/Pressure Sensor BC-P-25 Series
Used for pneumatic cylinders.
Features
1. Setting pressure range: Compound(-100.0~100.0kPa)
Vacuum (10.0~-101.3kPa)
Positive (-0.100~1.000MPa)
2. 2 outputs & analog output(1~5V)
3. Hysteresis adjustable
4. Programmable pressure unit: kPa,MPa,kgf/cm²,bar,psi, inHg,mmHg,mmH2O
5. IP65 enclosure
Installation
1.This product has two inlet pressure ports, select the one most convenient for installation.
2.Please plug the unused inlet port with supplied port plug. Use seal tage to prevent pressure leak.
Specifications
| MODEL | BCP25C | BCP25V | BCP25P |
| (Compound) | (Vacuum) | (Positive) |
| Display pressure range | -100.0~100.0kPa | 0.0~ -101.3kPa | 0.000~1.000MPa |
| Setting pressure range | -100.0~100.1kPa | 10.0~ -101.3kPa | -0.100~1.000MPa |
| Withstand pressure | 300 kPa | 1.5MPa |
| Fluid | Filtered air,Non-corrosive/Non-flammable gas |
| Set pressure resolution | kPa | 0.1 | - |
| MPa | - | 0.001 |
| kgf/cm² | 0.001 | 0.01 |
| bar | 0.001 | 0.01 |
| psi | 0.01 | 0.1 |
| inHg | 0.1 | - |
| mmHg | 1 | - |
| mmH2O | 0.1 | - |
| Power supply voltage | 12 to 24V DC ±10%, Ripple(P-P)10% or less |
| Current consumption | ≤ 55mA |
| Switch output | NPN: open collector 2 outputs PNP: open collector 2 outputs Ma. Load current: 80mA Residual voltage: ≤ 1V Max. supply voltage: 30V DC Max. supply voltage: 24V DC |
|
|
|
| Repeatability(Switch output) | ±0.2% F.S.±1 digit |
| Hysteresis | Hysteresis mode | Adjustable |
| Window comparator mode | Fixed (3 digits) |
| Response time | ≤ 2.5ms(chattering-proof function: 24ms,192ms and 768ms selectable) |
| Output short circuit protection | Yes |
| 7 segment LED display | 3 ½ digit LED display(Sampling rate:5 times/1sec.) |
|
| Indicator accuracy | ±2% F.S. ±1 digit(ambient temperature:25±3ºC) |
| Indicator | OUT1=Green, OUT2=Red |
| Analog output (Only type BCP25-01-, BCP25-03-) | Output voltage:1 to 5V±5% F.S.(within rated pressure range) Linearity:±1% F.S. | Output voltage:1 to 5V±2.5% F.S. (within rated pressure range) Linearity:±2% F.S. |
|
|
|
| Enclosure | IP65 |
| Ambient temp. range | Operation:0~50ºC,Storage:-20~60ºC (No condensation or freezing) |
| Ambient humidity range | Operation/Storage:35~85%RH (No condensation) |
| Withstand voltage | 1000V AC in 1-min(between case and lead wire) |
| Insulation resistance | 50MΩ(at 500V DC,between case and lead wire) |
| Vibration | Total amplitude 1.5mm, 10Hz-55Hz-10Hz scan for 1 minute, 2 hours each direction of X,Y and Z |
|
| Shock | 980m/s²(100G),3 times each is direction of X,Y and Z |
| Temperature characteristic | ±2% F.S. of detected pressure(25ºC) at temp. Range of 0~50ºC |
| Port size | F1:Rc1/8"; F2:NPT1/8"; F3:G1/8"(BSPP) |
| Lead wire | Oil-resistance cable(0.15mm²) |
| Weight | Approx. 102g(with 2 meter lead wire),Approx. 68g(with M8 4Pin male connector) |
|
