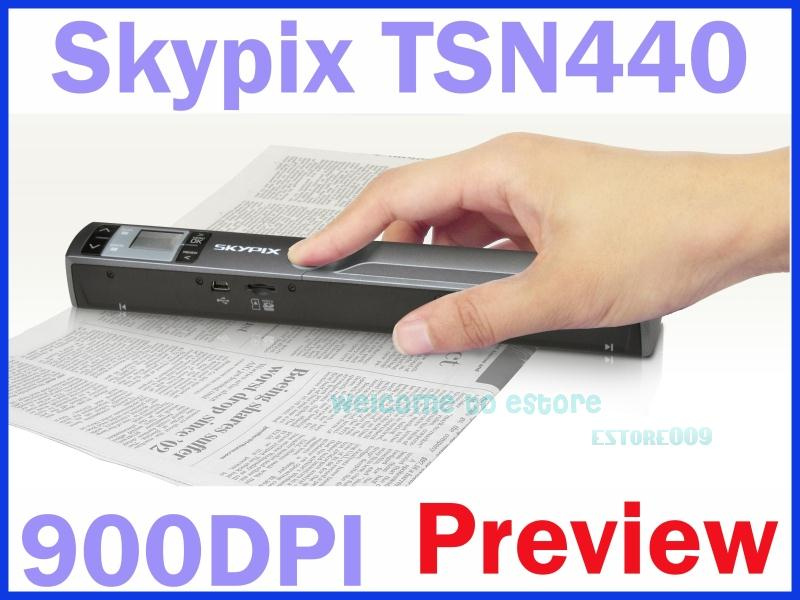

Preview 900DPI Portable Handheld Scanner (TSN440)

Product Specifications

Prod Model:	TSN440
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

TSN440 is the newest handheld scanner from Skypix. Comparing with the old type TSN410, there are 3 feature:

1, The best DPI is 900, not 600, the higher DPI can bring better Photos.
2, It comes with preview and delete function in the scanner itself. After you scan the files, you can preview or delete the file in the scanner itself. This function is very usefull.
3, You can scan and save the file as both PDF and JPEG file.

Specification
Image sensor
Color Contact Image Sensor
Resolution
Fine resolution: 900 dpi
High resolution: 600 dpi
Low resolution: 300 dpi(default)
File format
JPG(default)/PDF
Maximum scanning
Speed (A4 size/JPG or PDF)
Fine resolution with color>11s
Fine resolution with mono>9s
High resolution with color>6s,
High resolution with mono >6s;
Low resolution with color>3s,
Low resolution with mono>2s;
Capacity (Based on
1GB microSD card.
Scan A4 size file,
The quantity of scans
Varies depending on
The content complexity)
900dpi color: 200PCS/JPG or PDF (Min. )
900dpi mono: 220PCS/JPG or PDF (Min. )
600dpi color: 440PCS/JPG or PDF (Min. )
600dpi mono: 480PCS/JPG or PDF (Min. )
300dpi color: 1300PCS/JPG or PDF (Min. )
300dpi mono: 1500PCS/JPG or PDF (Min. )
Scan width
Approx. 8.35"
Approx. Scan length(the length varies depending on
The content complexity)
300DPI: 98"(Max), 600DPI: 45"(Max) 900DPI: 35"(Max)
File format
JPG/PDF
LCD
Scanning status display
Auto Power Off
1mins, 3mins (default), 5mins, off,
USB Port
USB 2.0 high speed
External memory
MicroSD Card
Standard Battery
2XAA alkaline batteries

Some detailed information about how to set the scanner
5.3.2 JPG/PDF select
1. Press [MENU] button to enter MENU setting mode
2. Press UP/DOWN buttons to select JPG/PDF
3. Press [OK] to enter format mode
4. Press UP/DOWN to select options: JPG or PDF_Letter, PDF_A4
5. Press [OK] to confirmFile format will be saved and will exit to return to the previous Menu Setup screen
5.3.3 Color setting
Press [MENU] button to enter MENU setting mode
Press UP/DOWN buttons to select COLOR
Press [OK] to enter color mode
Press UP/DOWN to select options: Color or mono
Press [OK] to confirm
File format will be saved and will exit to return to the previous Menu Setup screen
5.3.4 TIME setting
Press [MENU] button to enter MENU Setup
Press UP/DOWN buttons to select TIME SETUP
Press [OK] to enter TIME SETUP mode
Press UP/DOWN buttons to set the YEAR
Press [OK] to set the MONTH DAY HOUR MINUTES SECONDS
After setting the date and time, press [OK] to save and exit to return to the previous Menu Setup screen
5.3.5 AUTO POWER OFF setting
Press [MENU] button to enter MENU Setup
Press UP/DOWN buttons to select AUTO POWER OFF
Press [OK] to enter AUTO POWER OFF mode
Press UP/DOWN buttons to select options: 1Min/ 3Min/ 5Min/Off
Press [OK] to confirm
AUTO POWER OFF setting will be saved and will exit to return to the previous Menu Setup screen
5.3.5 DEFAULT Setting
Press [MENU] button to enter MENU Setup
Press UP/DOWN buttons to select DEFAULT
Press [OK] to enter DEFAULT mode
Press UP/DOWN buttons to select DEFAULT options: Yes/No
Press [OK] to confirm
DEFAULT setting will be saved and will exit to return to the previous Menu Setup screen
5.3.6 FORMAT the microSD memory card
Note: All contents on the microSD card will be erased during formatting.
Insert a microSD card into the scanner with metal side facing upwards
Press [MENU] button to enter MENU Setup
Press UP/DOWN buttons to select FORMAT
Press [OK] to enter FORMAT mode
Press UP/DOWN buttons to select FORMAT options
A. YES: To FORMAT and erase contents in microSD card
B. NO: To exit FORMAT mode and return to previous Menu setup screen
Press [OK] to confirm selection and return to Menu Setup screen
5.3.7 DELETE FILE setting
Press [MENU] button to enter MENU Setup
Press UP/DOWN buttons to select DELETE FILE
Press [OK] to enter DELETE FILE mode
Press UP/DOWN buttons to select DELETE FILE option
