Supplier: | Global Prospect Scien-Tech Inc. (Zhejiang) |
---|---|
Price: | Negotiable/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,CIF,EXW |
![]() |
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
---|---|
Laminate Thickness: | 1.6mm |

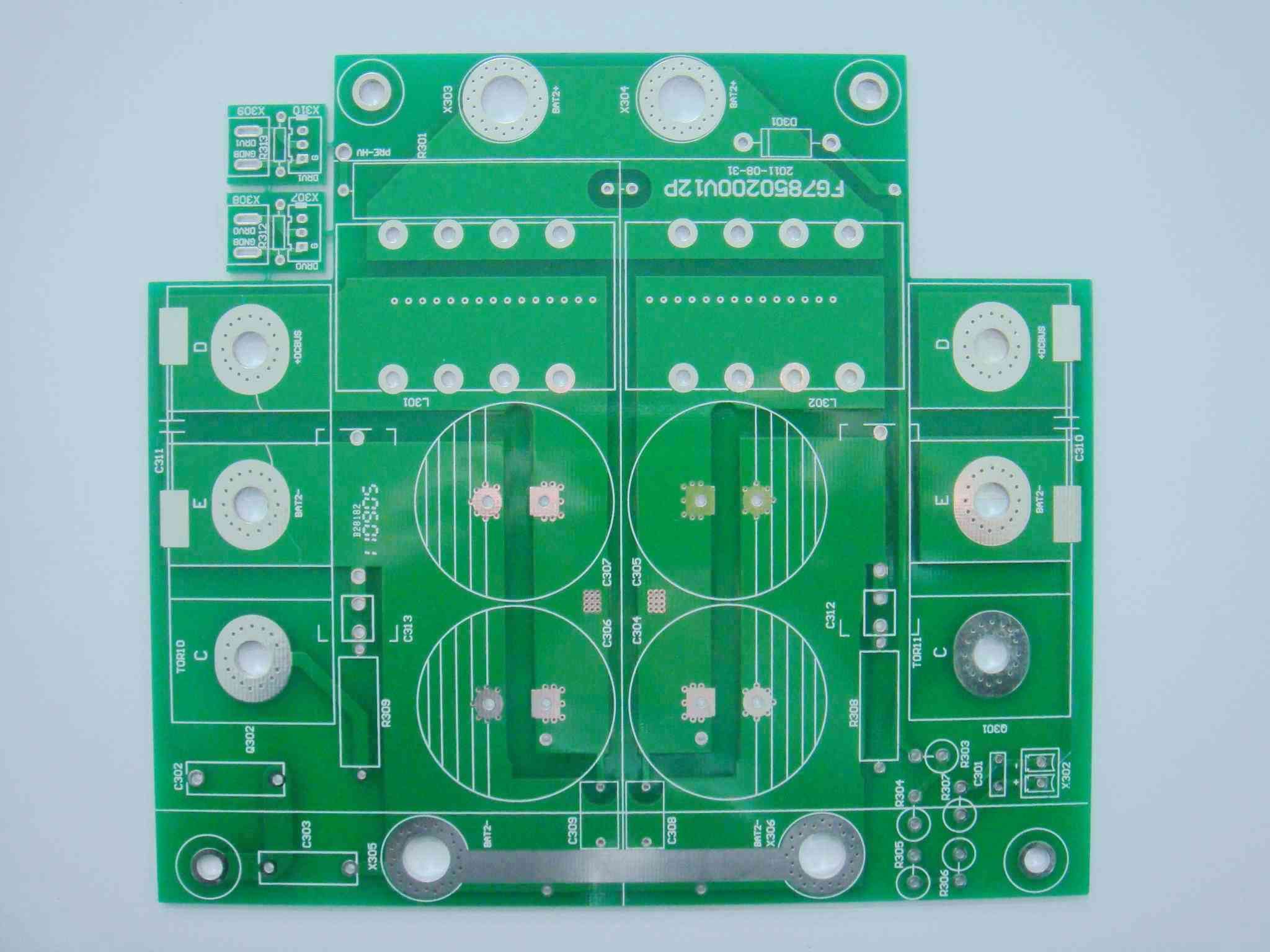

Structure: | Double-Sided Rigid PCB |
Production Process: | Subtractive Process |
Material: | Polyester Glass Fiber Mat Laminate |
| |||||||
MANUFACTURING CAPABILITY | ITEMS | PARAMETER | |||||
Mechanical | 1 | Material | FR-4, CEM-1, CEM-3, Aluminium Based, Halogen Free | ||||
2 | Layers | 1, 2, 4, | |||||
3 | Board Thickness | 0.8mm-3.2mm | |||||
4 | Min PTH Size | 0.25mm±0.075mm | |||||
5 | Min NPTH Size | 0.2mm±0.05mm | |||||
Artwork | 1 | Min Conductor Width | 0.1mm/4mil | ||||
2 | Min Conductor Space | 0.1mm/4mil | |||||
3 | Min Pad Size | 0.1mm/4mil | |||||
4 | Hole Copper Thickness | ≥20um or as required | |||||
5 | Profile | Routing, Punching, V-Cut,Chamfer | |||||
6 | Chamfer Angle | 30 45 60 | |||||
7 | Warp & Wrist | ≤0.7% | |||||
Soldering mask | 1 | Availbal Colors | Green, Blue, Red, White, Black | ||||
2 | Peelable Solder Mask | Available | |||||
3 | Thickness | ≥10um or as required | |||||
Silkscreen | 1 | Availbal Colors | Green, Blue, Red, White, Black | ||||
2 | Min Silkscreen Line Width | 0.15mm | |||||
Finishing | 1 | HASL | 1um-40um | ||||
2 | Lead-free HASL | 1um-40um | |||||
3 | Immersion gold over nickel | Ni: 150um-300um Au: 1u" -3u" | |||||
4 | Hard Gold Plating | Ni: 150um-300um Au: 0.5um-3um | |||||
5 | OSP | 0.2um-0.5um | |||||
6 | Carbon Ink Printing | ||||||
7 | Golder Finger | ||||||
Tolerence | 1 | Outline Tolerance | ±0.1mm -- ±0.125mm | ||||
2 | Hole Diameter Tolerance | PTH: ±0.075mm NPTH: ±0.05mm | |||||
3 | Hole Location Tolerance | ±0.1mm | |||||
