Printed Circuit Board

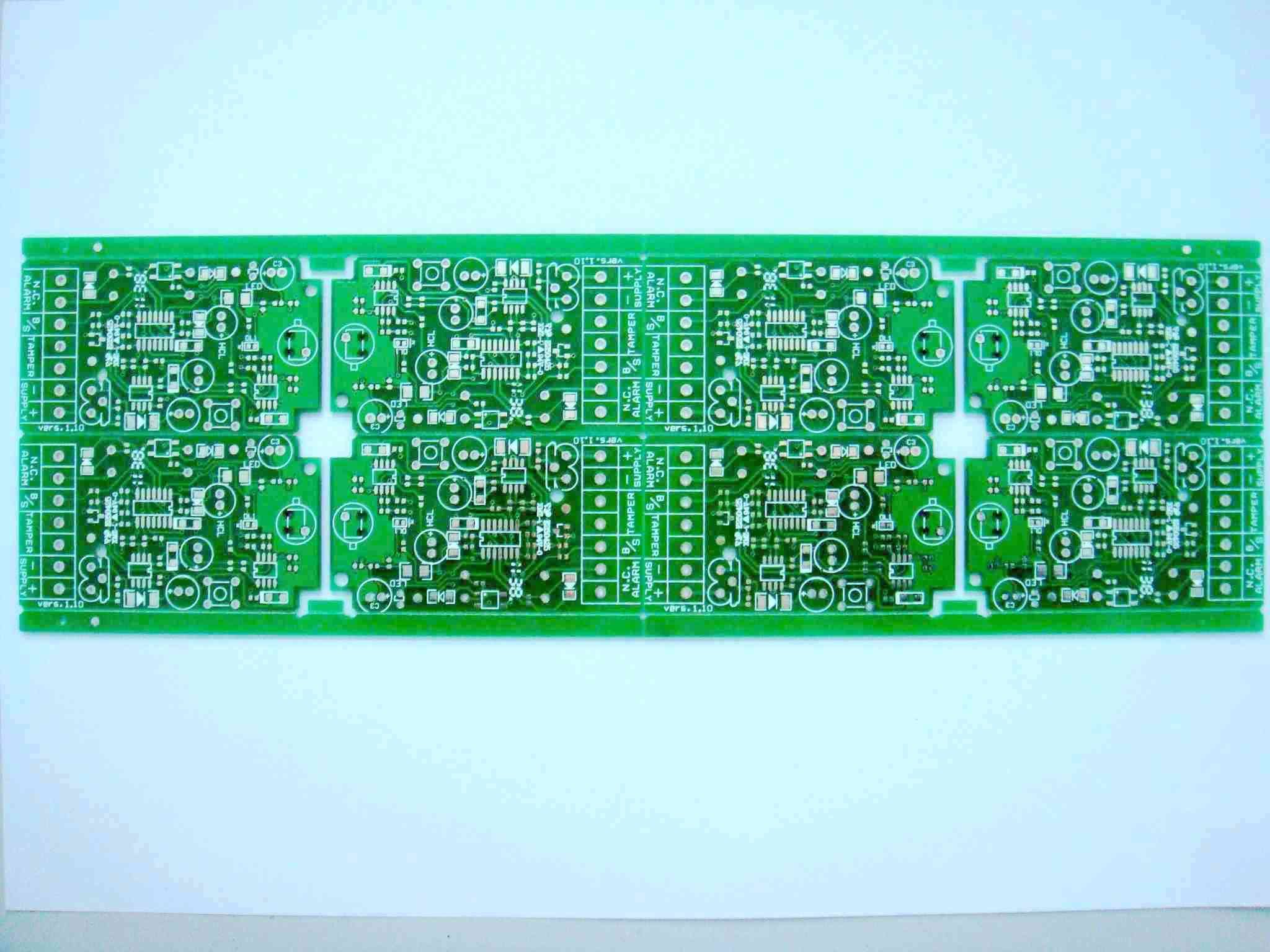

Name: Printed Circuit Board
Brand: china-manufacturer-directory.com
SKU: 713426495
Availability: InStock
Rating: 4.7 (128 reviews)

Supplier:	Global Prospect Scien-Tech Inc. (Zhejiang)
Price:	US $ 0.1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laminate Thickness:	1.2mm
Structure:	Double-Sided Rigid PCB
Production Process:	Subtractive Process
Material:	Polyester Glass Fiber Mat Laminate

Product Description

Specification:

1. Laminate: FR-4, Anti-CAF, 1.6mm, 1/1 OZ
2. Surface Finish: Lead-free HASL
3. Profile Finsh: CNC Routing
4. Packing; Auto-Vacumme

Produce Tech and Management System:

1. Under UL Tech and Comply with RoHS Standard.
2. Under ISO9001: 2008 & TS16949: 2009 Quality Management.

Global Prospect Scien-Tech Inc. (Zhejiang)
MANUFACTURING CAPABILITY	ITEMS		PARAMETER
Mechanical	1	Material	FR-4, CEM-1, CEM-3, Aluminium Based, Halogen Free
	2	Layers	1, 2 ( Main Products) 4
	3	Board Thickness	0.6mm-2.0mm
	4	Min PTH Size	0.25mm±0.075mm
	5	Min NPTH Size	0.2mm±0.05mm
Artwork	1	Min Conductor Width	0.1mm/4mil
	2	Min Conductor Space	0.1mm/4mil
	3	Min Pad Size	0.1mm/4mil
	4	Hole Copper Thickness	≥20um or as required
	5	Profile	Routing, Punching, V-Cut,Chamfer
	6	Chamfer Angle
	7	Warp & Wrist	≤0.7%
Soldering mask	1	Availbal Colors	Green, Blue, Red, White, Black
	2	Peelable Solder Mask	Available
	3	Thickness	≥10um or as required
Silkscreen	1	Availbal Colors	Green, Blue, Red, White, Black
Silkscreen	2	Min Silkscreen Line Width	0.15mm
Finishing	1	HASL	1um-40um
	2	Lead-free HASL	1um-40um
	3	Immersion gold over nickel	Ni: 150um-300um Au: 1u" -3u"
	4	Hard Gold Plating	Ni: 150um-300um Au: 0.5um-3um
	5	OSP	0.2um-0.5um
	6	Carbon Ink Printing
	7	Golder Finger
Tolerence	1	Outline Tolerance	±0.1mm
	2	Hole Diameter Tolerance	PTH: ±0.075mm NPTH: ±0.05mm
	3	Hole Location Tolerance	±0.1mm

Introduction

Global Prospect Scien-Tech Inc. (Zhejiang) established in Wenzhou, China...

Total investment in factory and equipments: Over RMB 360million.

We will provide you best PCB and service.

History

1. Year 2001: Established in Wenzhou China.

2. Year 2005: Build a New Factory with 15, 000 Square Meters.

Boost our produce capability to 40, 000m² /Month.

Belief

Better Products, Better World

We focus on PCB manufacturing, especially on Double-Side PCB.

Certificates

1. In 2004, we gained UL Accreditation. Our UL file No: E250425

2. In 2004, we were awarded RoHS Compliant Report

3. In 2010, we were awarded ISO 9001: 2008 and TS16949: 2009

4. We are the President Unit of PCB in Wenzhou CPCA

5. We are the Vice-President unit of CPCA (China Printed Circuit Association) in China.

Our Mission

1. To increase customer' S products' Value by providing Best Quality and

Best Solution.

2. To let people around us have Better Products and makes our World Better.

Global Prospect Scien-Tech Inc. (Zhejiang) sincerely welcome you to join with us and make joint efforts to compose a new win-win chapter together.
